Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount strut bracket (2) to the transmission.

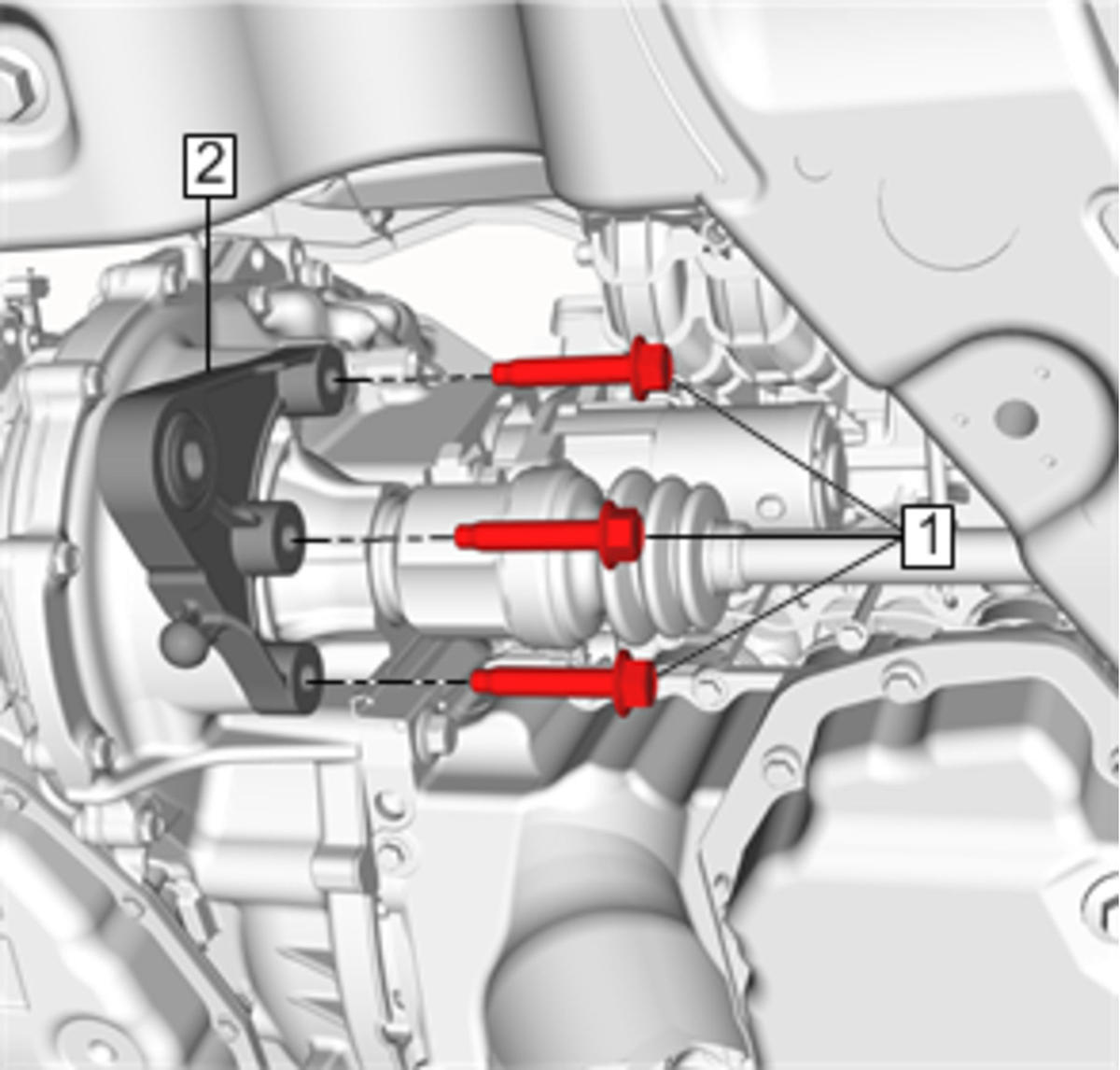

    Fig 1: Transmission Mount Strut Bracket And Bolts
    GM4113893Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW transmission mount strut bracket bolts (1) and tighten to 100 N.m (74 lb ft) + 60 - 75 degrees.
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  3. Install the NEW transmission mount strut front bolt (1) and tighten to 100 N.m (74 lb ft) + 60 - 75 degrees.

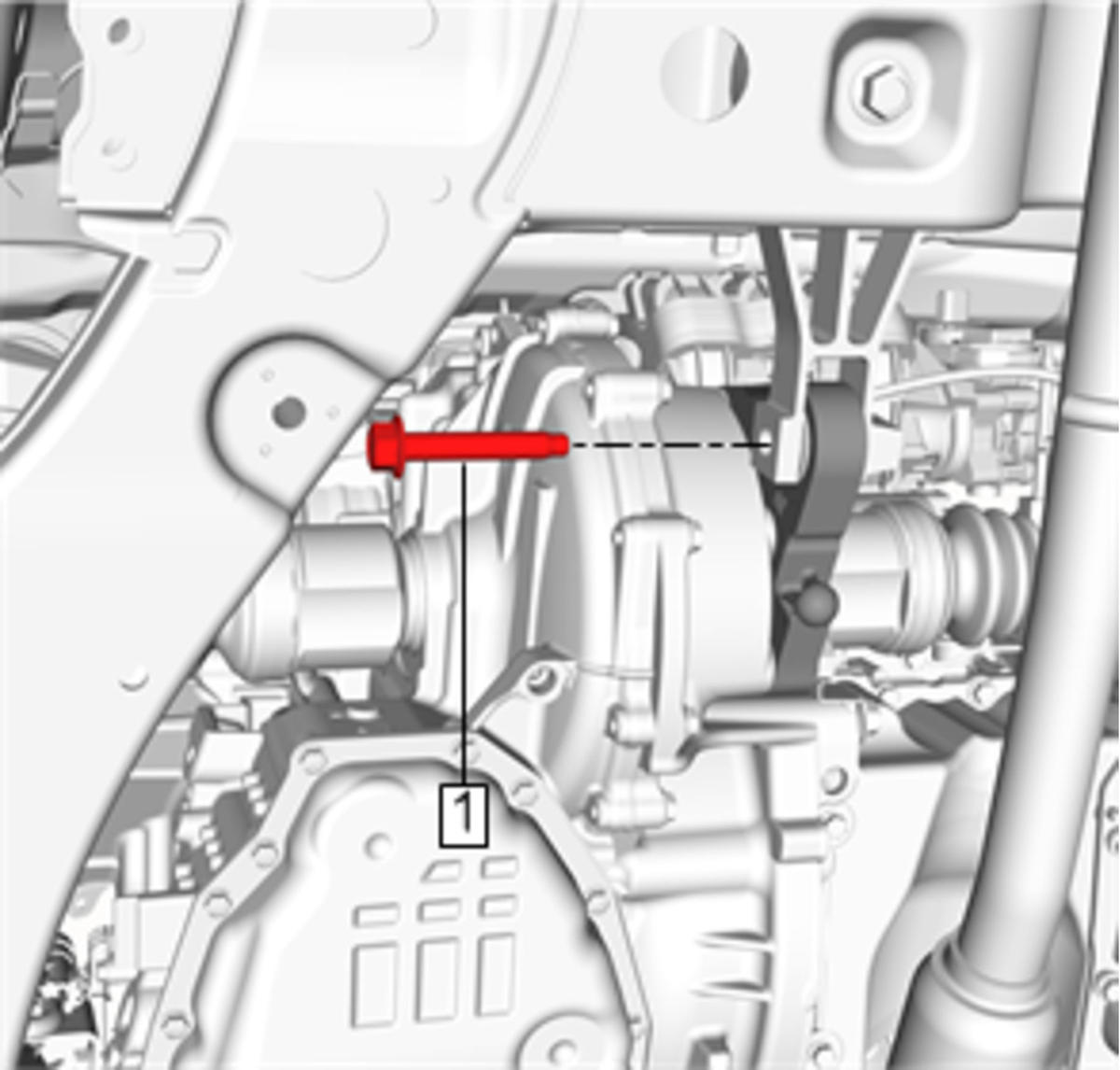

    Fig 2: Transmission Mount Strut Front Bolt
    GM4113891Courtesy of GENERAL MOTORS COMPANY
  4. Remove the jack stand.
  5. Lower the vehicle.
