Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount bracket (2) to the transmission.

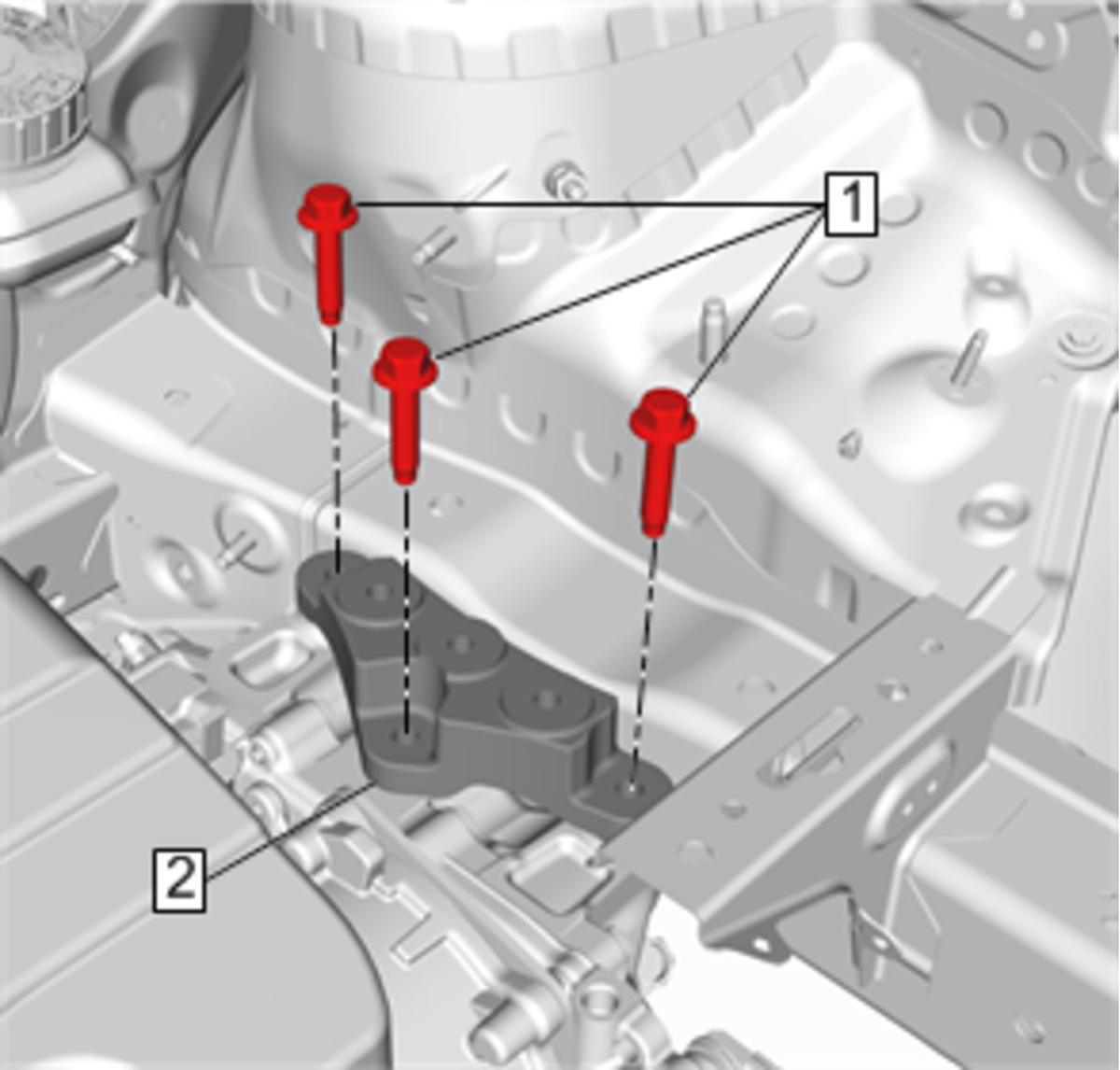

    Fig 1: Transmission Mount Bracket Bolts
    GM4224177Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW transmission mount bracket bolts (1) and tighten to 58 N.m (43 lb ft) + 60 to 75 degrees.
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission mount. Refer to Transmission Mount Replacement - Left Side .
  4. Install the engine support fixture. Refer to Engine Support Fixture (LV7)Engine Support Fixture (L5Q) .
  5. Install the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
  6. Install the engine control module. Refer to Engine Control Module Replacement .
  7. Install the battery. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
