Transmission Control Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

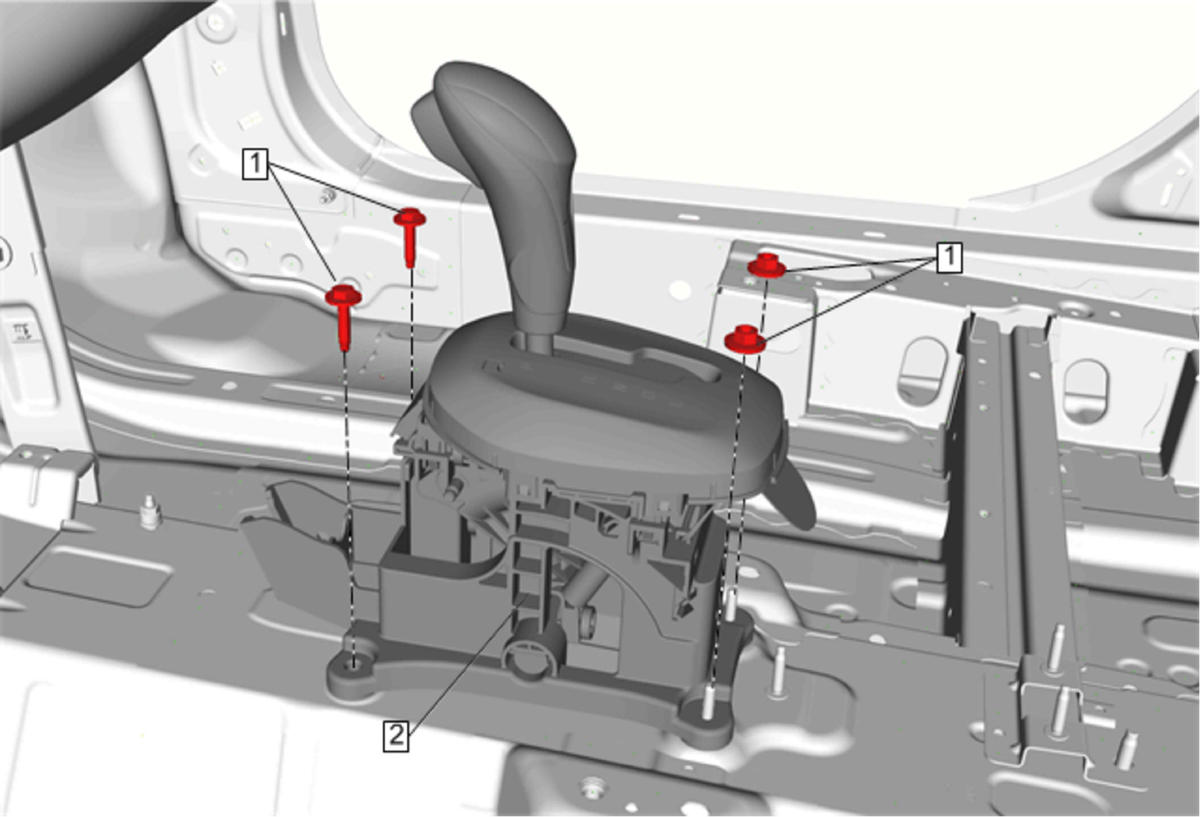

Fig 1: Transmission Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement . Disconnect the range selector lever cable. Refer to Range Selector Lever Cable Replacement . Remove the clips on the wiring harness and disconnect the transmission control electrical connector. Disconnect the ignition lock key transmitter antenna electrical connector.
1	Transmission Control Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Transmission Control Procedure After installing the range selector lever cable, Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment .

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement .
Disconnect the range selector lever cable. Refer to Range Selector Lever Cable Replacement .
Remove the clips on the wiring harness and disconnect the transmission control electrical connector.
Disconnect the ignition lock key transmitter antenna electrical connector.

Transmission Control Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Transmission Control
Procedure
After installing the range selector lever cable, Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment .
