Secondary Input Speed Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

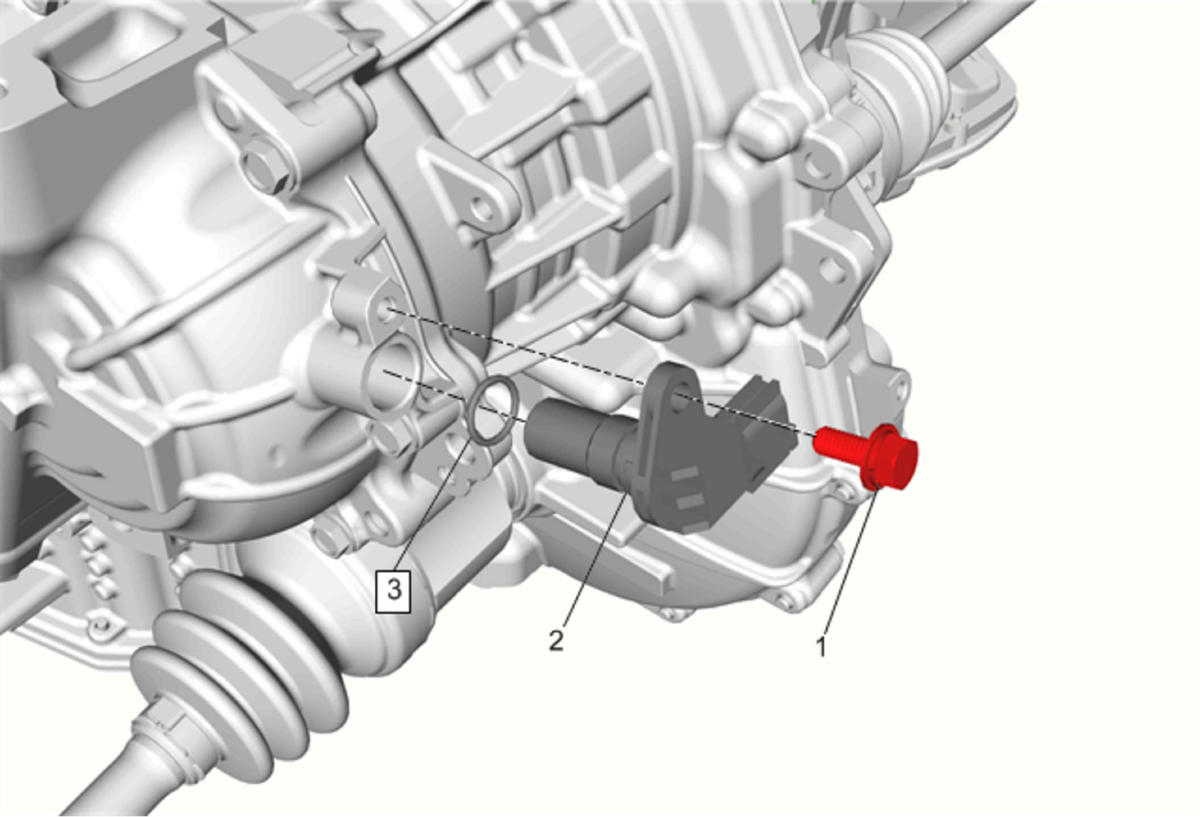

Fig 1: Secondary Input Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
1	Secondary Input Speed Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Secondary Input Speed Sensor Procedure Disconnect the secondary input speed sensor electrical connector.
3	Secondary Input Speed Sensor O-Ring Seal NOTE: Do not reuse the secondary input speed sensor O-ring seal.
