Output Speed Sensor Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

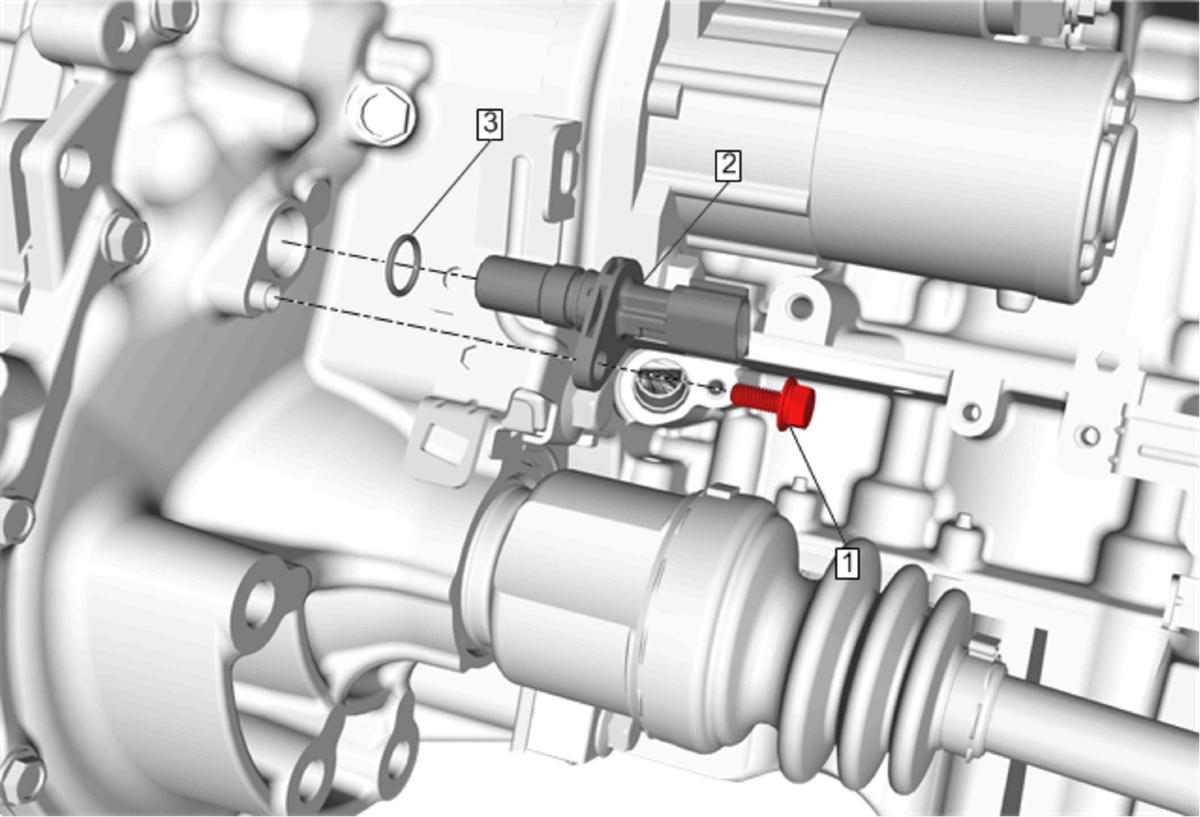

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Output Speed Sensor Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 6 N.m (53 lb in) |
| 2 | Output Speed Sensor Procedure Disconnect the output speed sensor electrical connector. |
| 3 | Output Speed Sensor O-Ring Seal
NOTE:
Do not reuse the output speed sensor O-ring seal.
|
