Front Wheel Drive Shaft Seal Replacement - Left Side

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

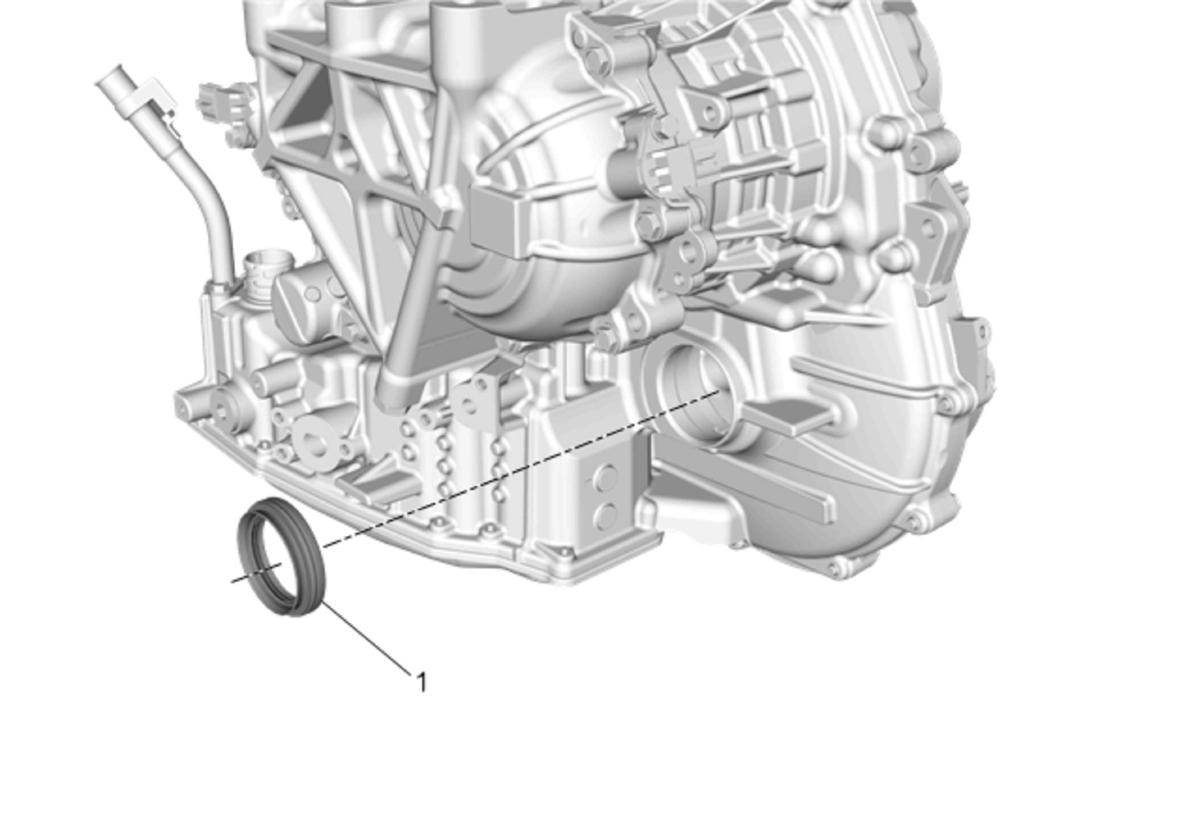

Fig 1: Front Wheel Drive Shaft Seal - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
1	Left Front Wheel Drive Shaft Oil Seal Procedure For seal removal, use DT-7004 slide hammer with DT-586 seal remover. For seal installation, use DT-51776 seal installer. NOTE: Do not reuse the front wheel drive shaft oil seal. Special Tools DT-51776 Seal Installer DT-586 Seal Remover DT-7004 Slide Hammer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the left wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .

Left Front Wheel Drive Shaft Oil Seal

Procedure

For seal removal, use DT-7004 slide hammer with DT-586 seal remover.
For seal installation, use DT-51776 seal installer.

NOTE: Do not reuse the front wheel drive shaft oil seal.

Special Tools

DT-51776 Seal Installer
DT-586 Seal Remover
DT-7004 Slide Hammer

For equivalent regional tools, refer to Special Tools .
