Transmission Mechanism: Pulley: Notes
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
The primary pulley (input shaft side) and the secondary pulley (output shaft side) have the shaft with slope (fixed cone surface), movable sheave (movable cone surface that can move in the axial direction) and oil pressure chamber at the back of the movable sheave.

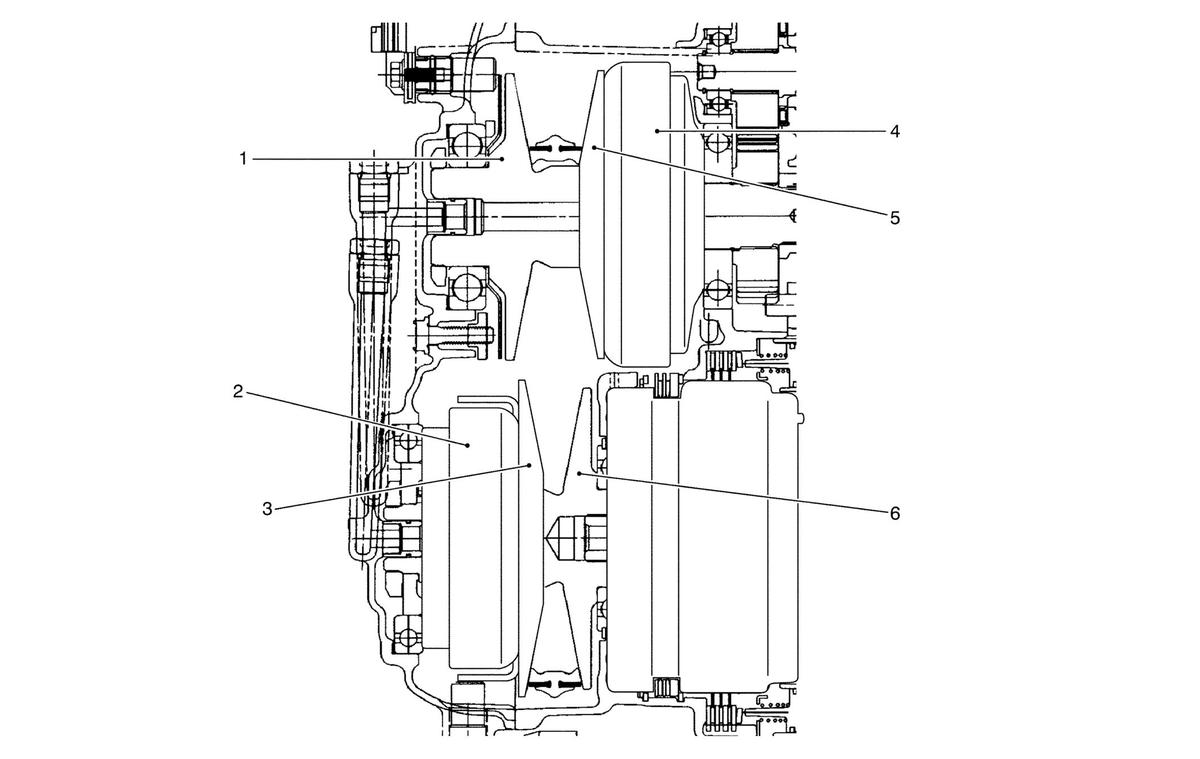

Fig 1: Primary Pulley (Fixation Side), Secondary Side Oil Pressure Chamber And Primary Side Oil Pressure Chamber
| Callout | Component Name |
|---|---|
| 1 | Primary Pulley (Fixation Side) |
| 2 | Secondary Side Oil Pressure Chamber |
| 3 | Secondary Pulley (Mobile Side) |
| 4 | Primary Side Oil Pressure Chamber |
| 5 | Primary Pulley (Mobile Side) |
| 6 | Secondary Pulley (Fixation Side) |
