Low Condition (Pulley Ratio = r2/r1)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

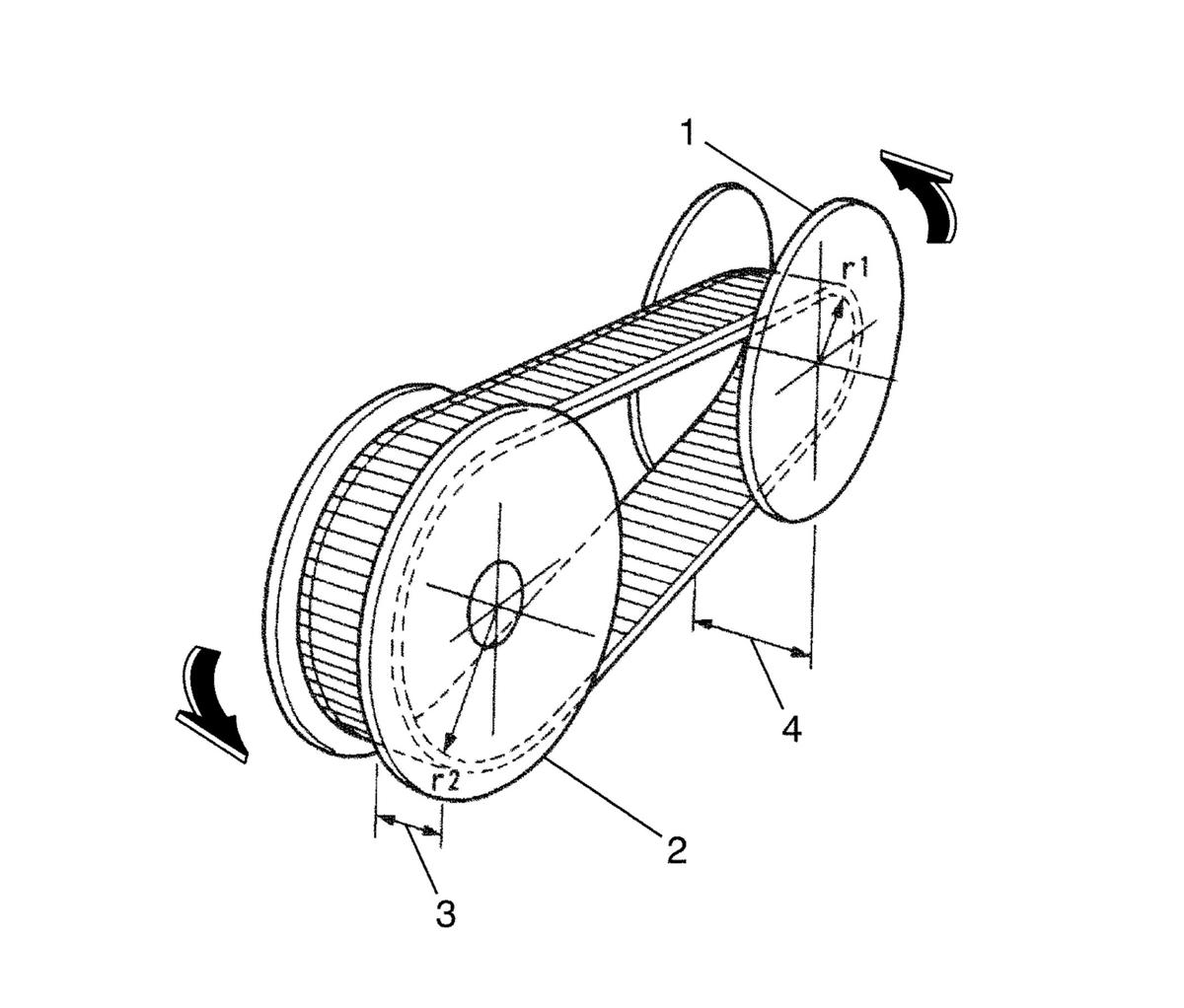

Fig 1: Low Condition (Pulley Ratio = r2/r1)
GM3319533Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Primary Pulley
2 Secondary Pulley
3 Narrow
4 Wide
