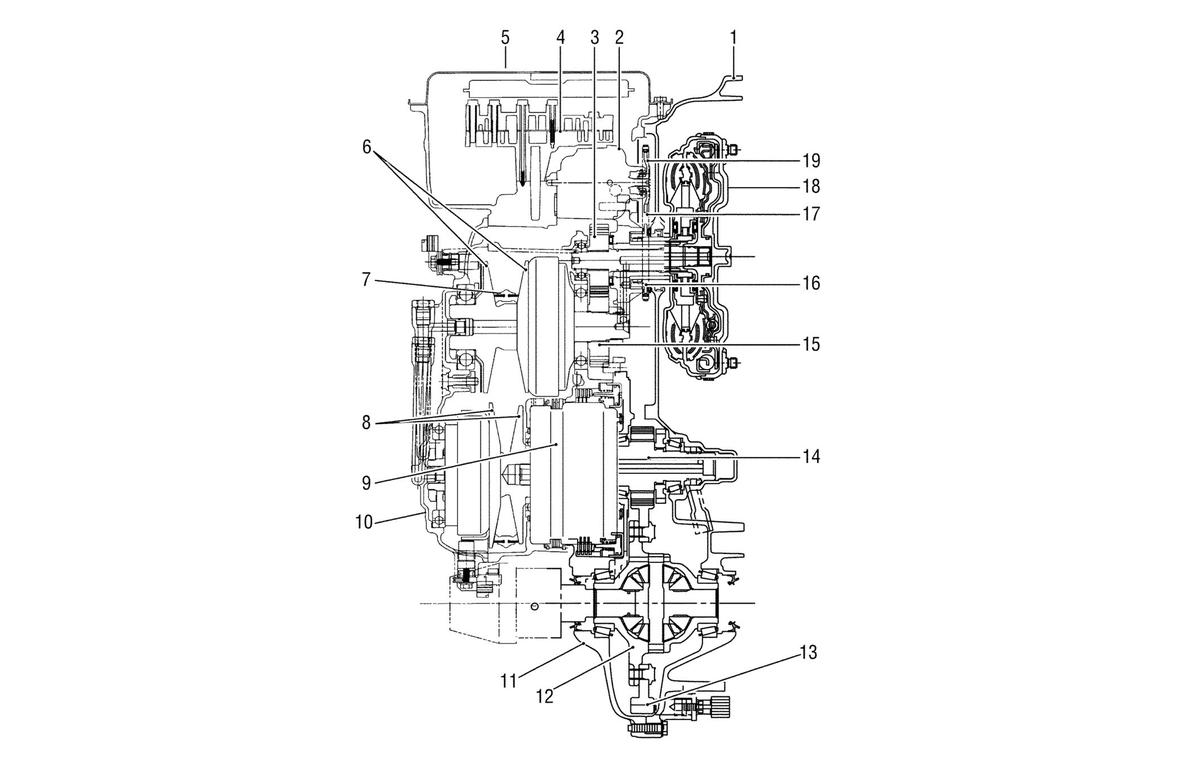

Cross-Sectional View
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Converter Housing |
| 2 | Oil Pump |
| 3 | Counter Drive Gear |
| 4 | Control Valve |
| 5 | Oil Pan |
| 6 | Primary Pulley |
| 7 | Steel Belt |
| 8 | Secondary Pulley |
| 9 | Planetary Gear (Auxiliary Gearbox) |
| 10 | Side Cover |
| 11 | Transmission Case |
| 12 | Differential Case |
| 13 | Final Gear |
| 14 | Reduction Gear |
| 15 | Counter Driven Gear |
| 16 | Drive Sprocket |
| 17 | Oil Pump Chain |
| 18 | Torque Converter |
| 19 | Driven Sprocket |
