Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to Battery Replacement .
  2. Remove the engine control module. Refer to Engine Control Module Replacement .
  3. Remove the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
  4. Install the engine support fixture. Refer to Engine Support Fixture (LV7)Engine Support Fixture (L5Q) .
  5. Remove and DISCARD the transmission mount bolts (1).
    Fig 1: Transmission Mount Bolts
    GM4043936Courtesy of GENERAL MOTORS COMPANY
  6. Remove the transmission mount frame side bracket nut (1).

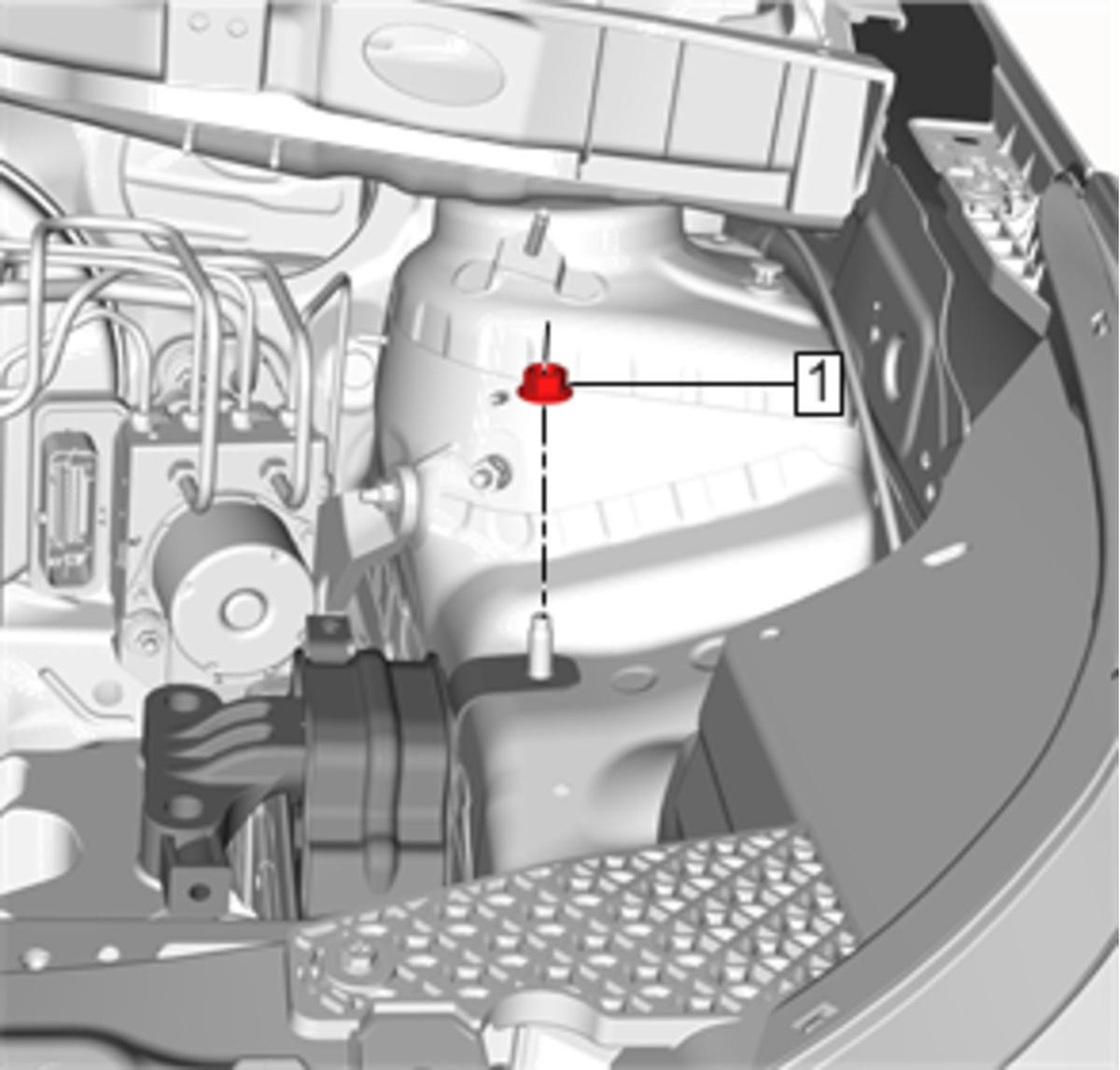

    Fig 2: Transmission Mount Frame Side Bracket Nut
    GM4043939Courtesy of GENERAL MOTORS COMPANY
  7. Remove the transmission mount frame side bracket bolts (1).

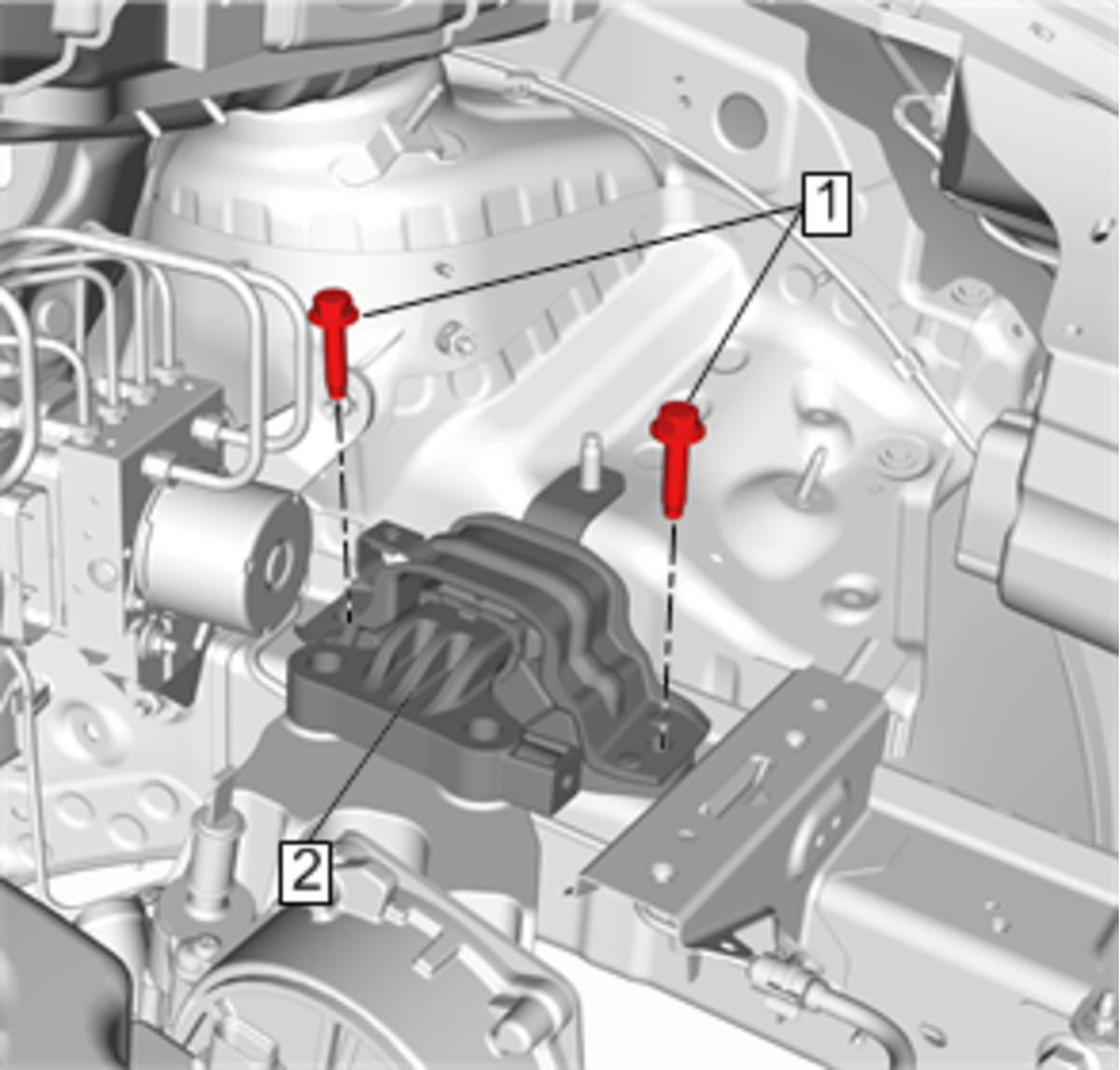

    Fig 3: Transmission Mount Frame Side Bracket Bolts And Transmission Mount
    GM4043942Courtesy of GENERAL MOTORS COMPANY
  8. Remove the transmission mount (2) from the vehicle.
