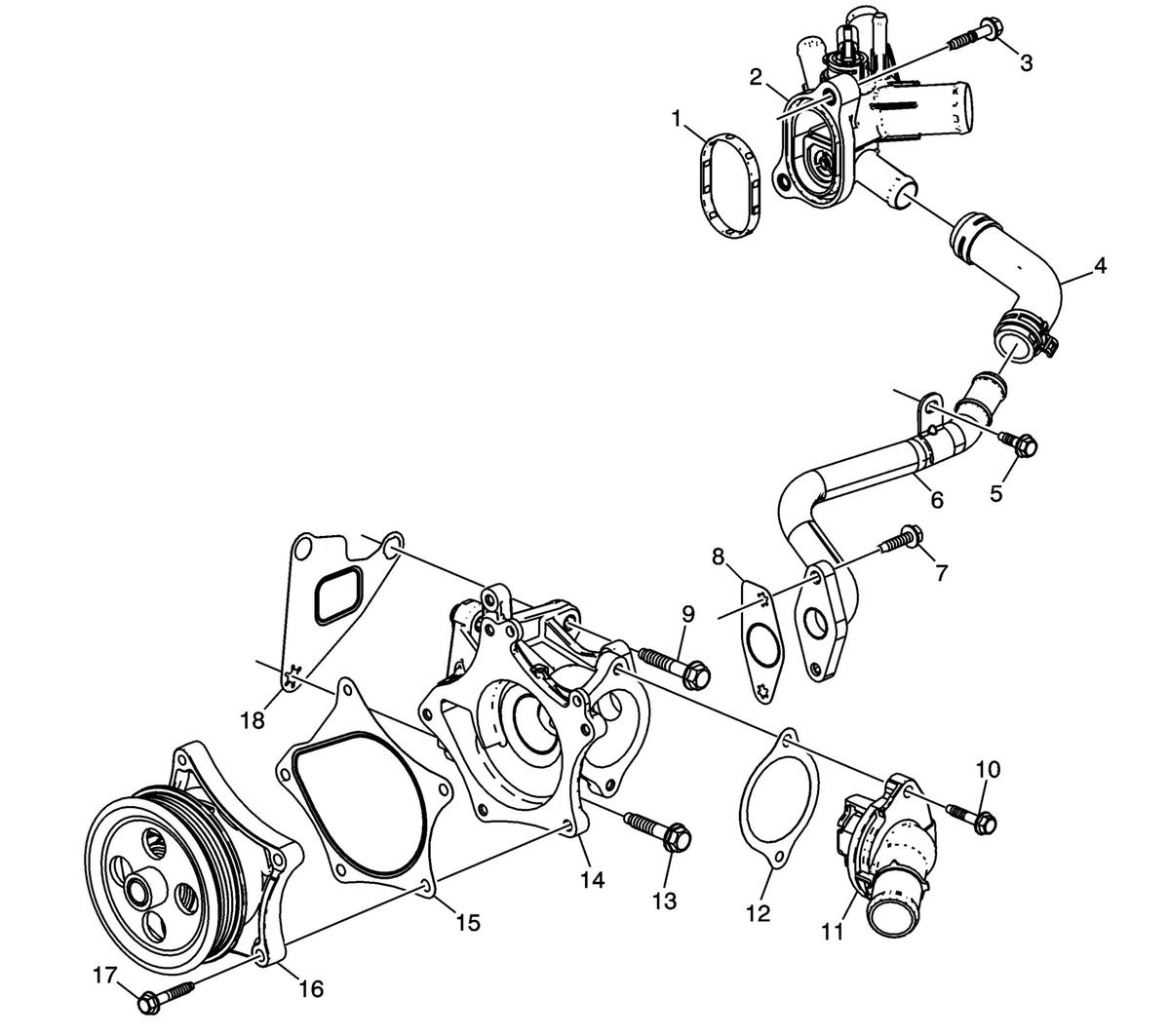

Water Pump and Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Water Outlet Gasket |
| 2 | Water Outlet |
| 3 | Water Outlet Bolt [2x] |
| 4 | Thermostat Bypass Hose |
| 5 | Thermostat Bypass Pipe Bolt |
| 6 | Thermostat Bypass Pipe |
| 7 | Thermostat Bypass Pipe Bolt [2x] |
| 8 | Thermostat Bypass Pipe Gasket |
| 9 | Water Pump Housing Bolt [2x] |
| 10 | Engine Coolant Thermostat Housing Bolt [2x] |
| 11 | Engine Coolant Thermostat Housing |
| 12 | Engine Coolant Thermostat Housing Gasket |
| 13 | Water Pump Housing Bolt |
| 14 | Water Pump Rear Housing |
| 15 | Water Pump Gasket |
| 16 | Water Pump Housing |
| 17 | Water Pump Bolt [5x] |
| 18 | Water Pump Housing Gasket |
