Intake Manifold and Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

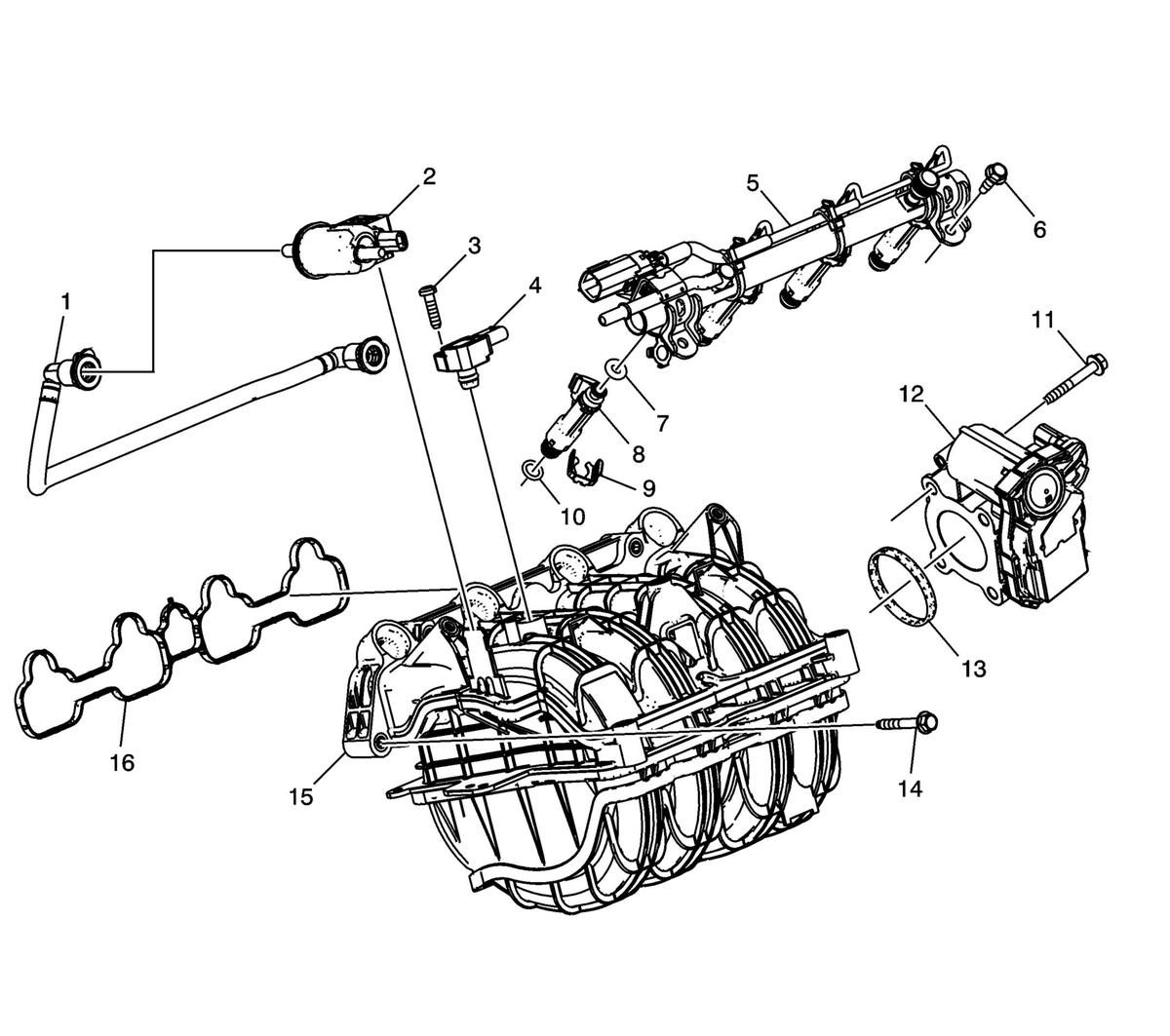

| Callout | Component Name |
|---|---|
| 1 | Evaporative Emission Canister Purge Tube |
| 2 | Evaporative Emission Canister Purge Solenoid Valve |
| 3 | Manifold Absolute Pressure Sensor Bolt |
| 4 | Manifold Absolute Pressure Sensor |
| 5 | Multiport Fuel Injection Fuel Rail |
| 6 | Fuel Injection Fuel Rail Bolt [2x] |
| 7 | Fuel Injection Fuel Rail Seal |
| 8 | Multiport Fuel Injector [4x] |
| 9 | Fuel Injector Retainer |
| 10 | Fuel Injection Fuel Rail Seal |
| 11 | Throttle Body Assembly Bolt [4x] |
| 12 | Throttle Body |
| 13 | Throttle Body Seal |
| 14 | Intake Manifold Bolt [5x] |
| 15 | Intake Manifold |
