Cylinder Head and Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

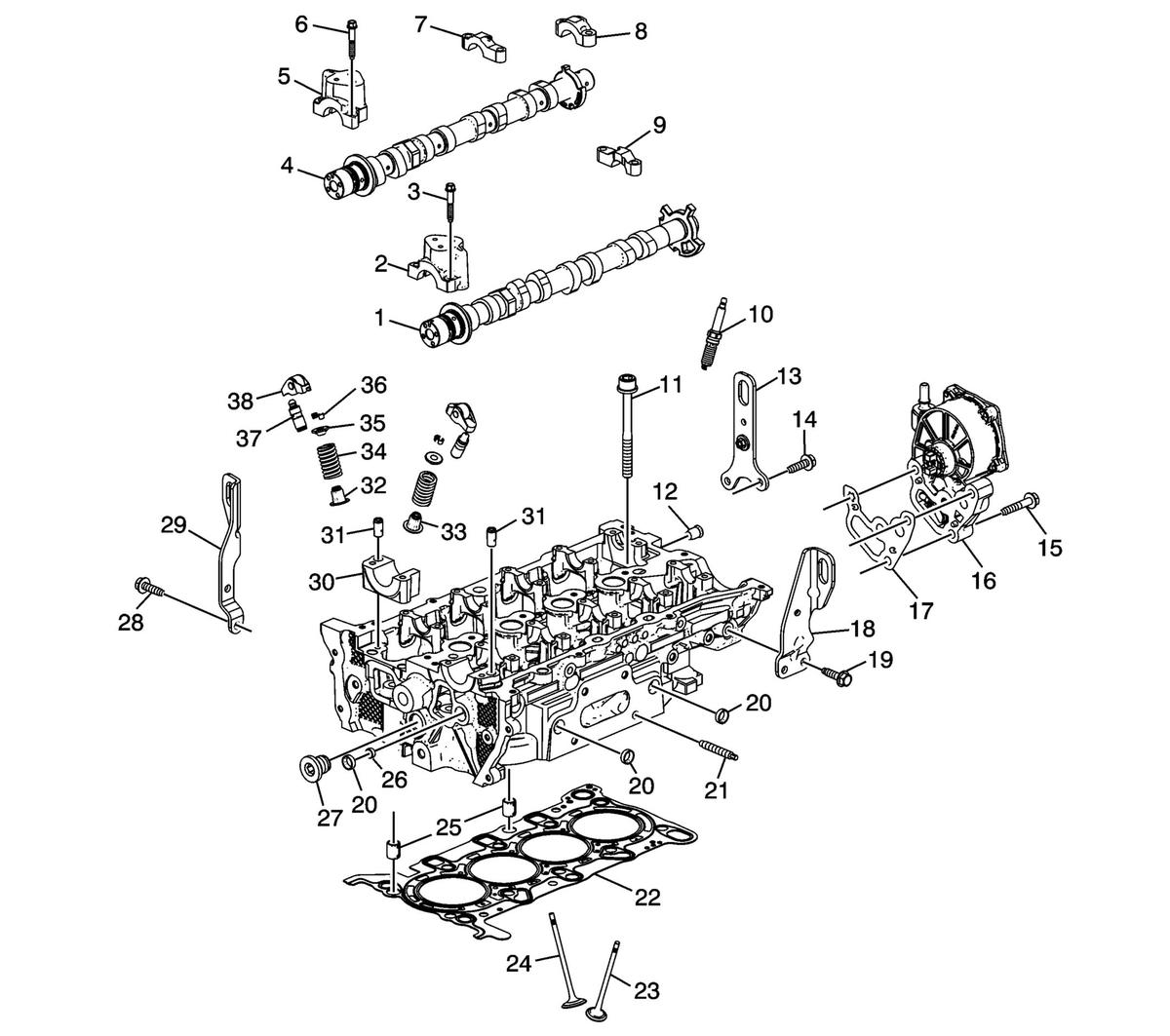

| Callout | Component Name |
|---|---|
| 1 | Exhaust Camshaft |
| 2 | Camshaft Bearing Front Exhaust Cap |
| 3 | Camshaft Bearing Cap Bolt [22x] |
| 4 | Intake Camshaft |
| 5 | Camshaft Bearing Front Intake Cap |
| 6 | Camshaft Bearing Cap Bolt [2x] |
| 7 | Camshaft Bearing Cap [4x] |
| 8 | Camshaft Bearing Rear Cap |
| 9 | Camshaft Bearing Cap [5x] |
| 10 | Spark Plug [4x] |
| 11 | Cylinder Head Bolt [10x] |
| 12 | Cylinder Head Core Hole Plug [5x] |
| 13 | Engine Lift Rear Bracket |
| 14 | Engine Lift Bracket Bolt [2x] |
| 15 | Vacuum Pump Bolt [3x] |
| 16 | Vacuum Pump |
| 17 | Vacuum Pump Gasket |
| 18 | Engine Lift Rear Bracket |
| 19 | Engine Lift Bracket Bolt [2x] |
| 20 | Cylinder Head Water Jacket Hole Plug [3x] |
| 21 | Catalytic Converter Stud [4x] |
| 22 | Cylinder Head Gasket |
| 23 | Intake Valve [8x] |
| 24 | Exhaust Valve [8x] |
| 25 | Cylinder Head Locating Pin [2x] |
| 26 | Cylinder Head Oil Gallery Restrictor |
| 27 | Cylinder Head Core Hole Plug |
| 28 | Engine Lift Bracket Bolt [2x] |
| 29 | Engine Lift Front Bracket |
| 30 | Camshaft Bearing Lower Cap |
| 31 | Oil Flow Check Valve [2x] |
| 32 | Valve Stem Oil Seal [8x] |
| 33 | Valve Stem Oil Seal [8x] |
| 34 | Valve Spring [16x] |
| 35 | Valve Spring Retainer [16x] |
