Timing Chain and Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

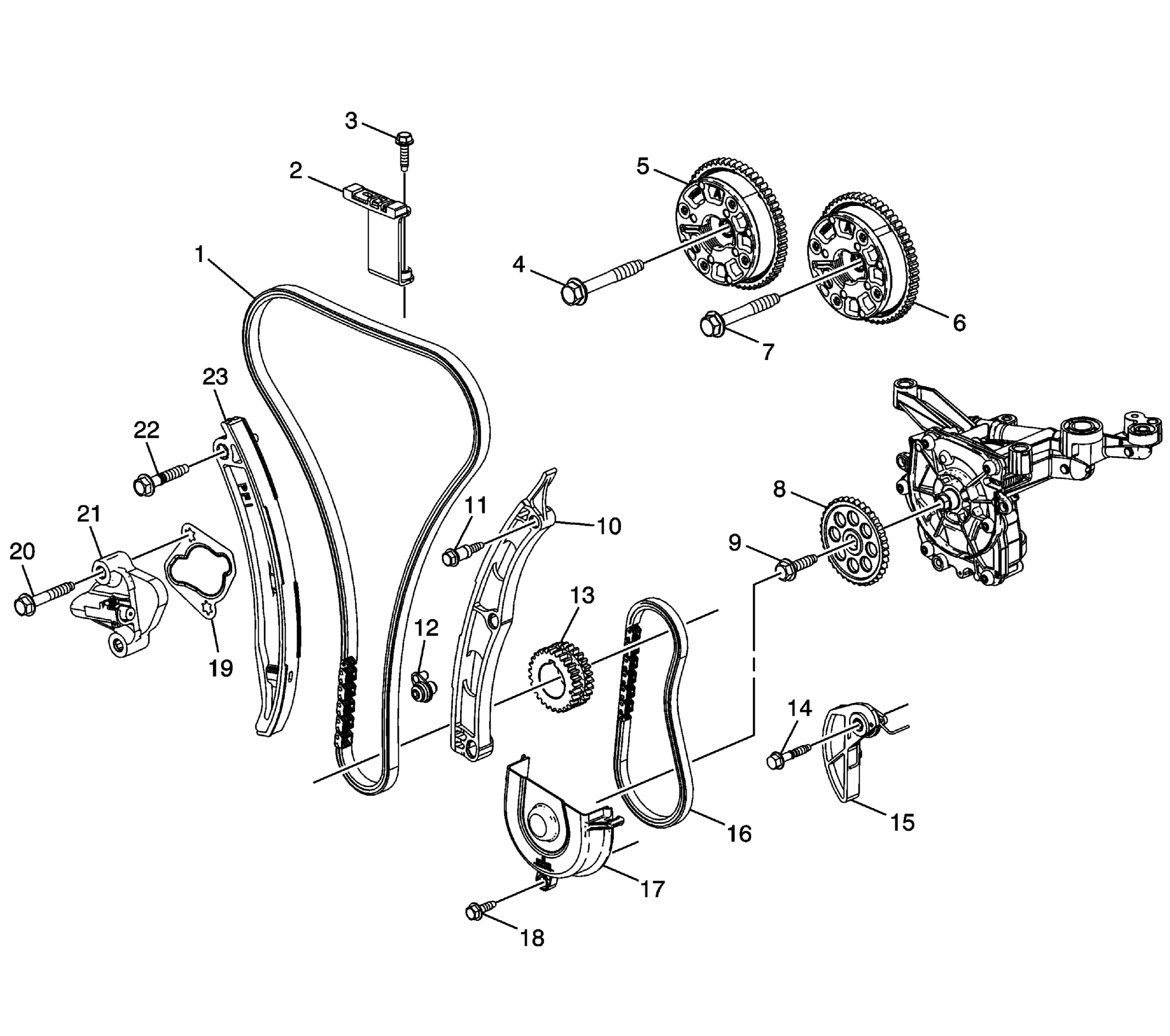

Fig 1: Timing Chain and Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Timing Chain
2	Timing Chain Guide
3	Timing Chain Guide Bolt [2x]
4	Camshaft Position Actuator Bolt
5	Camshaft Position Actuator
6	Camshaft Position Actuator
7	Camshaft Position Actuator Bolt
8	Oil Pump Drive Chain Sprocket
9	Oil Pump Sprocket Bolt
10	Timing Chain Guide
11	Timing Chain Guide Bolt [3x]
12	Timing Chain Oil Nozzle
13	Crankshaft Sprocket
14	Oil Pump Drive Chain Tensioner Bolt
15	Oil Pump Drive Chain Tensioner
16	Oil Pump Drive Chain
17	Oil Pump Drive Chain Cover
18	Oil Pump Drive Chain Cover Bolt
19	Timing Chain Tensioner Gasket
20	Timing Chain Tensioner Bolt [2x]
21	Timing Chain Tensioner
22	Timing Chain Tensioner Shoe Bolt
23	Timing Chain Tensioner Shoe
