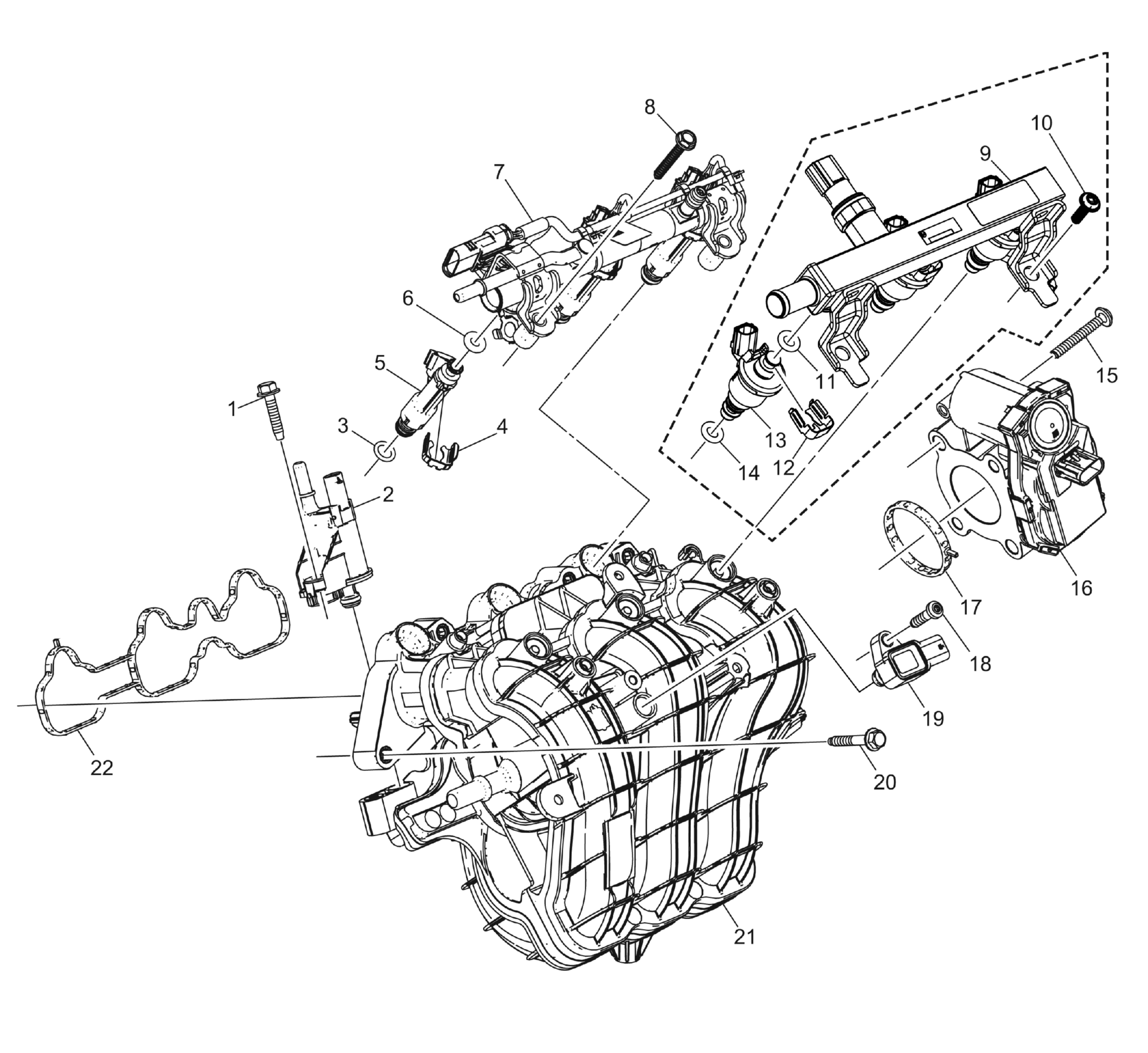

Intake Manifold and Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Evaporative Emission Canister Purge Solenoid Valve Bolt |
| 2 | Evaporative Emission Canister Purge Solenoid Valve |
| 3 | Fuel Injection Fuel Rail Seal |
| 4 | Fuel Injector Retainer |
| 5 | Multiport Fuel Injector [3x] |
| 6 | Fuel Injection Fuel Rail Seal |
| 7 | Multiport Fuel Injection Fuel Rail |
| 8 | Fuel Injection Fuel Rail Bolt [2x] |
| 9 | LPG Multiport Fuel Injection Fuel Rail |
| 10 | Fuel Injection Fuel Rail Bolt [2x] |
| 11 | Fuel Injection Fuel Rail Seal |
| 12 | Fuel Injector Retainer |
| 13 | LPG Multiport Fuel Injector |
| 14 | Fuel Injection Fuel Rail Seal |
| 15 | Throttle Body Assembly Bolt [4x] |
| 16 | Throttle Body |
| 17 | Throttle Body Seal |
| 18 | Manifold Absolute Pressure Sensor Bolt |
| 19 | Manifold Absolute Pressure Sensor |
| 20 | Intake Manifold Bolt [5x] |
| 21 | Intake Manifold |
| 22 | Intake Manifold Gasket |
