Engine Block and Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

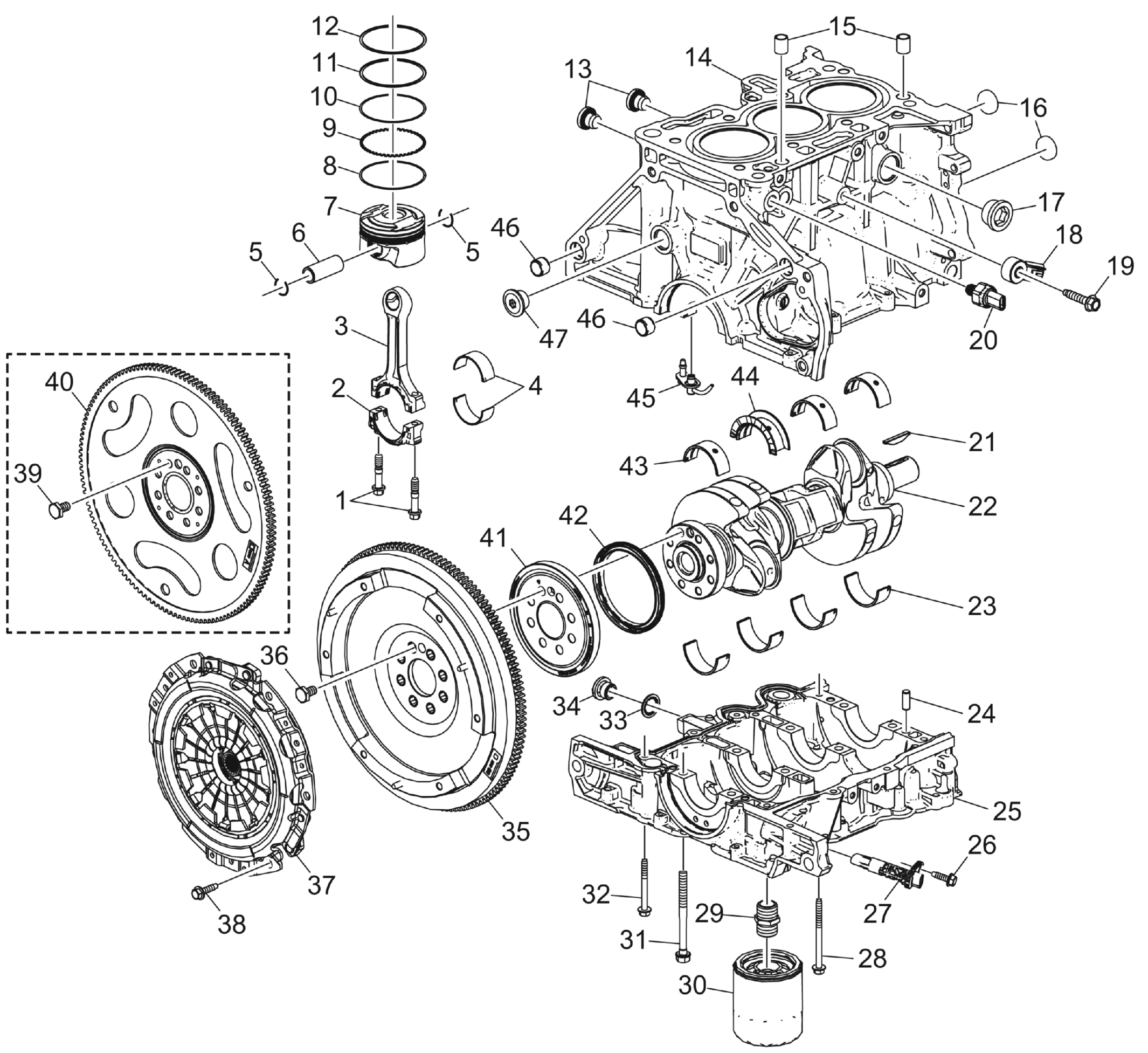

| Callout | Component Name |
|---|---|
| 1 | Connecting Rod Bolt [6x] |
| 2 | Connecting Rod Cap [3x] |
| 3 | Connecting Rod [3x] |
| 4 | Connecting Rod Bearing |
| 5 | Piston Pin Retainer |
| 6 | Piston Pin |
| 7 | Piston [3x] |
| 8 | Piston Oil Ring Rail |
| 9 | Piston Oil Ring Rail Spacer |
| 10 | Piston Oil Ring Rail |
| 11 | Piston Compression Lower Ring |
| 12 | Piston Compression Upper Ring |
| 13 | Engine Block Oil Gallery Plug [2x] |
| 14 | Engine Block |
| 15 | Cylinder Head Locating Pin [2x] |
| 16 | Engine Block Core Hole Plug [2x] |
| 17 | Engine Block Coolant Drain Hole Plug |
| 18 | Knock Sensor |
| 19 | Knock Sensor Bolt |
| 20 | Engine Oil Pressure Sensor |
| 21 | Crankshaft Balancer Key |
| 22 | Crankshaft |
| 23 | Crankshaft Lower Bearing |
| 24 | Lower Crankcase Locating Pin [4x] |
| 25 | Lower Crankcase |
| 26 | Crankshaft Position Sensor Bolt |
| 27 | Crankshaft Position Sensor |
| 28 | Lower Crankcase Bolt [2x] |
| 29 | Oil Filter Fitting |
| 30 | Oil Filter |
| 31 | Lower Crankcase Bolt [8x] |
| 32 | Lower Crankcase Bolt [7x] |
| 33 | Oil Pump Housing Plug Seal |
| 34 | Oil Pump Housing Plug |
| 35 | Engine Flywheel |
| 36 | Engine Flywheel Bolt [8x] |
| 37 | Clutch Pressure Plate |
| 38 | Clutch Pressure Plate Bolt [6x] |
| 39 | Automatic Transmission Flex Plate Bolt [8x] |
| 40 | Automatic Transmission Flex Plate |
| 41 | Crankshaft Position Sensor Reluctor Ring |
| 42 | Crankshaft Rear Oil Seal |
| 43 | Crankshaft Upper Bearing [3x] |
| 44 | Crankshaft Thrust Upper Bearing |
