Drive Belt Accessory Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

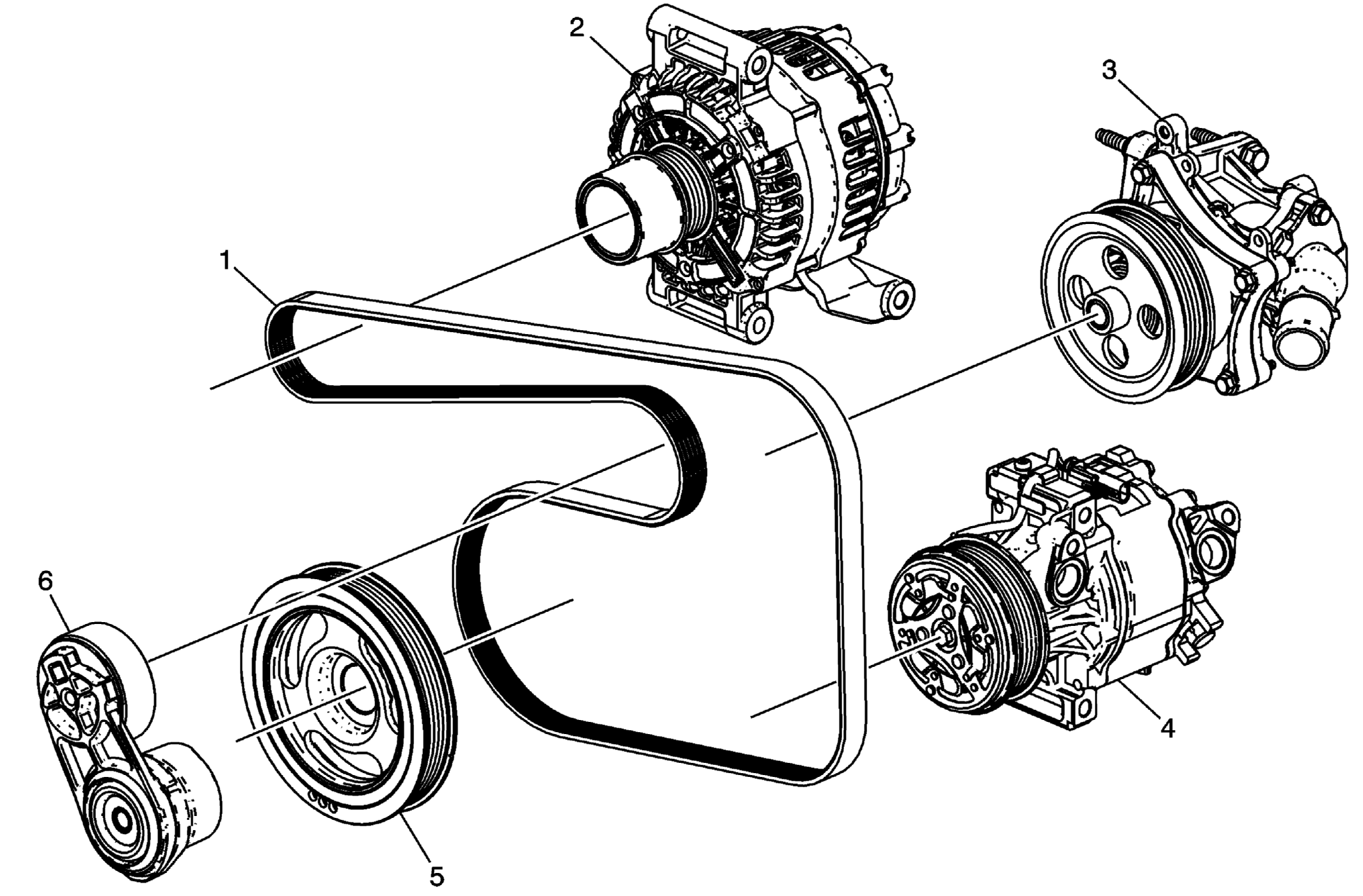

Fig 1: Drive Belt Accessory Components
GM3966551Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Drive Belt
2 Generator
3 Water Pump
4 Air Conditioning Compressor
5 Crankshaft Balancer
6 Drive Belt Tensioner
