Camshaft Cover and Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

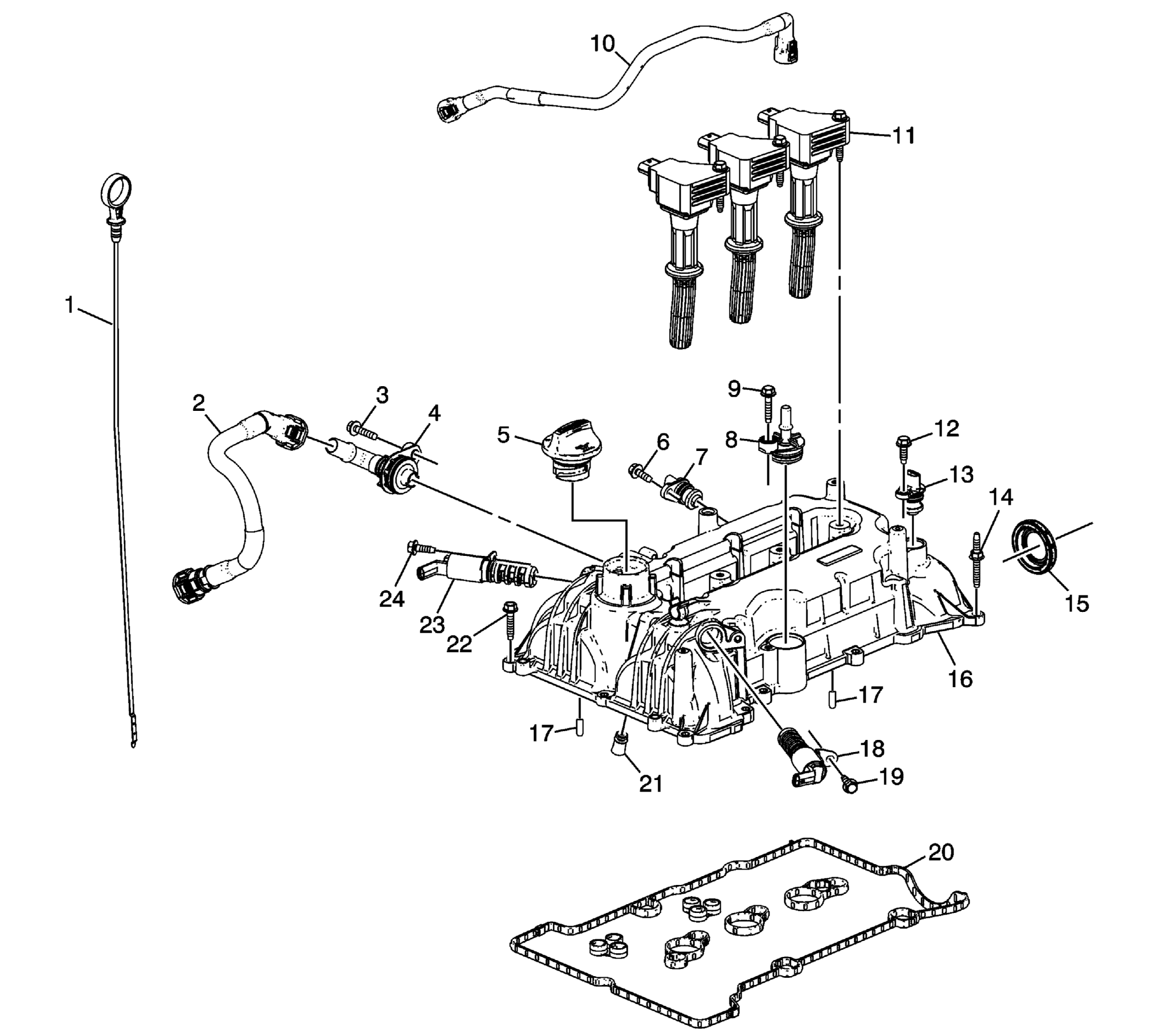

| Callout | Component Name |
|---|---|
| 1 | Oil Level Indicator |
| 2 | Positive Crankcase Ventilation Tube |
| 3 | Positive Crankcase Ventilation Valve Bolt |
| 4 | Positive Crankcase Ventilation Valve |
| 5 | Oil Filler Cap |
| 6 | Camshaft Position Sensor Bolt |
| 7 | Intake Camshaft Position Sensor |
| 8 | Positive Crankcase Ventilation Valve |
| 9 | Positive Crankcase Ventilation Valve Bolt |
| 10 | Positive Crankcase Ventilation Tube |
| 11 | Ignition Coil [3x] |
| 12 | Camshaft Position Sensor Bolt |
| 13 | Exhaust Camshaft Position Sensor |
| 14 | Camshaft Cover Stud [2x] |
| 15 | Vacuum Pump Seal |
| 16 | Camshaft Cover |
| 17 | Camshaft Cover Locating Pin [2x] |
| 18 | Camshaft Position Actuator Solenoid Valve |
| 19 | Camshaft Position Actuator Solenoid Valve Bolt |
| 20 | Camshaft Cover Gasket |
| 21 | Positive Crankcase Ventilation Valve |
| 22 | Camshaft Cover Bolt [13x] |
| 23 | Camshaft Position Actuator Solenoid Valve |
| 24 | Camshaft Position Actuator Solenoid Valve Bolt |
