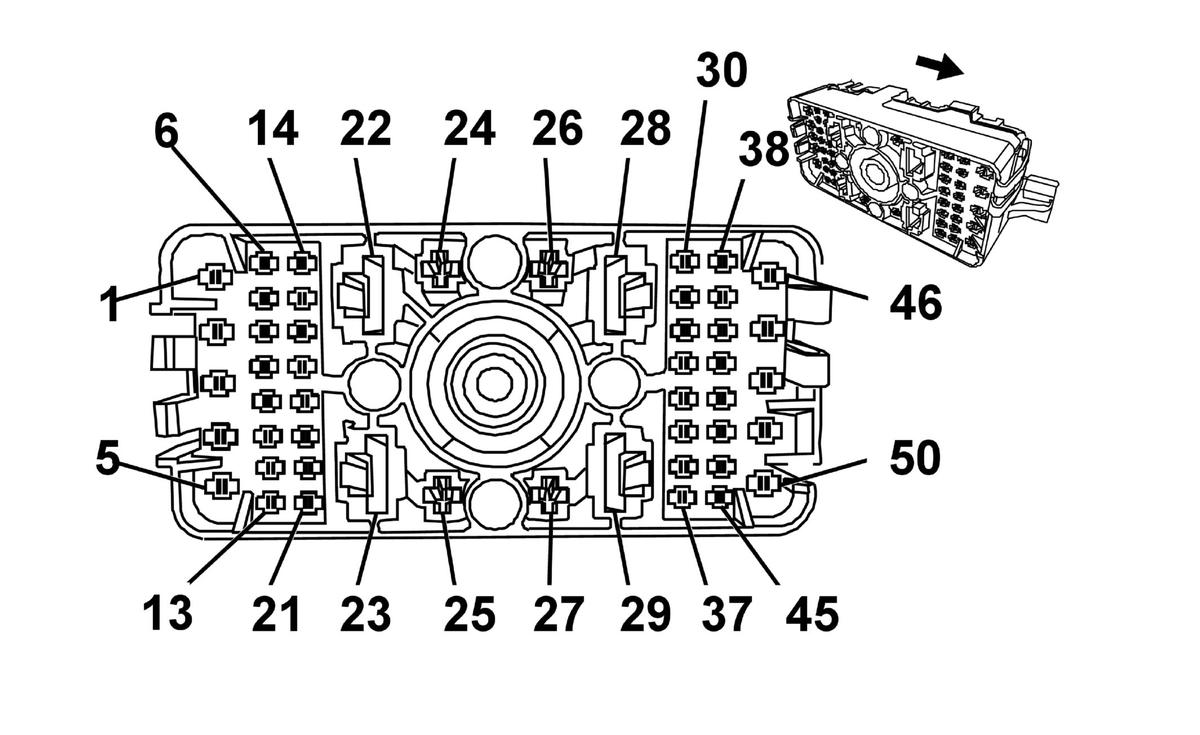

X50A Fuse Block - Underhood X2
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13327116 | J-35616-35 (VT) | J-38125-36 | Not Available | Not Available | Not Available | Not Available |
| II | 13575355 | J-35616-44 (YE) | J-38125-558 | 12110127 | Delphi 19 | F | G |
| III | 13575773 | J-35616-14 (GN) | J-38125-560 | Not Available | Not Available | Not Available | Not Available |
| IV | 13575774 | J-35616-14 (GN) | J-38125-560 | Not Available | Not Available | Not Available | Not Available |
| V | 13575780 | J-35616-35 (VT) | J-38125-36 | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 1 | BU/BN | 7539 | Right Front DRL Control | V | - |
| 3 | 0.75 | YE/GY | 57 | Left Cornering Lamp Control | V | T3U |
| 4 - 5 | - | - | - | Not Occupied | - | - |
| 6 | 1 | GY/BU | 7538 | Left Front DRL Control | IV | - |
| 7 | 1 | YE | 712 | Left Headlamp Low Beam Control | IV | - |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 1 | YE | 312 | Right Headlamp Low Beam Control | IV | - |
| 10 | - | - | - | Not Occupied | - | - |
| 11 | 1 | YE | 312 | Right Headlamp Low Beam Control | IV | - |
| 12 | 0.5 0.75 |
GY/BN GY/BN |
309 309 |
Right Park Lamp Control Right Park Lamp Control |
III IV |
MAH/MBC T3N |
| 13 | 0.5 0.75 |
VT/GY VT/GY |
709 709 |
Left Park Lamp Control Left Park Lamp Control |
III IV |
MAH/MBC T3N |
| 14 | 0.5 | BU/VT | 392 | Rear Window Washer Pump Control | III | - |
| 15 | 1 | YE | 712 | Left Headlamp Low Beam Control | IV | - |
| 16 | 0.5 | GY/VT | 228 | Windshield Washer Pump Control | III | - |
| 17 | 0.75 | BN/GY | 29 | Horn Control | IV | - |
| 18 | 0.35 | BK | 50 | Ground | III | - |
| 19 | 0.5 | VT/BK | 739 | Run/Crank Ignition 1 Voltage | III | TR6 |
| 20 | 0.5 | GN/VT | 1315 | Right Front Turn Signal Lamp Control | III | - |
| 21 | 0.5 | BU/WH | 1314 | Left Front Turn Signal Lamp Control | III | - |
| 22 - 28 | - | - | - | Not Occupied | - | - |
| 29 | 2.5 | WH/BU | 409 | Cooling Fan Motor Control 1 | II | - |
| 30 | 0.35 | BK | 50 | Ground | III | - |
| 31 | 0.75 | YE/WH | 58 | Right Cornering Lamp Control | IV | T3U |
| 32 | 1 | WH | 711 | Left Headlamp High Beam Control | IV | - |
| 33 | 0.5 | BN/VT | 2234 | Front Fog Lamp Control | III | T3U |
| 34 - 40 | - | - | - | Not Occupied | - | - |
| 41 | 1 | WH | 311 | Right Headlamp High Beam Control | IV | - |
| 42 - 49 | - | - | - | Not Occupied | - | - |
| 50 | 2.5 | GY | 532 | Cooling Fan Motor Control 2 | I | - |
