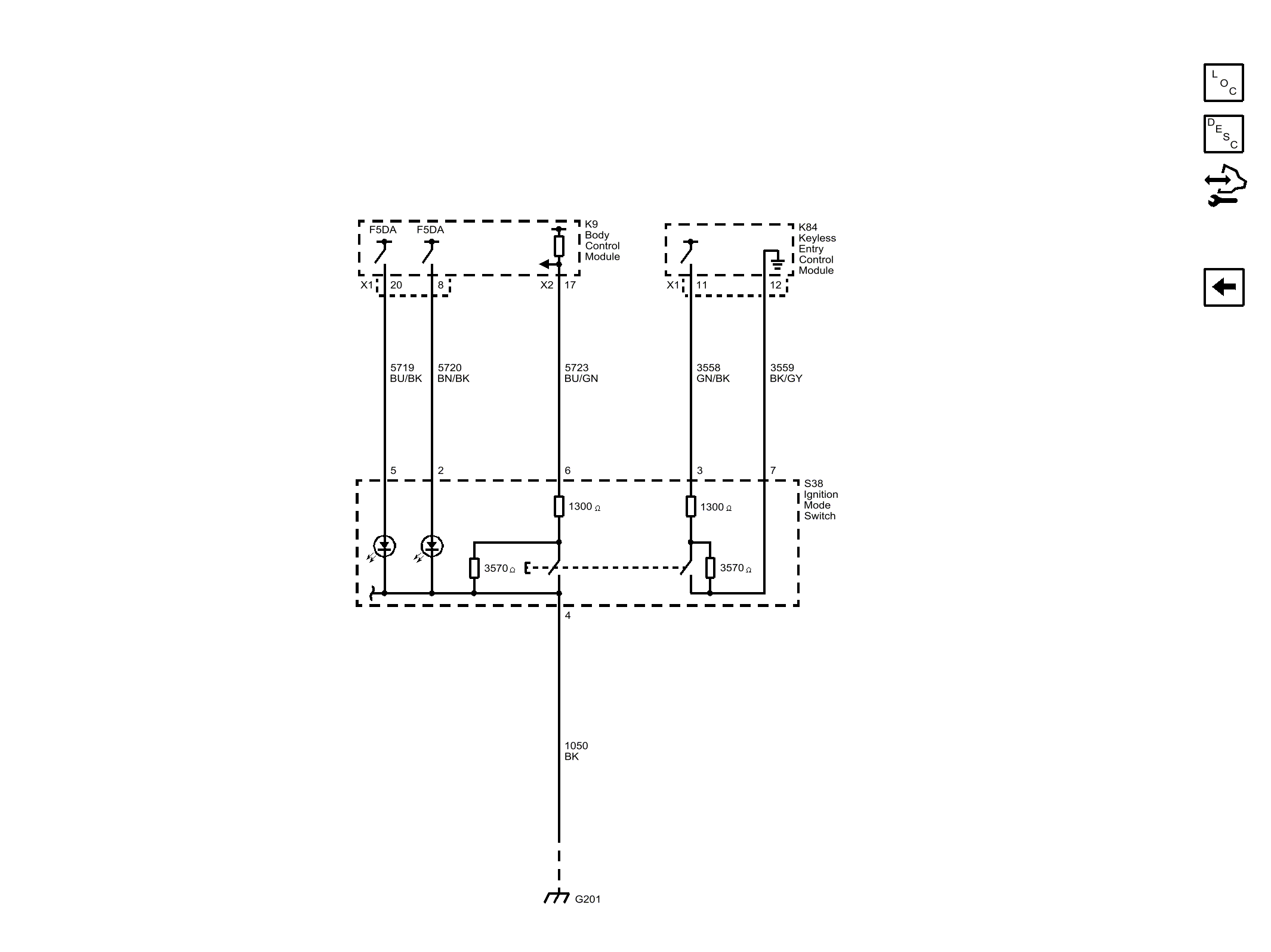

Ignition Mode Switch (AVJ)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 5720 | Ignition Mode Switch Accessory LED Signal |
| 5720_BN/BK | 5720 BN/BK |
| CAV_2 | 2 |
| 5719 | Ignition Mode Switch Start LED Signal |
| 5719_BU/BK | 5719 BU/BK |
| CAV_5 | 5 |
| CAV_20 | 20 |
| CONN_X1 | X1 |
| CAV_8 | 8 |
| CAV_6 | 6 |
| CAV_17 | 17 |
| CONN_X2 | X2 |
| CAV_11 | 11 |
| CAV_3 | 3 |
| CAV_12 | 12 |
| CONN_X1 | X1 |
| CAV_7 | 7 |
| CAV_4 | 4 |
| 5723 | Ignition Mode Switch Mode Voltage |
| 5723_BU/GN | 5723 BU/GN |
| 3558 | Passive Start Switch Signal 2 |
| 3558_GN/BK | 3558 GN/BK |
| 3559 | Passive Start Switch 2 Low Reference |
| 3559_BK/GY | 3559 BK/GY |
| 1050 | Ground |
| 1050_BK | 1050 BK |
| F5DA | F5DA |
| F5DA | F5DA |
| K9 | K9 Body Control Module |
| S38 | S38 Ignition Mode Switch (AVJ) |
| K84 | K84 Keyless Entry Control Module (AVJ) |
