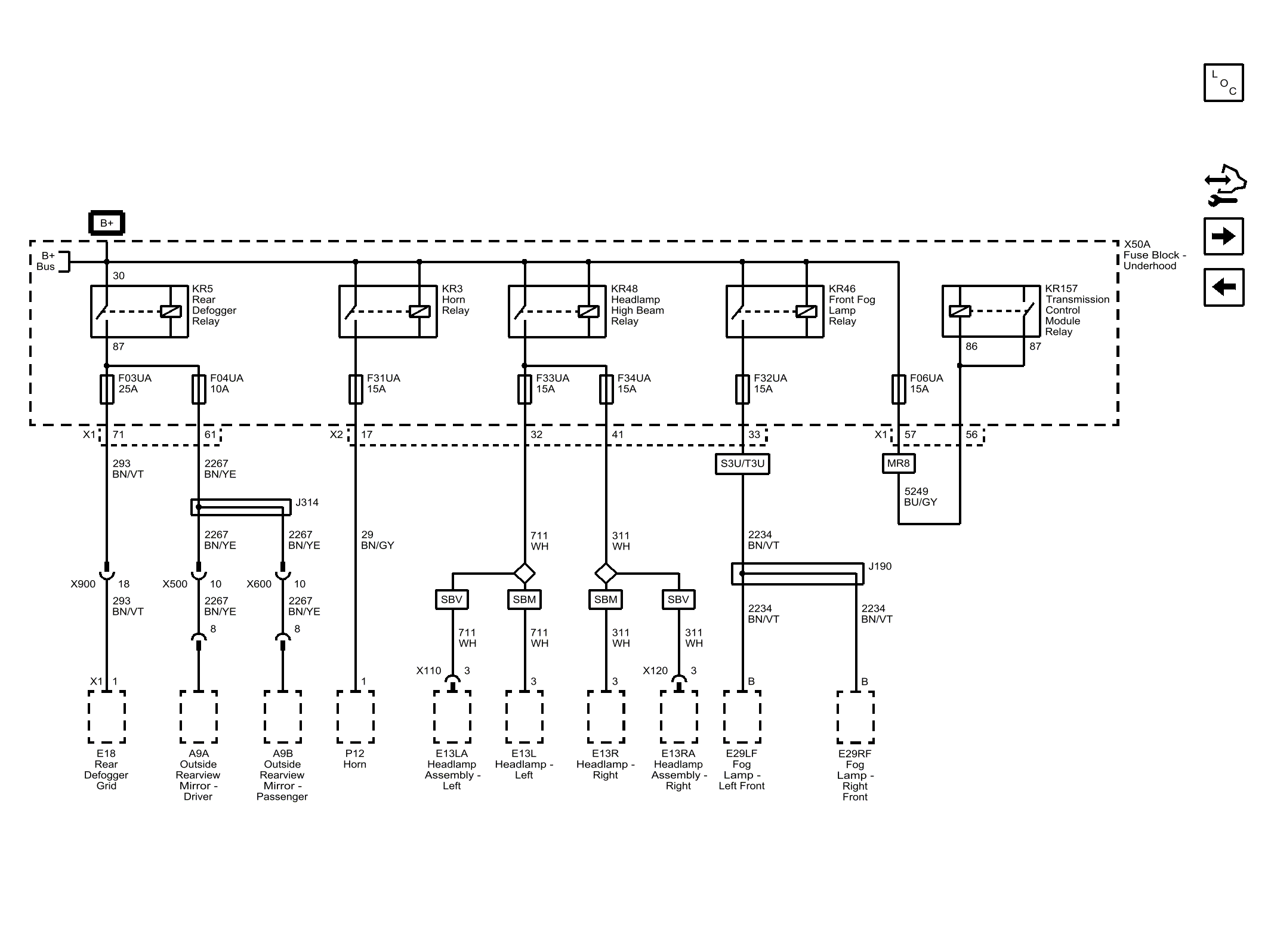

F03UA, F04UA, F06UA, F31UA, F32UA, F33UA and F34UA Fuses
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 293 | Rear Defog Element Control |
| CAV_1 | 1 |
| CONN_X1 | X1 |
| CAV_71 | 71 |
| 2267 | Mirror Heating Element Control |
| 2267_BN/YE | 2267 BN/YE |
| CAV_61 | 61 |
| 2267_BN/YE | 2267 BN/YE |
| 29 | Horn Control |
| 29_BN/GY | 29 BN/GY |
| CAV_1 | 1 |
| CAV_17 | 17 |
| 711 | Left Headlamp High Beam Control |
| 711_WH | 711 WH |
| CAV_32 | 32 |
| 311 | Right Headlamp High Beam Control |
| 311_WH | 311 WH |
| CAV_41 | 41 |
| 2267_BN/YE | 2267 BN/YE |
| 2267_BN/YE | 2267 BN/YE |
| 293_BN/VT | 293 BN/VT |
| 2267_BN/YE | 2267 BN/YE |
| CAV_18 | 18 |
| CAV_10 | 10 |
| CAV_10 | 10 |
| 293_BN/VT | 293 BN/VT |
| CONN_X1 | X1 |
| CAV_3 | 3 |
| CAV_3 | 3 |
| CONN_X2 | X2 |
| 2234 | Front Fog Lamp Control |
| 2234_BN/VT | 2234 BN/VT |
| CAV_33 | 33 |
| 2234_BN/VT | 2234 BN/VT |
| 2234_BN/VT | 2234 BN/VT |
| S3U | ACCESSORY-LAMP KIT - FRONT FOG |
| T3U | LAMP FRT FOG-FRT FOG |
| CAV_B | B |
| CAV_B | B |
| CAV_56 | 56 |
| 711_WH | 711 WH |
| 311_WH | 311 WH |
| 711_WH | 711 WH |
| 311_WH | 311 WH |
| SBV | |
| SBM | |
| SBM | |
| SBV | |
| CAV_3 | 3 |
| CAV_3 | 3 |
| CAV_30 | 30 |
| CAV_87 | 87 |
| CAV_8 | 8 |
| CAV_8 | 8 |
| 5249 | Right Front Run Flat Sensor Signal |
| 5249_BU/GY | 5249 BU/GY |
| CAV_57 | 57 |
| CONN_X1 | X1 |
| MR8 | TRANSMISSION-AUTO, CONTINUOUSLY VARIABLE RATIO (CVT), FWD, VAR 2 |
| CAV_86 | 86 |
| CAV_87 | 87 |
| X900 | X900 |
| X500 | X500 |
| X600 | X600 |
| F03UA | F03UA 25A |
| F04UA | F04UA 10A |
| F31UA | F31UA 15A |
| F33UA | F33UA 15A |
| F34UA | F34UA 15A |
| J314 | J314 |
| F32UA | F32UA 15A |
| J190 | J190 |
| X110 | X110 |
| X120 | X120 |
| F06UA | F06UA 15A |
| A9A | A9A Outside Rearview Mirror - Driver |
| A9B | A9B Outside Rearview Mirror - Passenger |
| P12 | P12 Horn |
| E18 | E18 Rear Defogger Grid (C49) |
| KR3 | KR3 Horn Relay |
| KR48 | KR48 Headlamp High Beam Relay |
| KR5 | KR5 Rear Defogger Relay |
| E13L | E13L Headlamp - Left |
| E13R | E13R Headlamp - Right |
| X50A | X50A Fuse Block - Underhood |
| KR46 | KR46 Front Fog Lamp Relay |
| E29LF | E29LF Fog Lamp - Left Front (T87) |
| E29RF | E29RF Fog Lamp - Right Front (T87) |
| E13RA | E13RA Headlamp Assembly - Right |
| E13LA | E13LA Headlamp Assembly - Left |
| KR157 | KR157 Transmission Control Module Relay |
