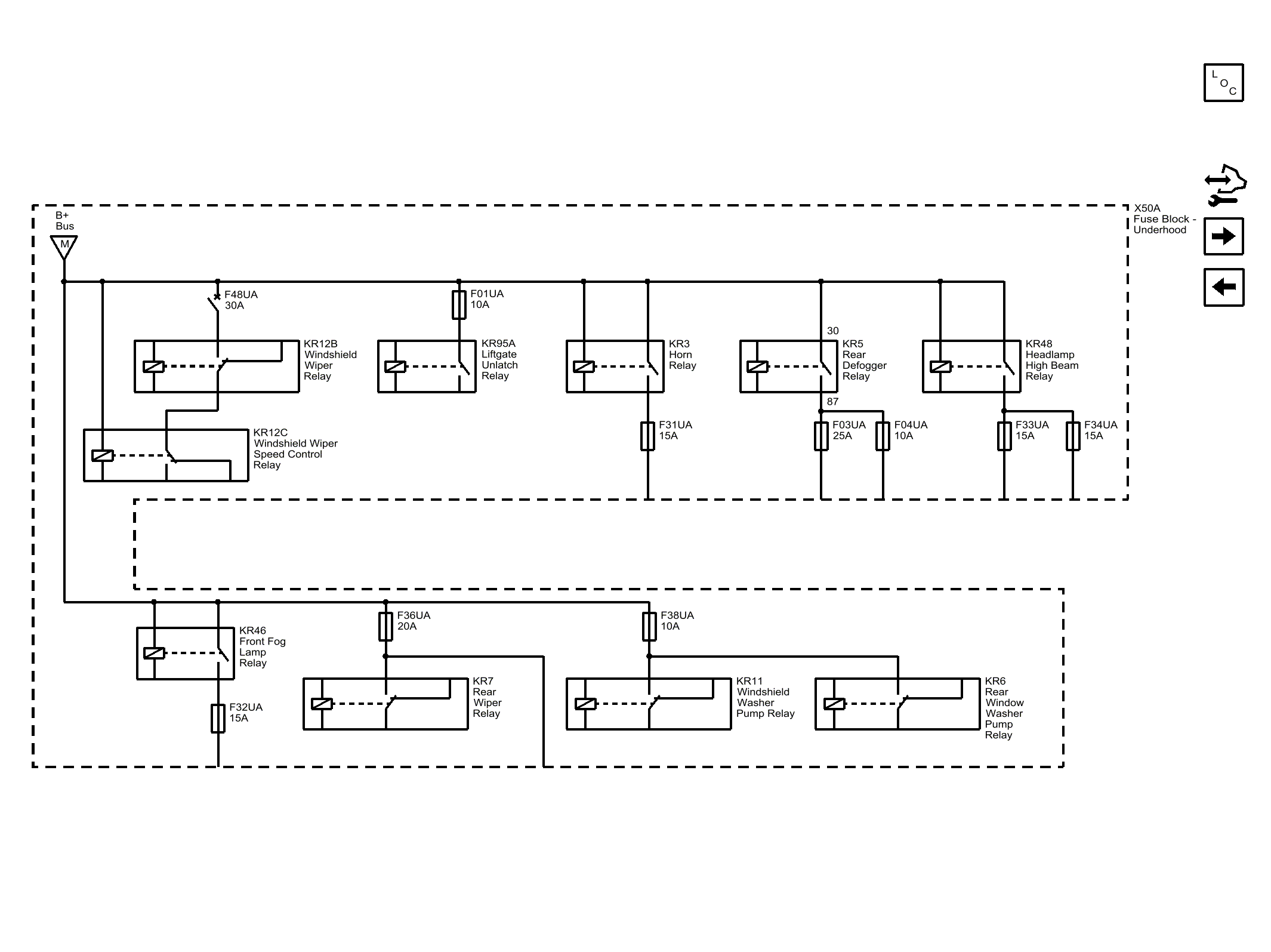

B+ Bus (2 of 2)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| CAV_30 | 30 |
| CAV_87 | 87 |
| M_REF | M |
| F01UA | F01UA 10A |
| F31UA | F31UA 15A |
| F03UA | F03UA 25A |
| F33UA | F33UA 15A |
| F34UA | F34UA 15A |
| F32UA | F32UA 15A |
| F36UA | F36UA 20A |
| F38UA | F38UA 10A |
| F04UA | F04UA 10A |
| F48UA | F48UA 30A |
| KR3 | KR3 Horn Relay |
| KR12B | KR12B Windshield Wiper Relay |
| KR12C | KR12C Windshield Wiper Speed Control Relay |
| KR5 | KR5 Rear Defogger Relay |
| KR95A | KR95A Liftgate Unlatch Relay |
| KR7 | KR7 Rear Wiper Relay |
| KR11 | KR11 Windshield Washer Pump Relay |
| KR6 | KR6 Rear Window Washer Pump Relay |
| KR46 | KR46 Front Fog Lamp Relay |
| KR48 | KR48 Headlamp High Beam Relay |
| X50A | X50A Fuse Block - Underhood |
