Ground Symbol/Name in Subsystem Wiring Schematics

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

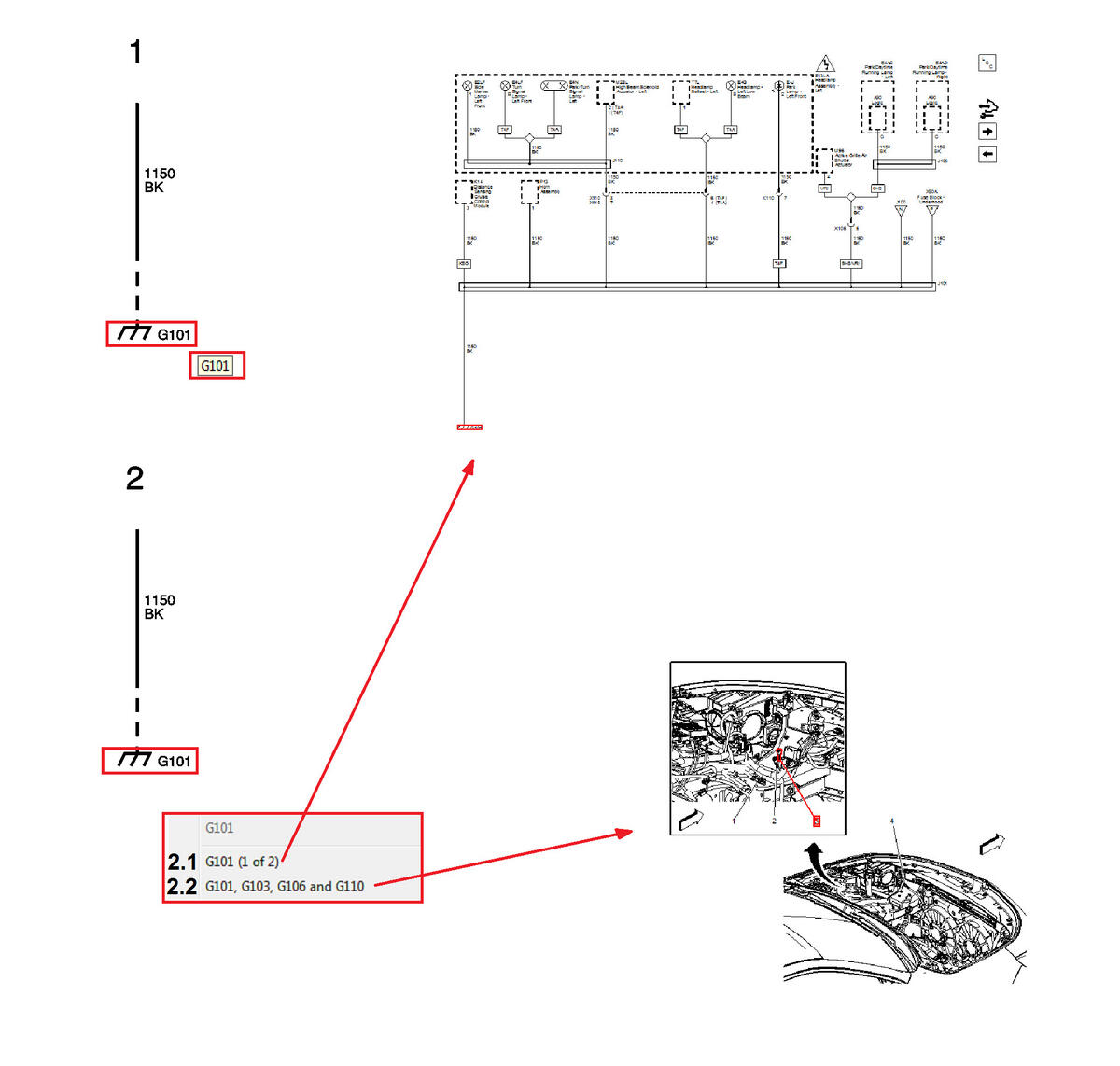

Fig 1: Ground Symbol/Name In Subsystem Wiring Schematics
GM3818918Courtesy of GENERAL MOTORS COMPANY
  1. Mouse-over:  Displays the ground number.
  2. Hotspot Link to Information:
    • When multiple links are available, a menu will appear when the link is selected. This menu includes all available links in a structured sequence.
    1. Links to the individual schematic page(s) within the Ground Distribution Wiring Schematics where the circuits are shown in detail. Additionally, when the target schematic is opened, the ground will be highlighted to draw visual attention.
    2. Links to the individual locator view(s) within the Ground Views and will show where the ground is located on the vehicle. Additionally, when the target view is opened, the ground and callout leader line/number will be highlighted to draw visual attention.
