Electronic Delivery Navigation Features

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

The schematics information has been enhanced for electronic delivery and the following explains the features that are now available.

The enhanced features are categorized into three types:

Mouse-overs, which are active when the mouse pointer is placed over the activated area
Hotspots (links to other information), which are active by placing the mouse pointer over the activated area and clicking the left mouse button
Hotspot Target Highlighting, which is when linking from one graphic to another graphic, the point of interest will be highlighted in red. This feature is available only when linking from a schematic graphic to a component locator/harness routing view or when linking from a schematic to an electrical center identification view

Depending on the amount of information that is linked to from a hotspot, the mouse pointer changes shape.

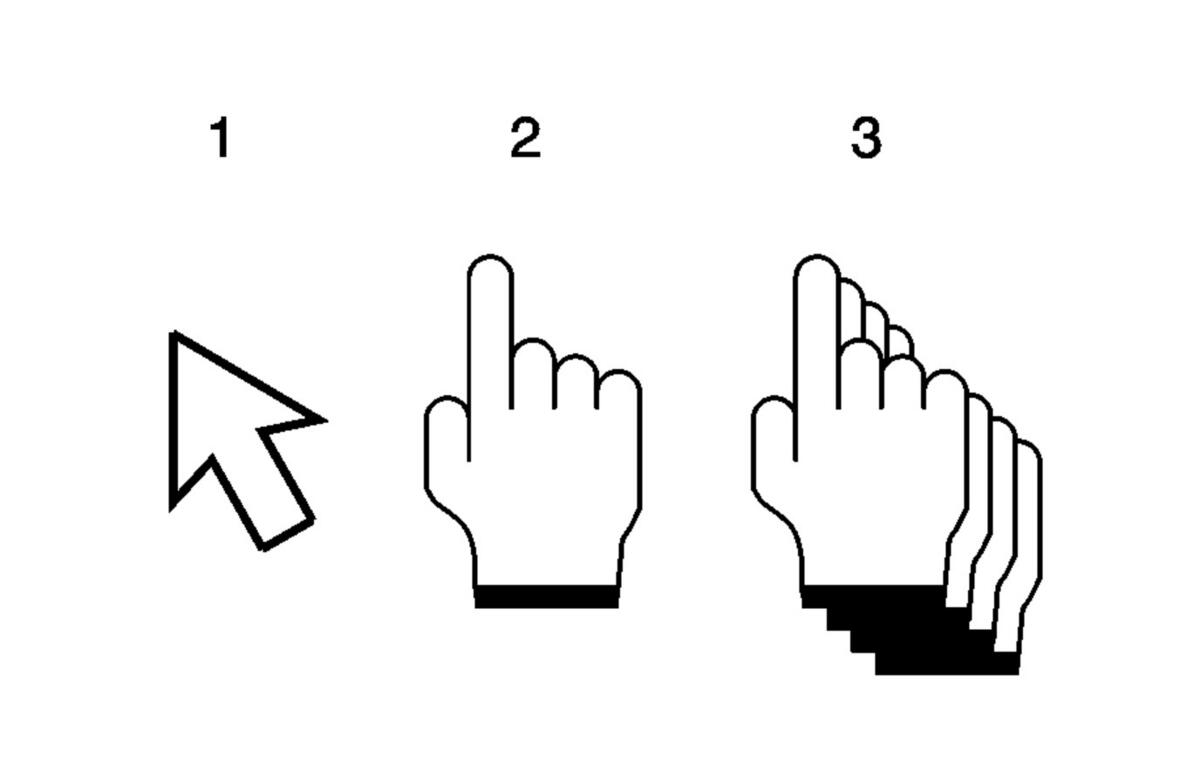

Fig 1: Mouse Pointer Changes Shape

Courtesy of GENERAL MOTORS COMPANY

Basic mouse pointer - this means there are no hotspots available, but there may be a mouse-over available.
Single hand pointer - this means there is a mouse-over and hotspot link to a single document. Clicking on these areas will automatically take you to the target link.
Multiple hand pointer - this means there is a mouse-over and hotspot link to a multiple document. Clicking on these areas will bring up a pop-up menu that will display all available links. You may then select one of the available links clicking on one of the displayed links.

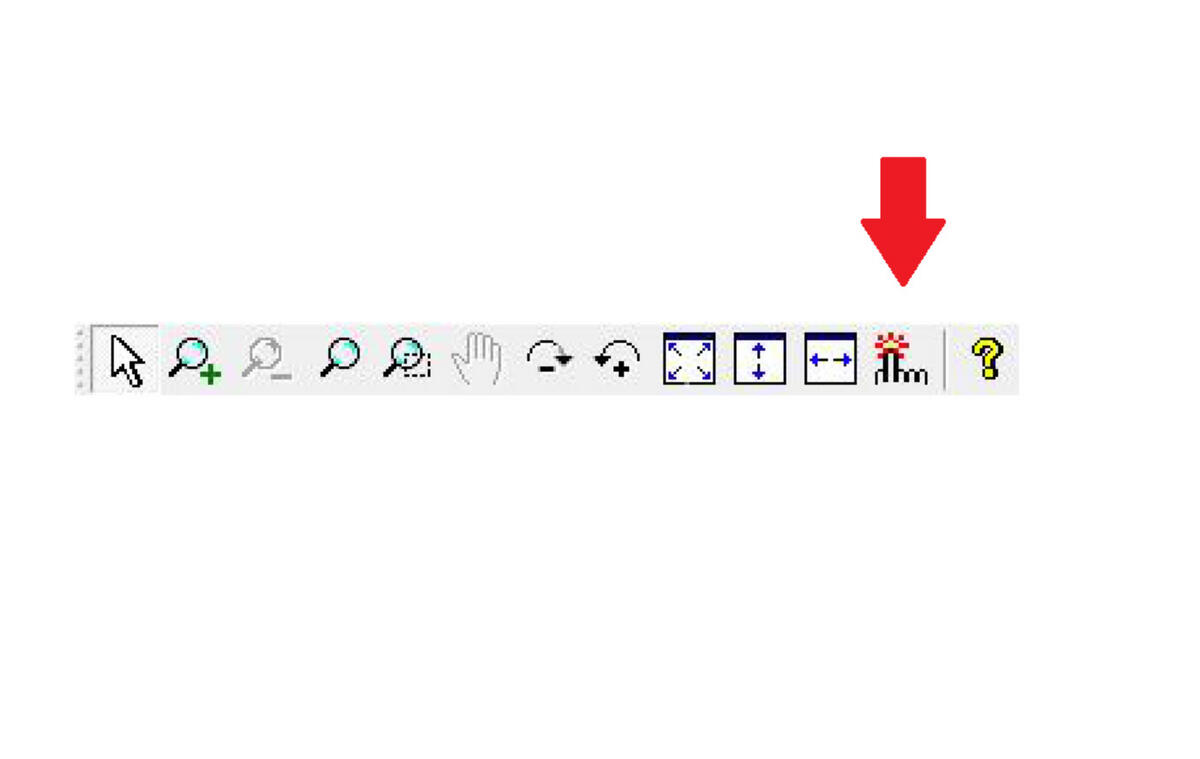

To see which areas of the schematic information have an available hotspot and/or a mouse-over, select and hold down the highlight hotspots button of the cgm viewer. This will highlight all areas of the graphic that have an available hotspot and/or a mouse-over in red. Once the button is released, the areas of the graphic will no longer be highlighted.

Fig 2: Available Hotspot And/Or A Mouse-Over In Red

Courtesy of GENERAL MOTORS COMPANY

Each type of schematic related information has some level of these features. The schematic related information consists of the following information types:

Schematics
Connector End Views
Component Locator Views
Harness Routing Views
Electrical Center Identification Views
Master Electrical Component List
Master Electrical Schematic Icons
Schematics RPO Code List
Circuit Number/Wire Colors
Wire Lines
Connector Cavities
