Component Name in Subsystem Schematics

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

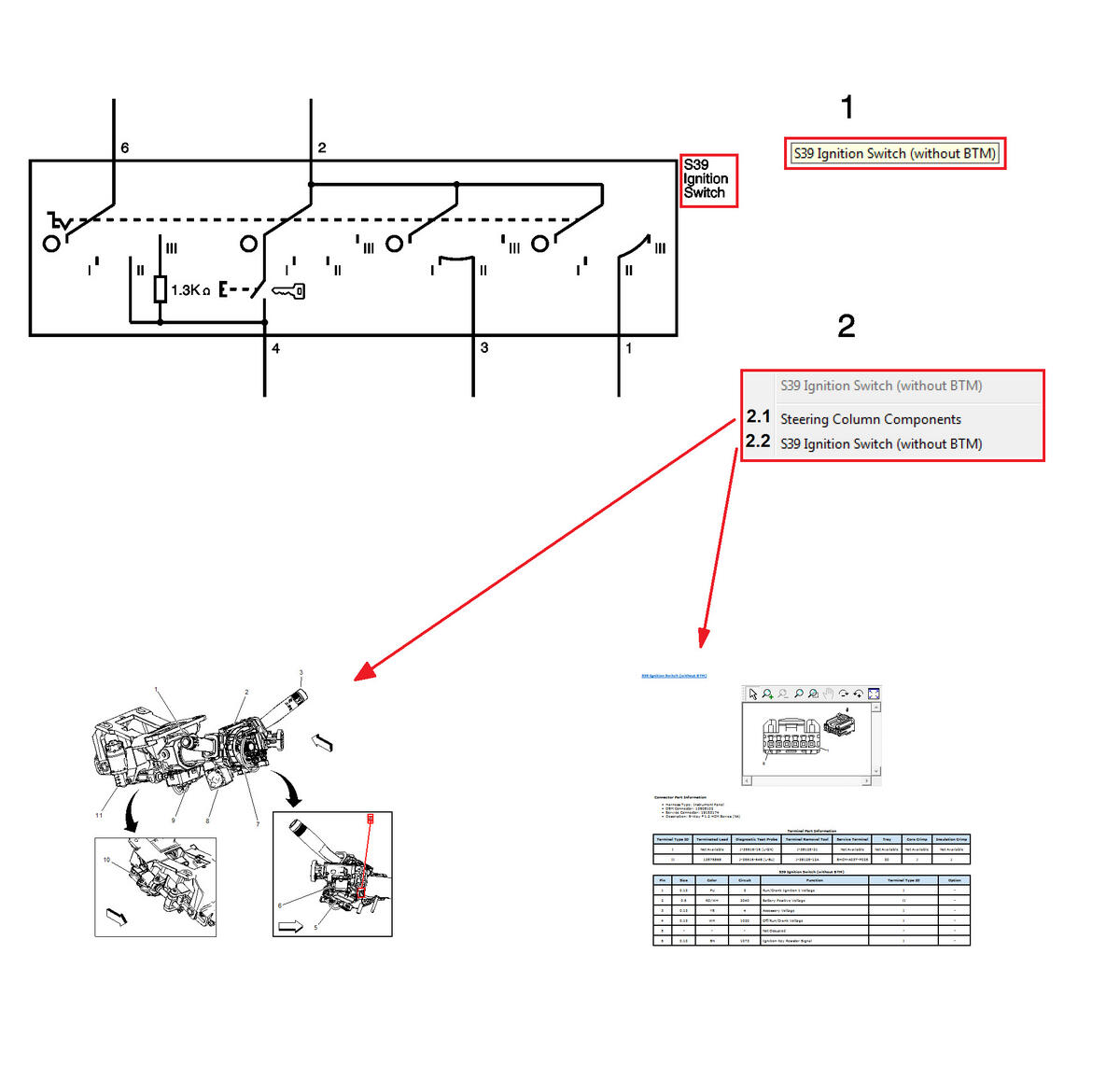

Fig 1: Component Name In Subsystem Wiring Schematics
GM3819141Courtesy of GENERAL MOTORS COMPANY
  1. Mouse-over:  Displays the code and name of the component.
  2. Hotspot Link to Information:
    • When multiple links are available, a menu will appear when the link is selected. This menu includes all available links in a structured sequence.
    1. Links to the individual locator view(s) within the applicable component view category and will show where the component is located on the vehicle. Additionally, when the target view is opened, the component and callout leader line/number will be highlighted to draw visual attention.
    2. Links to individual connector end view(s) within the Component Connector End Views.
