Right Rear Door Harness Routing

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

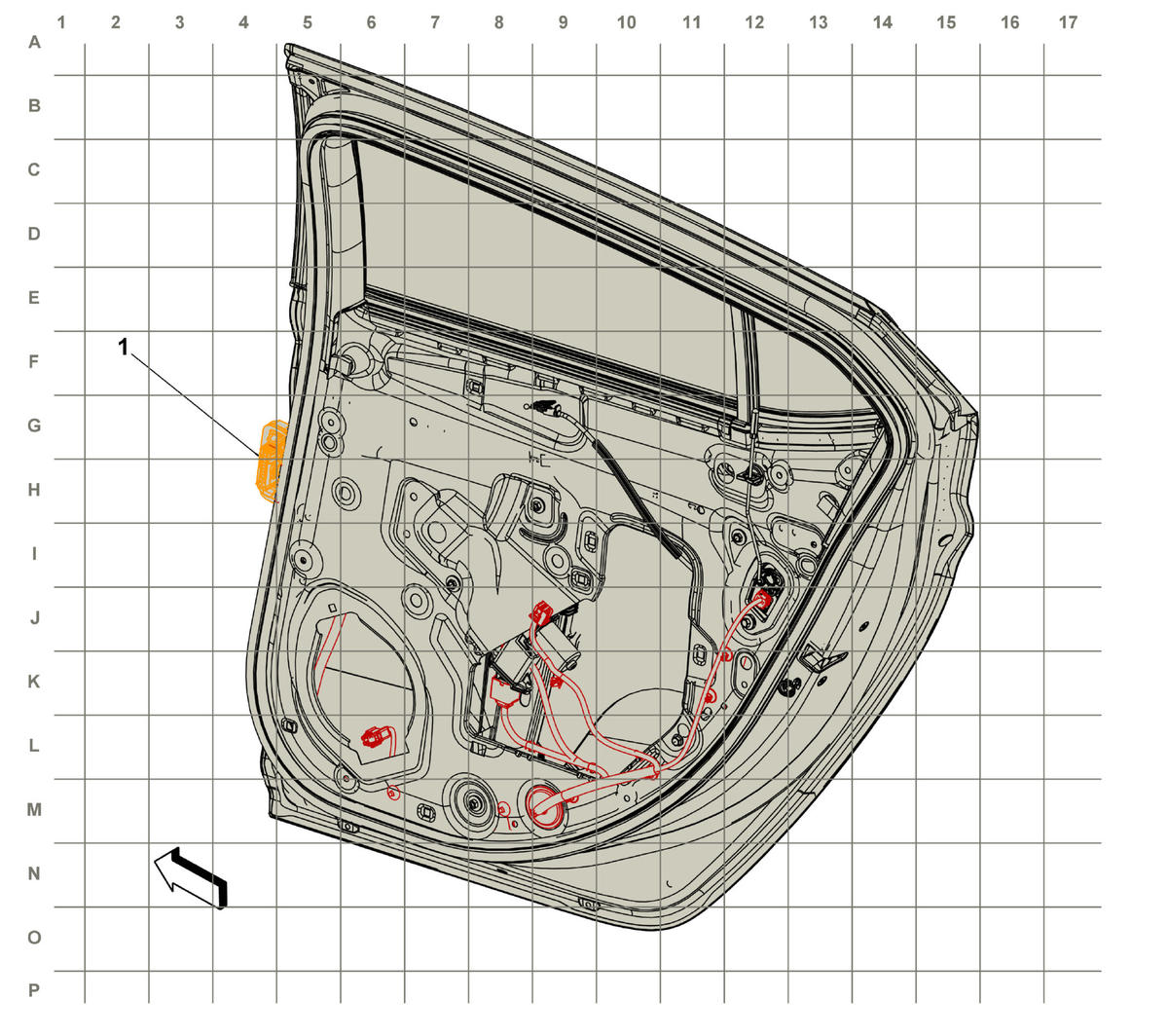

Fig 1: Right Rear Door Harness Routing
GM4041729Courtesy of GENERAL MOTORS COMPANY
Items
X800 Right Rear Door Harness to Body Harness X800 Body Harness to Right Rear Door Harness
