Liftgate Harness Routing

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

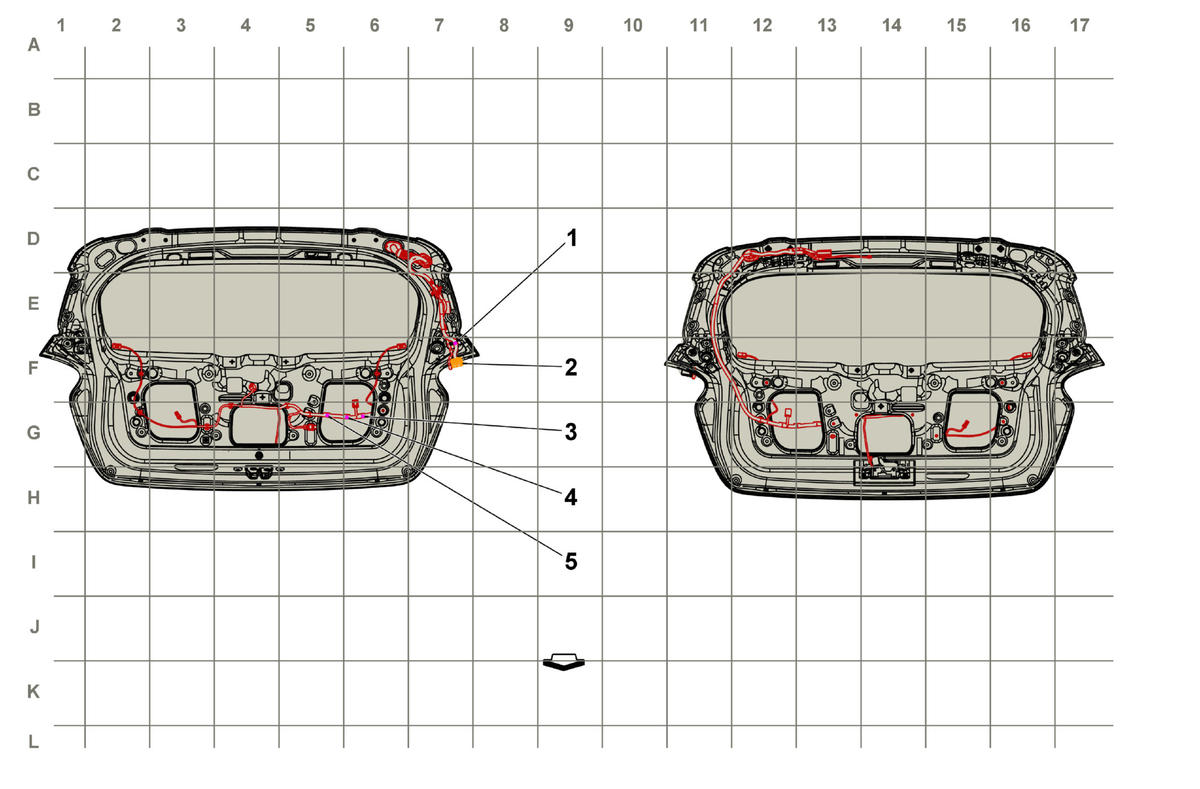

Fig 1: Liftgate Harness Routing
GM4041719Courtesy of GENERAL MOTORS COMPANY
Items
J900 Liftgate Harness
X900 Liftgate Harness to Body Harness X900 Liftgate Harness to Body Harness
J901 Liftgate Harness
J902 Rear License Plate Lamp Harness
J903 Rear License Plate Lamp Harness
