Fuel Tank Harness Routing

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

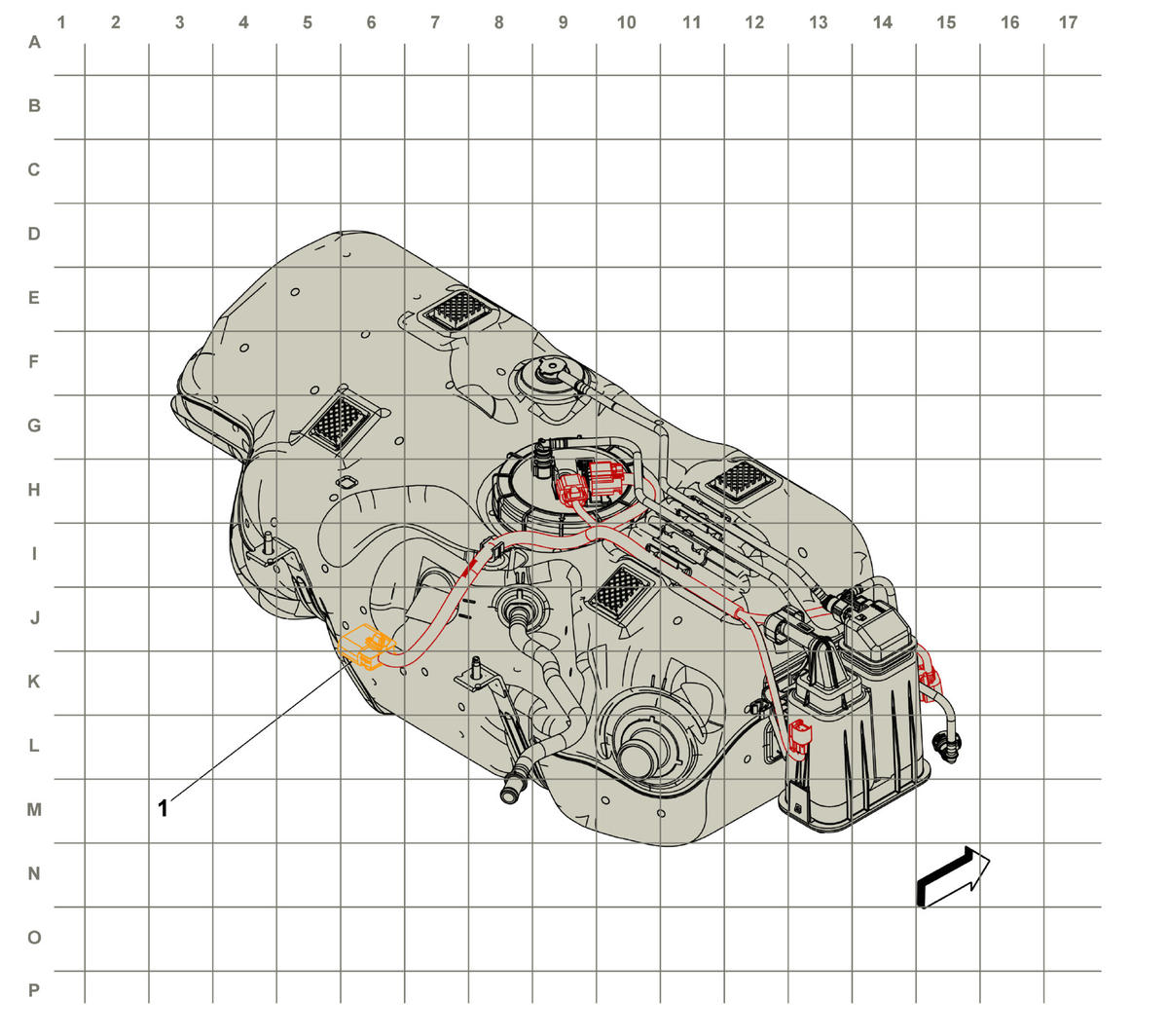

Fig 1: Fuel Tank Harness Routing
GM4041709Courtesy of GENERAL MOTORS COMPANY
Items
X350 Fuel Tank Harness to Body Harness X350 Body Harness to Fuel Tank Harness (-MAH/MBC)X350 Body Harness to Fuel Tank Harness (MAH/MBC)
