Ambient Air Temperature Sensor and Driver Information

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

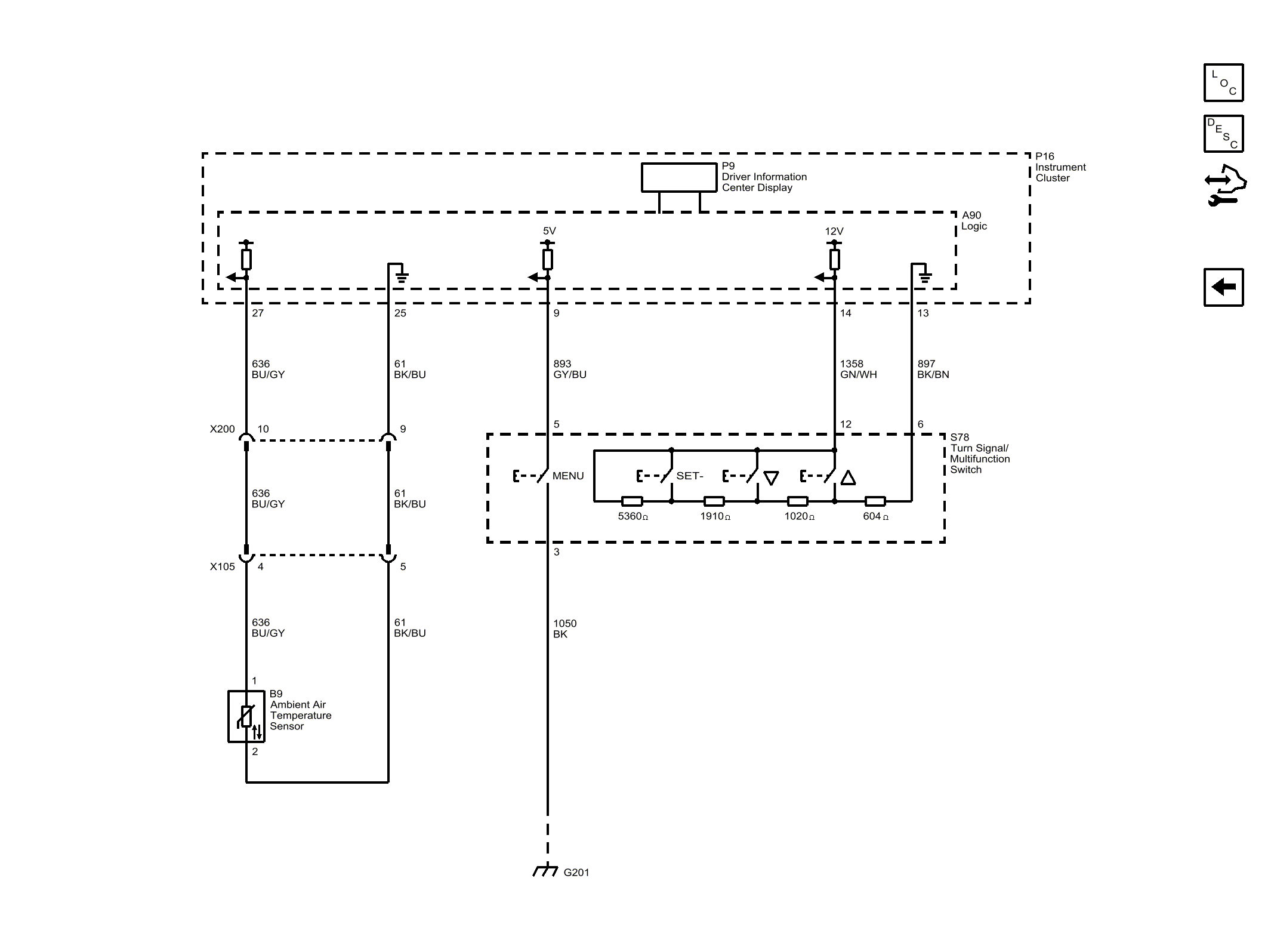

Fig 1: Ambient Air Temperature Sensor and Driver Information
GM4322516Courtesy of GENERAL MOTORS COMPANY
