Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
  2. Remove the I/P outer air outlet duct. Refer to Instrument Panel Outer Air Outlet Duct Replacement .
  3. Remove the windshield defroster duct assembly screws (1).

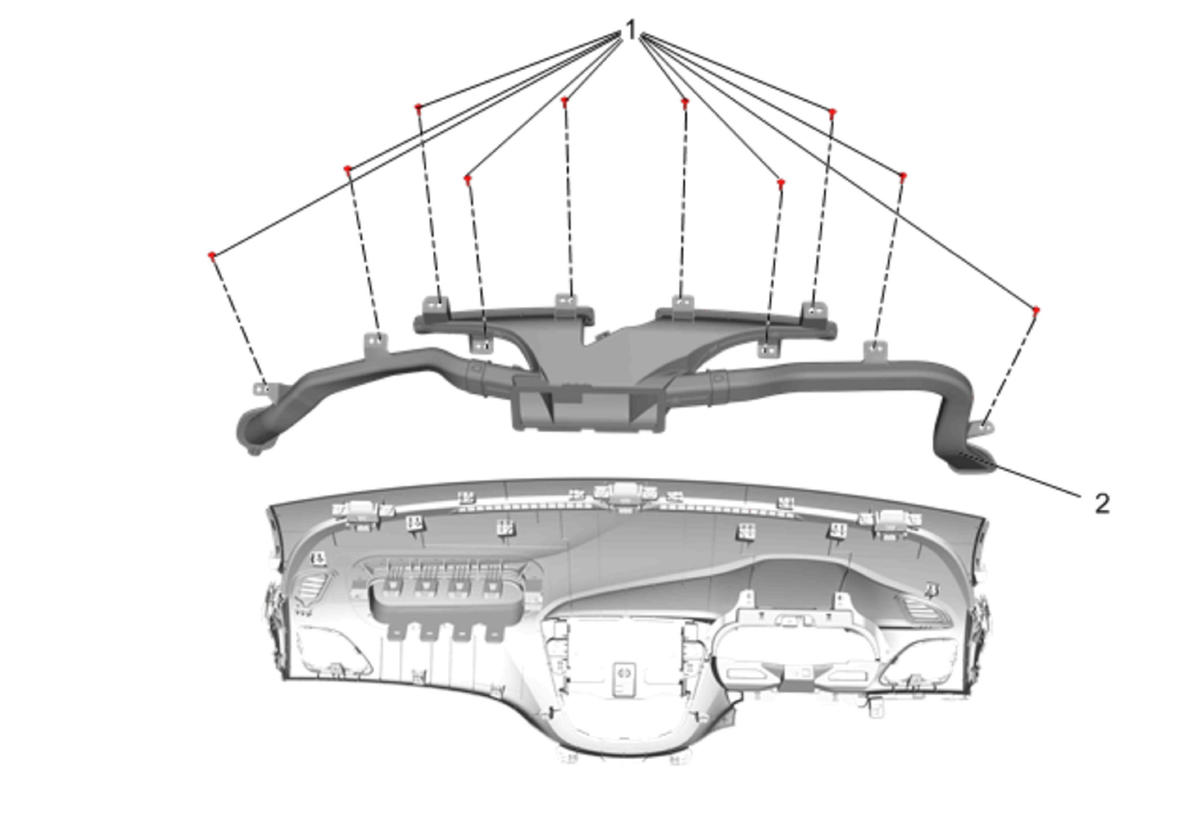

    Fig 1: Windshield Defroster Duct Assembly Screws And Defroster Duct Assembly
    GM4051954Courtesy of GENERAL MOTORS COMPANY
  4. Remove the windshield defroster duct assembly (2).
  5. Remove the windshield defroster nozzle (1).

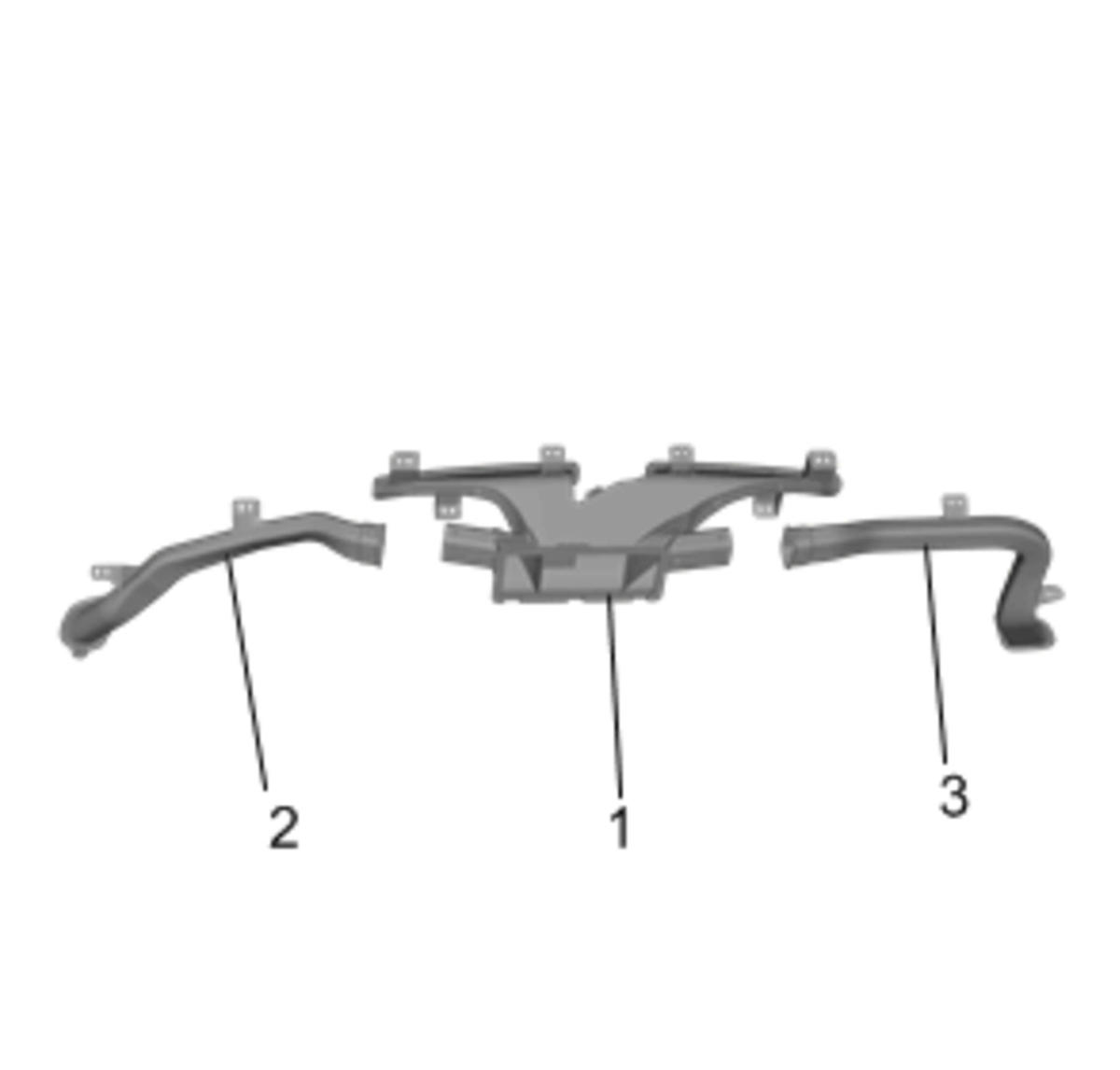

    Fig 2: Windshield Defroster Nozzle, Defroster Outlet Duct Right Side And Left Side
    GM4051955Courtesy of GENERAL MOTORS COMPANY
  6. Remove the windshield defroster outlet duct right side (2) and left side (3).
