Instrument Panel Center Air Outlet Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

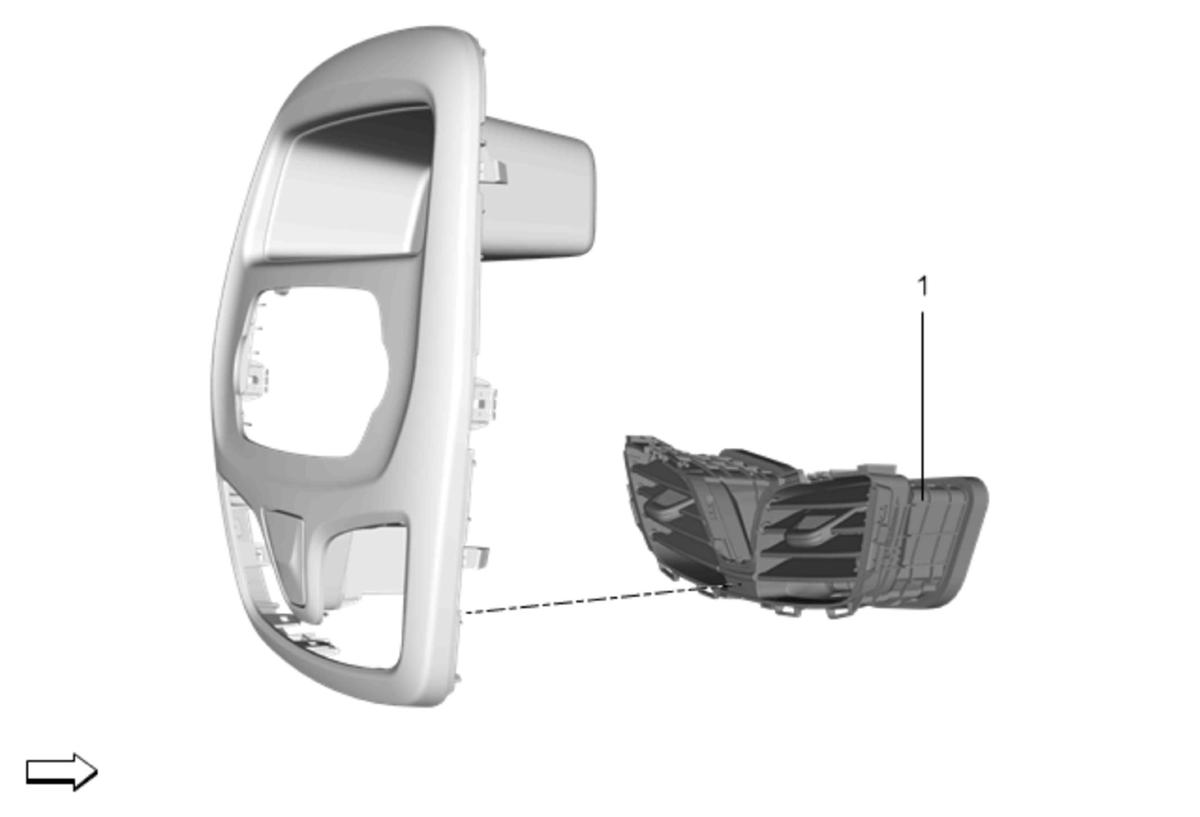

Fig 1: Instrument Panel Center Air Outlet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement . Disconnect the electrical connector.
1	Instrument Panel Center Air Outlet NOTE: Carefully use a flat-bladed screwdriver to remove the inner air outlet nozzle.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
Disconnect the electrical connector.

Instrument Panel Center Air Outlet

NOTE: Carefully use a flat-bladed screwdriver to remove the inner air outlet nozzle.
