Blower Motor Resistor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

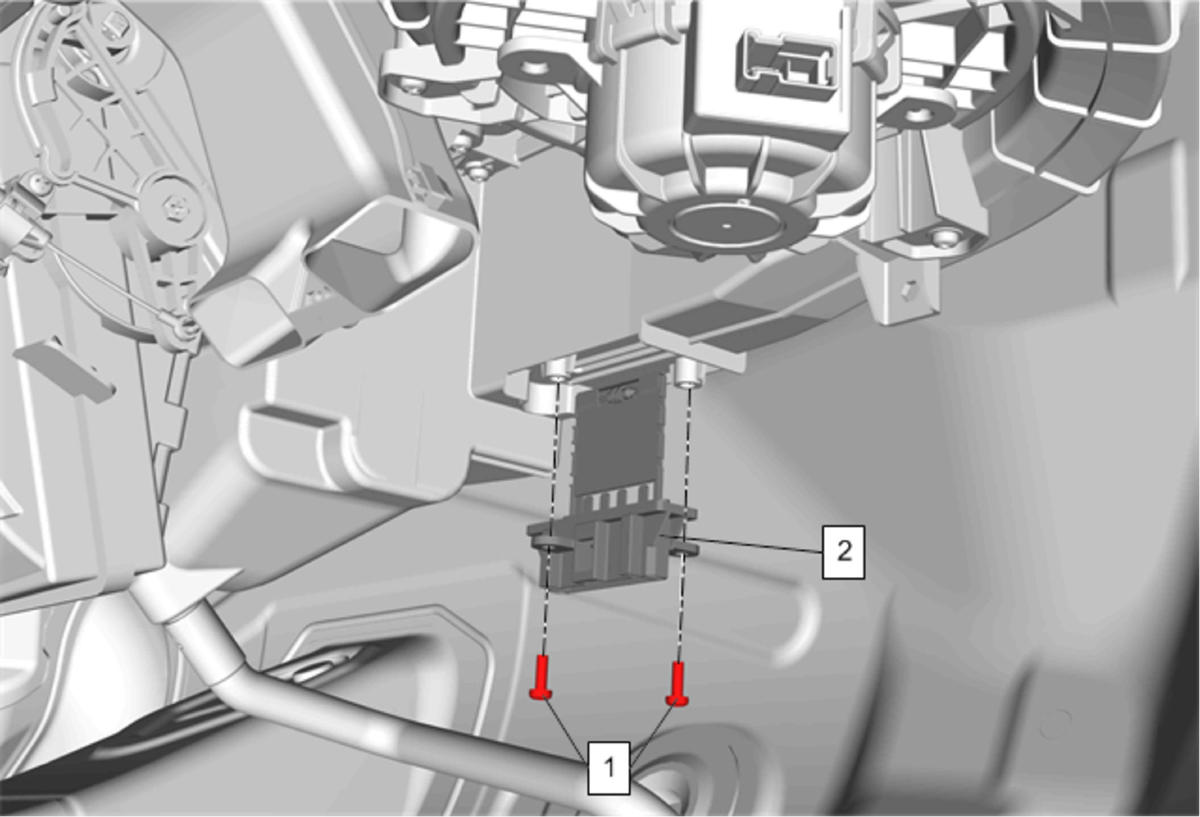

Fig 1: Blower Motor Resistor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the blower motor resistor electrical connector.
1	Blower Motor Resistor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
2	Blower Motor Resistor

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the blower motor resistor electrical connector.

Blower Motor Resistor Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
1.2 N.m (11 lb in)

Blower Motor Resistor
