Blower Motor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

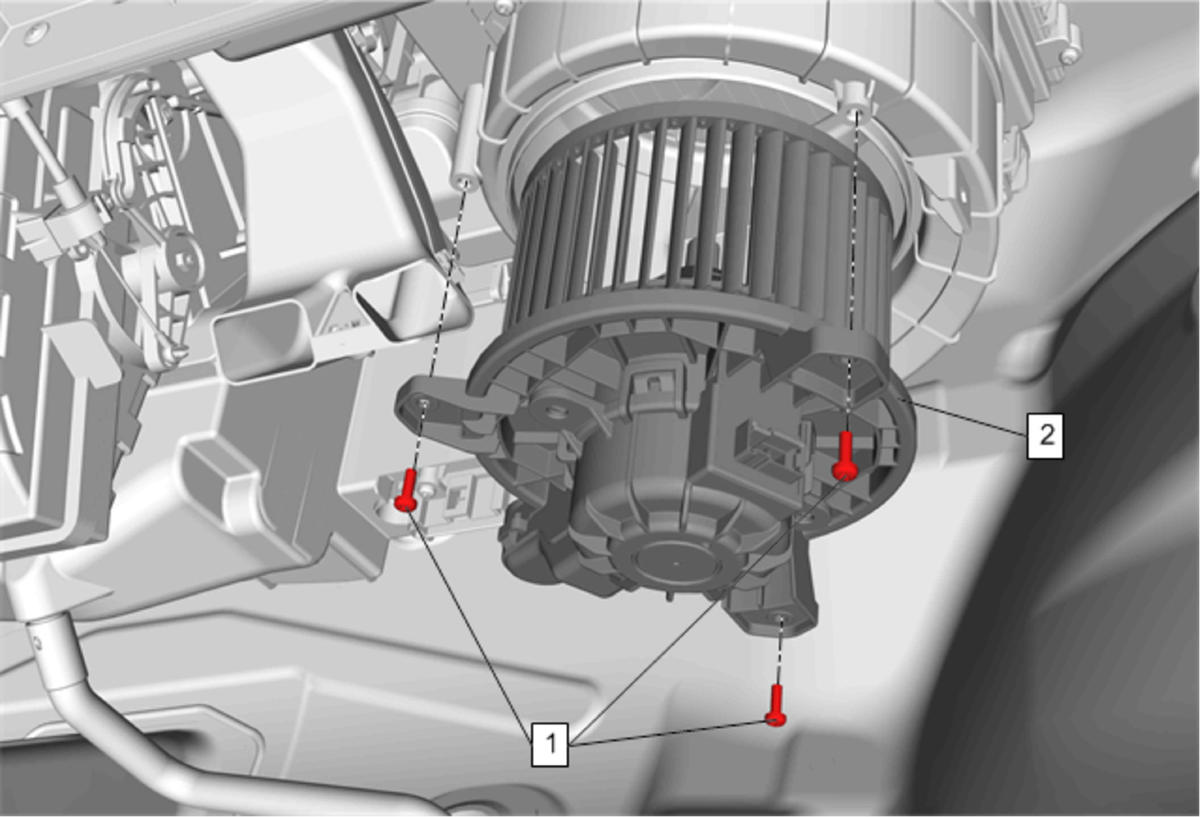

Fig 1: Blower Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the electrical connector.
1	Blower Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
2	Blower Motor

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the electrical connector.

Blower Motor Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
1.2 N.m (11 lb in)

Blower Motor
