Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
  2. Remove the service port valve core (1) using the GE-46246  remover.

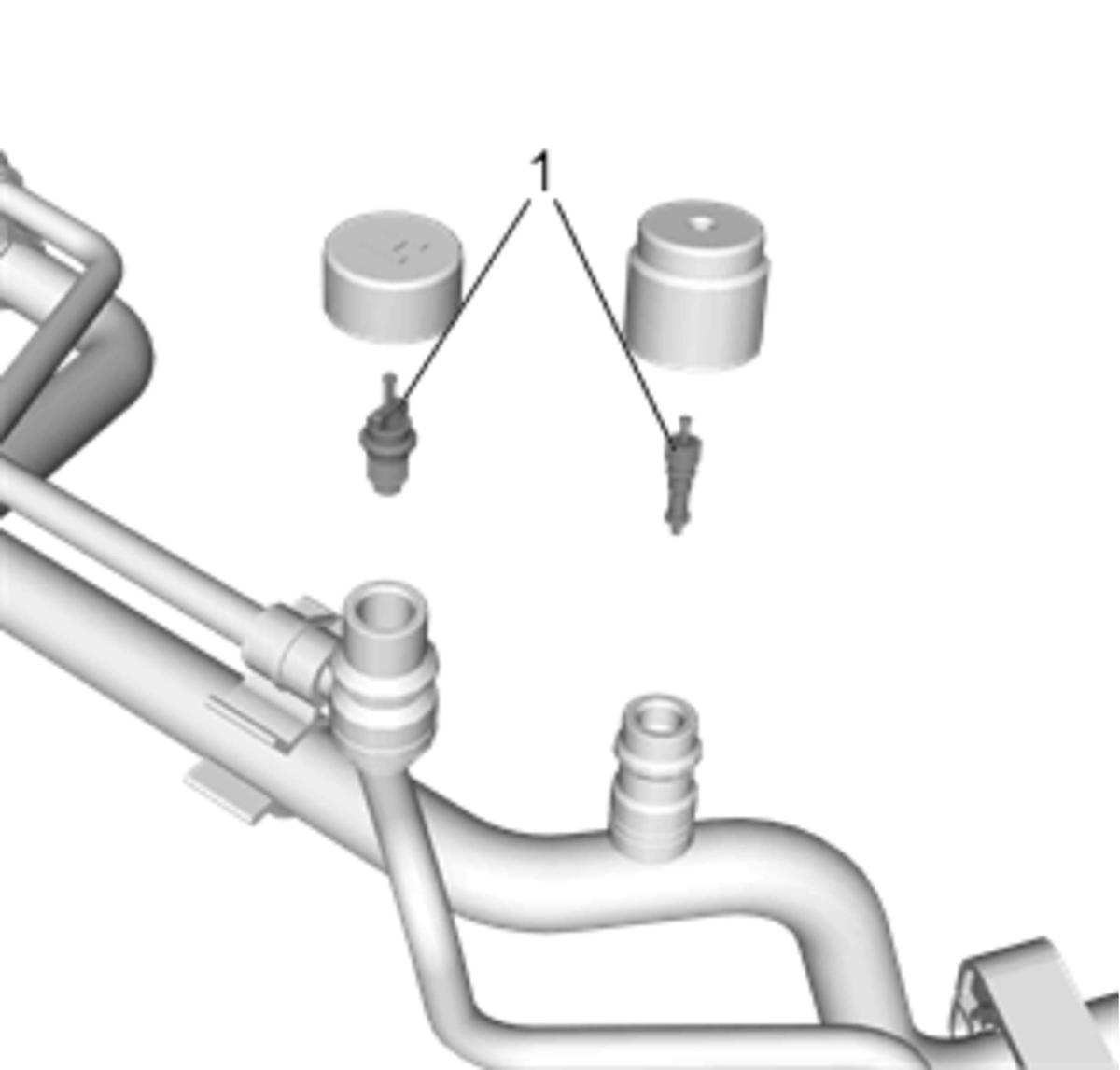

    Fig 1: Service Port Valve Cores
    GM4051931Courtesy of GENERAL MOTORS COMPANY
