Air Conditioning Evaporator and Blower Module Drain Hose Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to HVAC Module Drain Tube Caution
. Preliminary Procedure Loosen floor panel carpet at passenger side. |
|

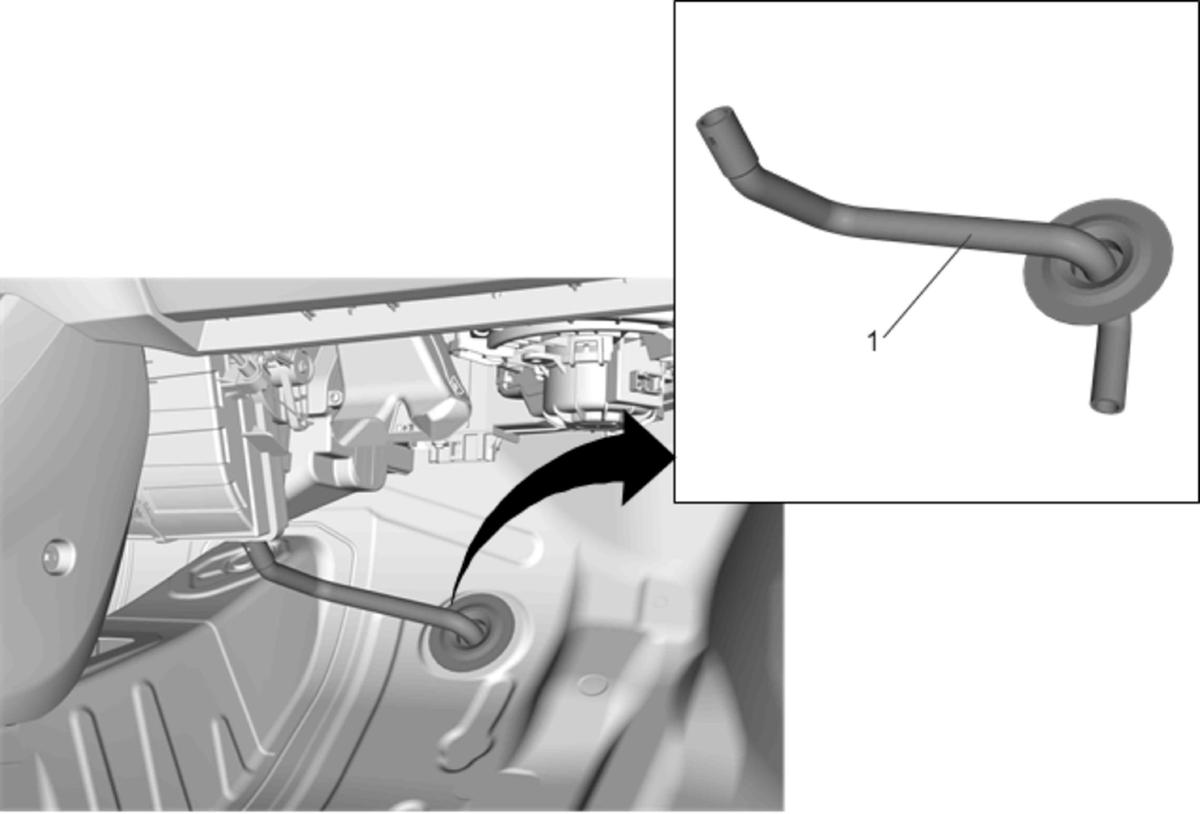

| 1 | Air Conditioning Evaporator and Blower Module Drain Hose Procedure Release and pull off the drain hose from the HVAC module assembly and unsnap the drain fitting grommet from the floor panel. |
