Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Battery Negative Cable Disconnection and Connection - Disconnect the battery negative cable.
  2. Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf)  - Recover the refrigerant.
  3. Front Compartment Insulator Replacement - Remove
  4. Open the hood and check the air conditioning compressor tube (1) position.

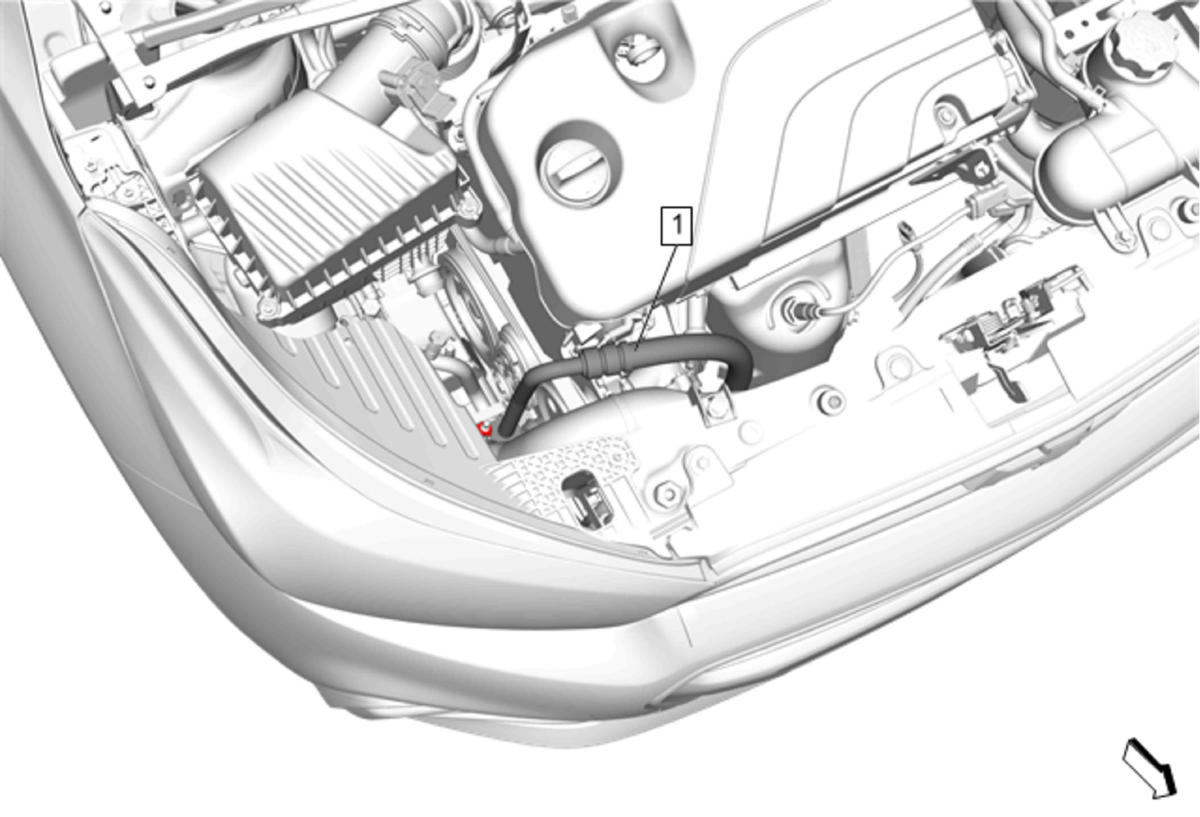

    Fig 1: Air Conditioning Compressor Tube
    GM4229878Courtesy of GENERAL MOTORS COMPANY
  5. Remove the air conditioning compressor tube nut (1).

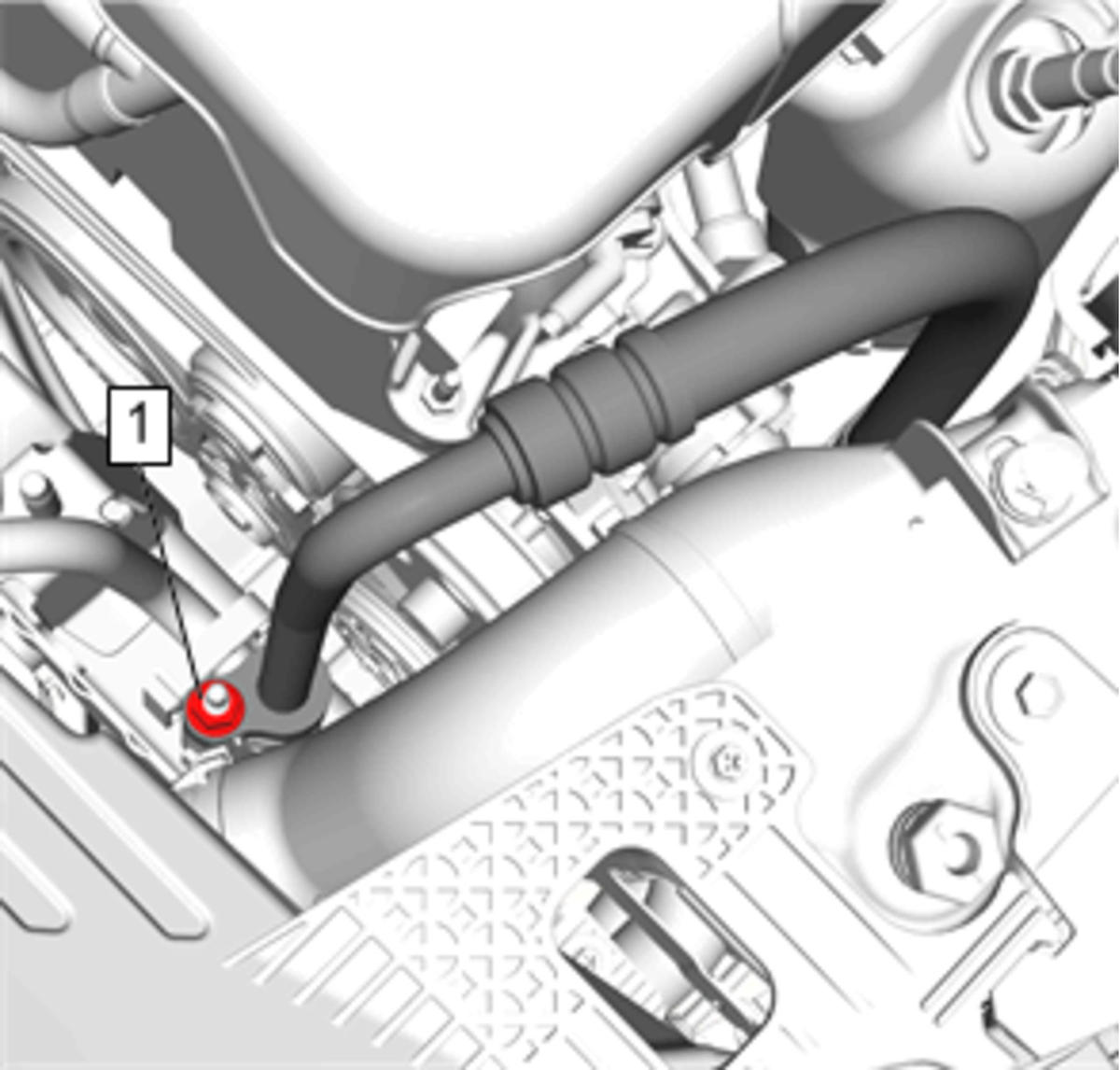

    Fig 2: Air Conditioning Compressor Tube Nut
    GM4229881Courtesy of GENERAL MOTORS COMPANY
  6. Lift the vehicle.

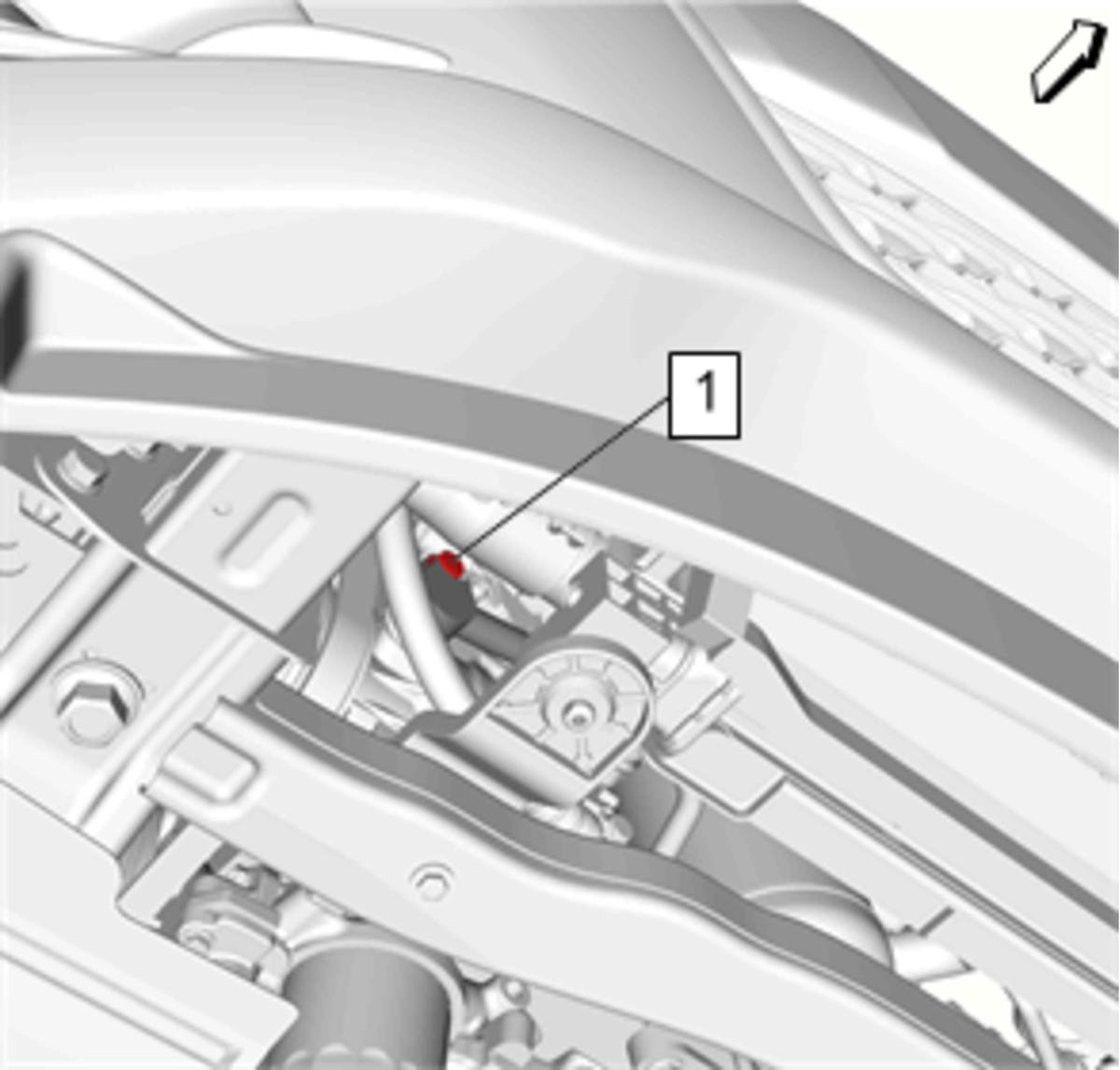

    Fig 3: Air Conditioning Compressor Tube Bolt
    GM4229882Courtesy of GENERAL MOTORS COMPANY
  7. Remove the air conditioning compressor tube bolt (1).
  8. Remove the air conditioning compressor tube (1).

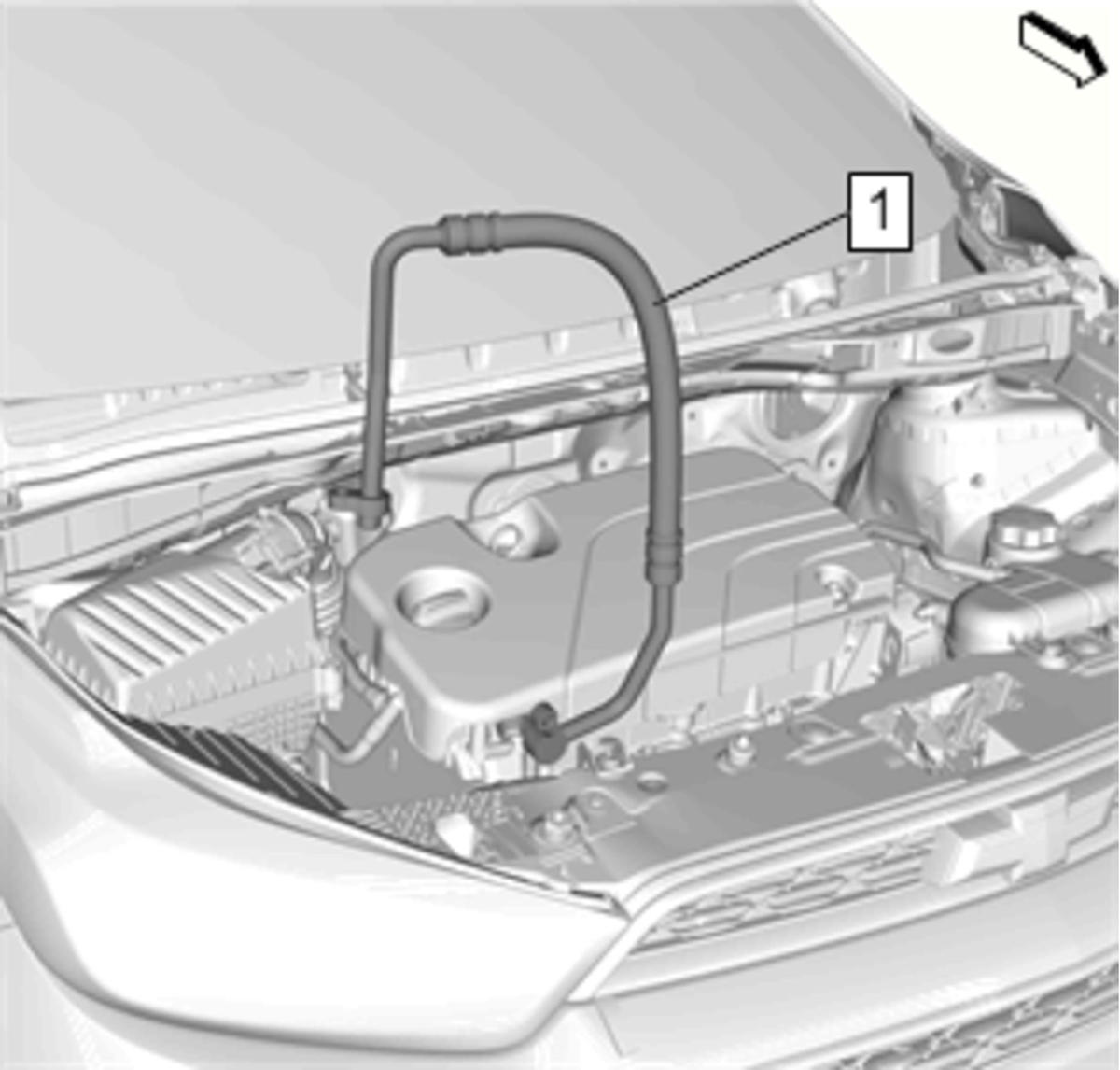

    Fig 4: Air Conditioning Compressor Tube
    GM4229883Courtesy of GENERAL MOTORS COMPANY
