Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

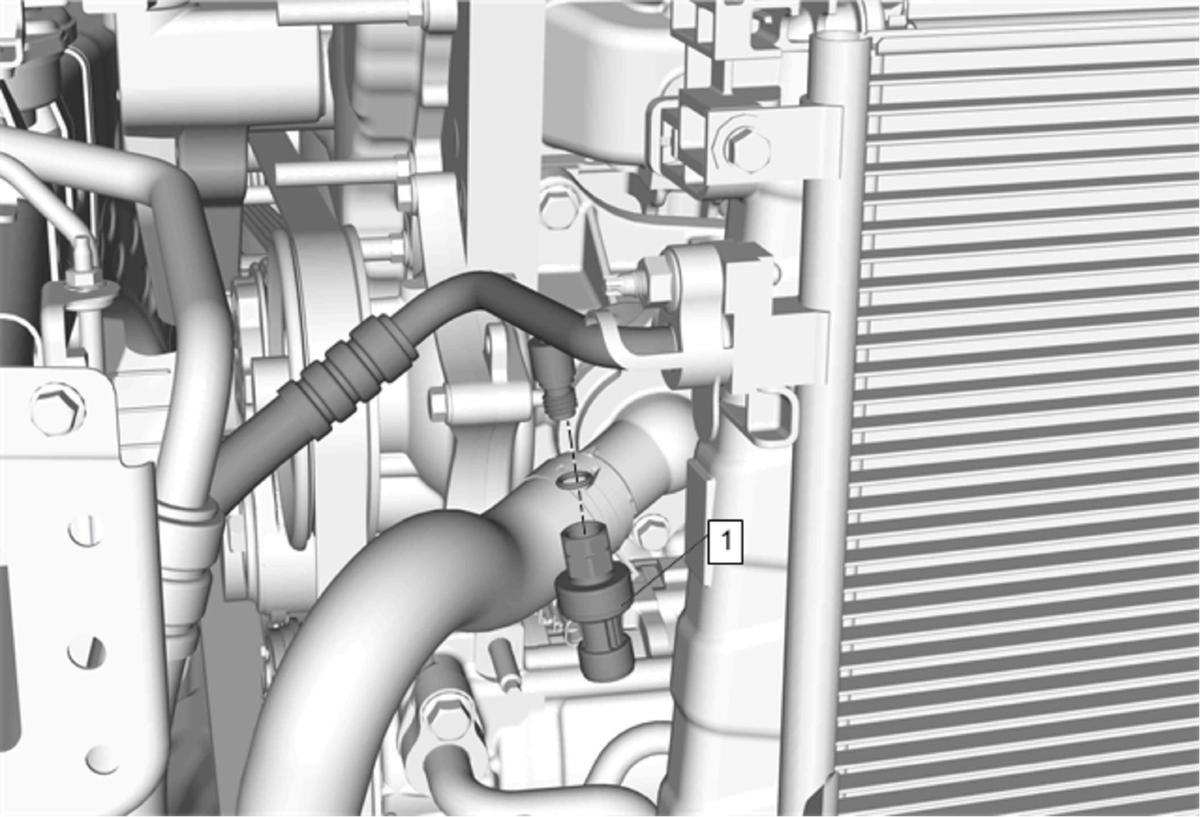

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor
GM4051925Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
  2. Unclip the electrical wiring harness retaining clips around air conditioning refrigerant pressure sensor.
1 Air Conditioning Refrigerant Pressure Sensor
CAUTION: Refer to Fastener Caution .

Procedure

  1. Disconnect the air conditioning refrigerant pressure sensor connector.
  2. Remove and discard the O-ring and replace with NEW. Refer to Air Conditioning O-Ring Seal Replacement .

Tighten
8 N.m (71 lb in)
