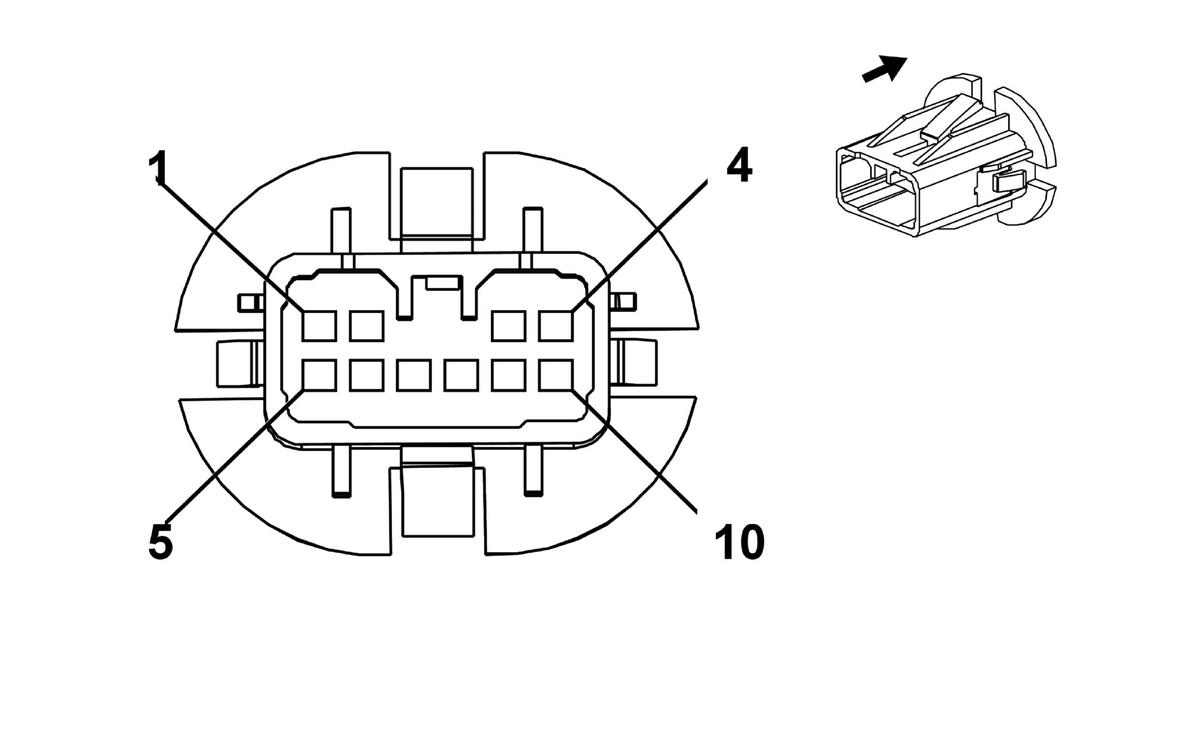

X700 Body Harness to Left Rear Door Harness

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.


Connector Part Information Harness Type: Body OEM Connector: MG651056 Service Connector: 88952443 Description: 10-Way F 090 II Series (NA)	Connector Part Information Harness Type: Left Rear Door OEM Connector: MG622072 Service Connector: Service by Harness - See Part Catalog Description: 10-Way M 090 II Series (NA)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13580050	J-35616-18 (BK)	J-38125-553	7116-4021	Yazaki 11	2	A
II	13580050	J-35616-18 (BK)	J-38125-553	7116-4021	Yazaki 11	E	A
III	13584467	J-35616-18 (BK)	J-38125-553	7116-4020	Yazaki 11	E	C
IV	Not Required	J-35616-19 (BK)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.75	GN/BK	116	II	UQ3	Left Rear Speaker Signal (-)	1	0.75	GN/BK	116	IV	UQ3
2	0.75	GN	199	II	UQ3	Left Rear Speaker Control (+)	2	0.75	GN	199	IV	UQ3
3	-	-	-	-	-	Not Occupied	3	-	-	-	-	-
4	0.5	GY	295	III	AU3	Door Lock Actuator Lock Control	4	0.5	GY	295	IV	AU3
5	0.5	BN/YE	294	III	AU3	Door Lock Actuator Unlock Control	5	0.5	BN/YE	294	IV	AU3
6 - 7	-	-	-	-	-	Not Occupied	6 - 7	-	-	-	-	-
8	1.5	GN/GY	1185	I	A33	Power Window Switch Left Rear Up Signal	8	1.5	GN/GY	1185	IV	A33
9	1.5	BU/WH	1307	I	A33	Power Window Master Switch Lockout Signal	9	1.5	BU/WH	1307	IV	A33
10	1.5	BN/BU	1187	I	A33	Power Window Switch Left Rear Down Signal	10	1.5	BN/BU	1187	IV	A33
