Engine Components - Left Rear (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

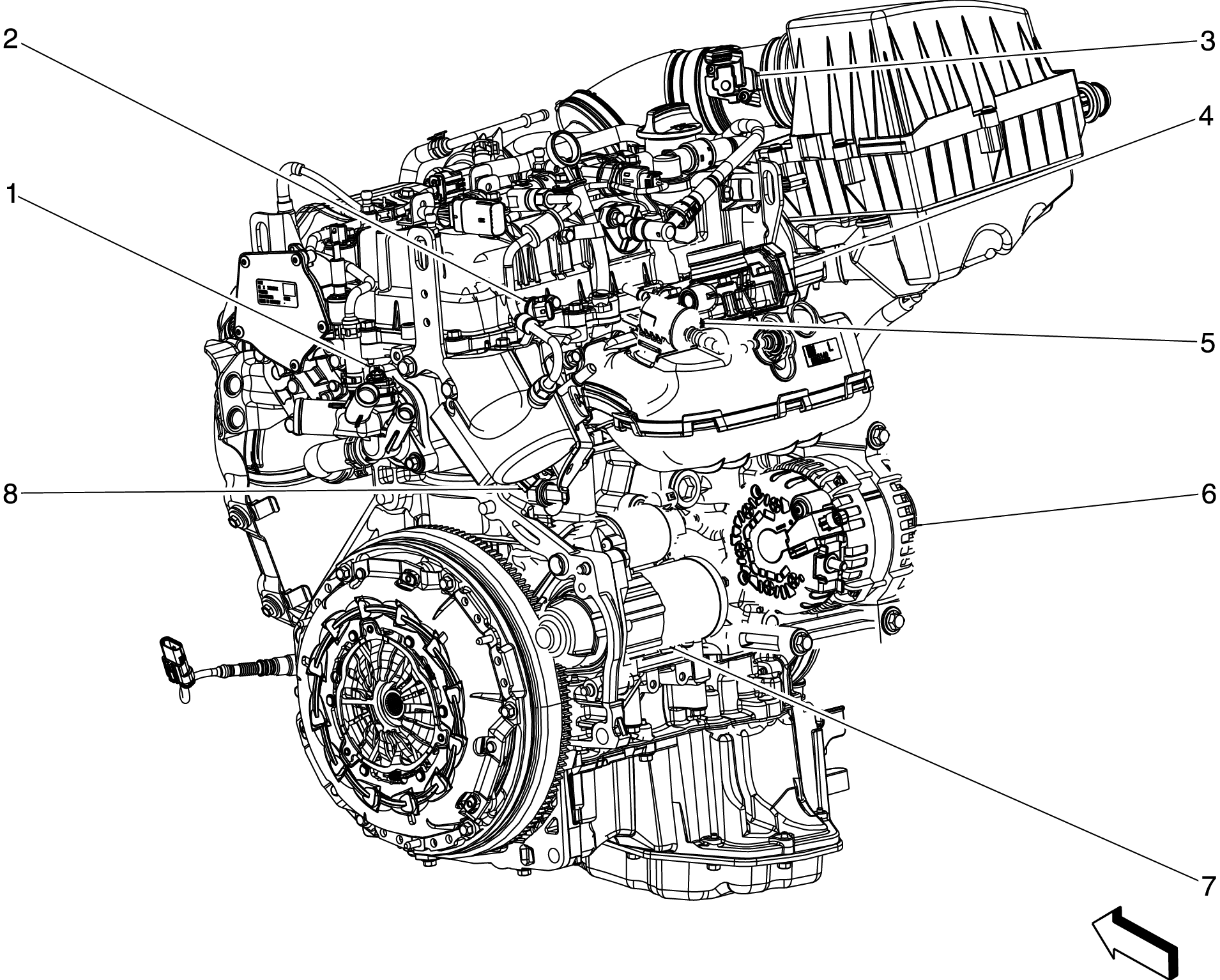

Engine Components - Left Rear (L5Q)
| Items |
|---|
| 1. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 2. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 3. B75C Multifunction Intake Air Sensor (L5Q or LV7) B75B Mass Air Flow/Intake Air Temperature Sensor |
| 4. Q38 Throttle Body Q38 Throttle Body |
| 5. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 6. G13 Generator G13 Generator X1G13 Generator X2 |
| 7. M64 Starter Motor M64 Starter Motor |
| 8. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
