Exhaust Rear Muffler Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

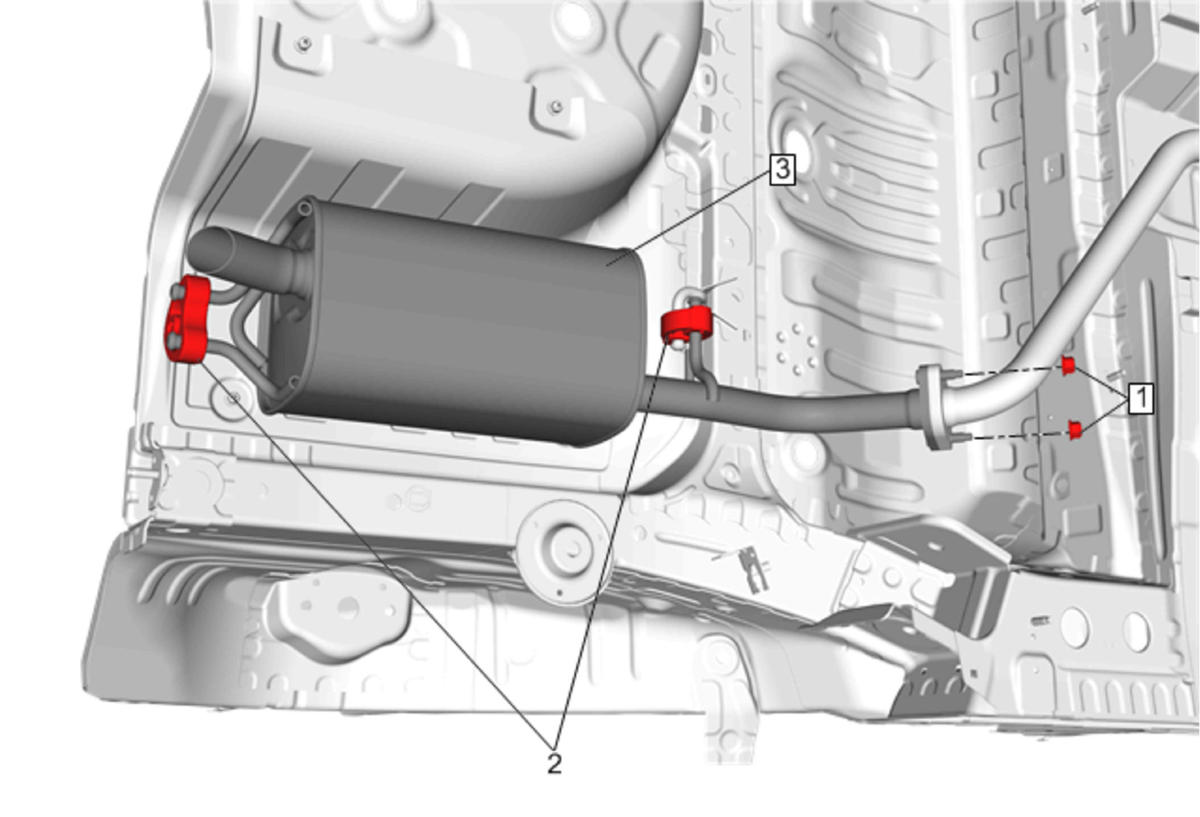

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Exhaust Rear Muffler to Exhaust Muffler Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 43 N.m (32 lb ft) |
| 2 | Exhaust Rear Muffler Hanger (Qty: 2) |
| 3 | Exhaust Rear Muffler |
