Exhaust Front Heat Shield Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

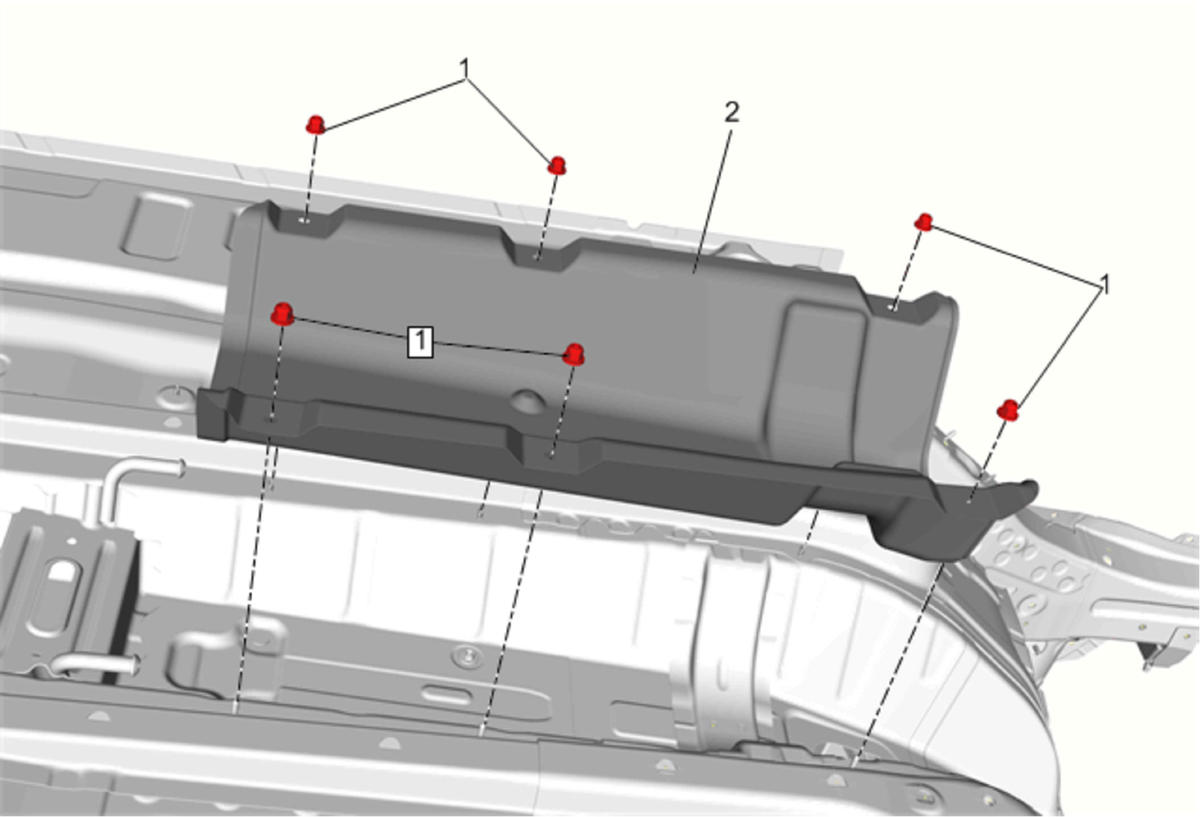

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q) Exhaust Muffler Replacement (LV7) . |
|
| 1 | Exhaust Front Heat Shield Nut (Qty: 6)
CAUTION:
Refer to Fastener Caution
. Tighten 1 N.m (9 lb in) |
| 2 | Exhaust Front Heat Shield |
