Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

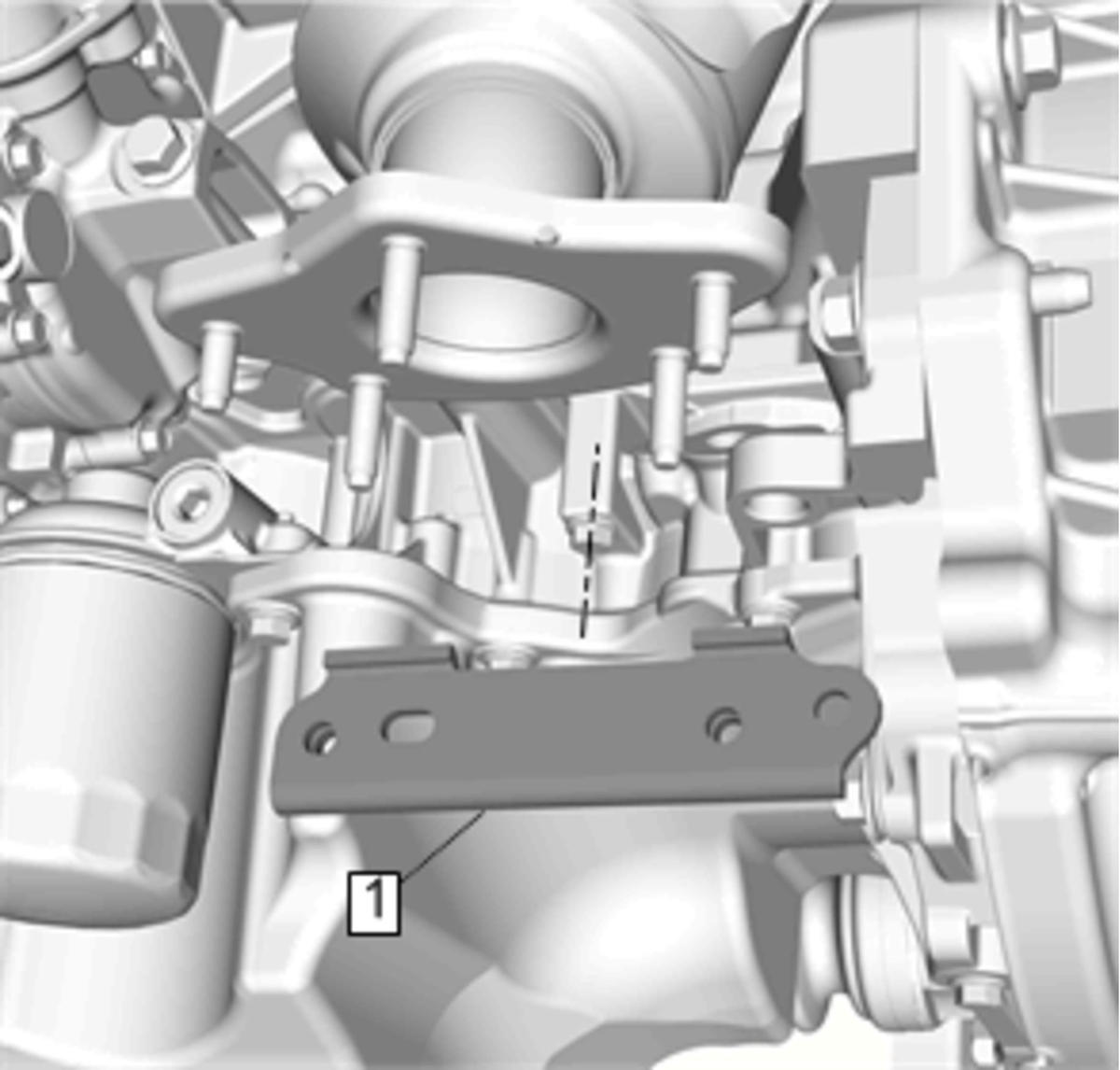

  1. Exhaust Front Bracket (1) - Install
    Fig 1: Exhaust Front Bracket
    GM4748859Courtesy of GENERAL MOTORS COMPANY

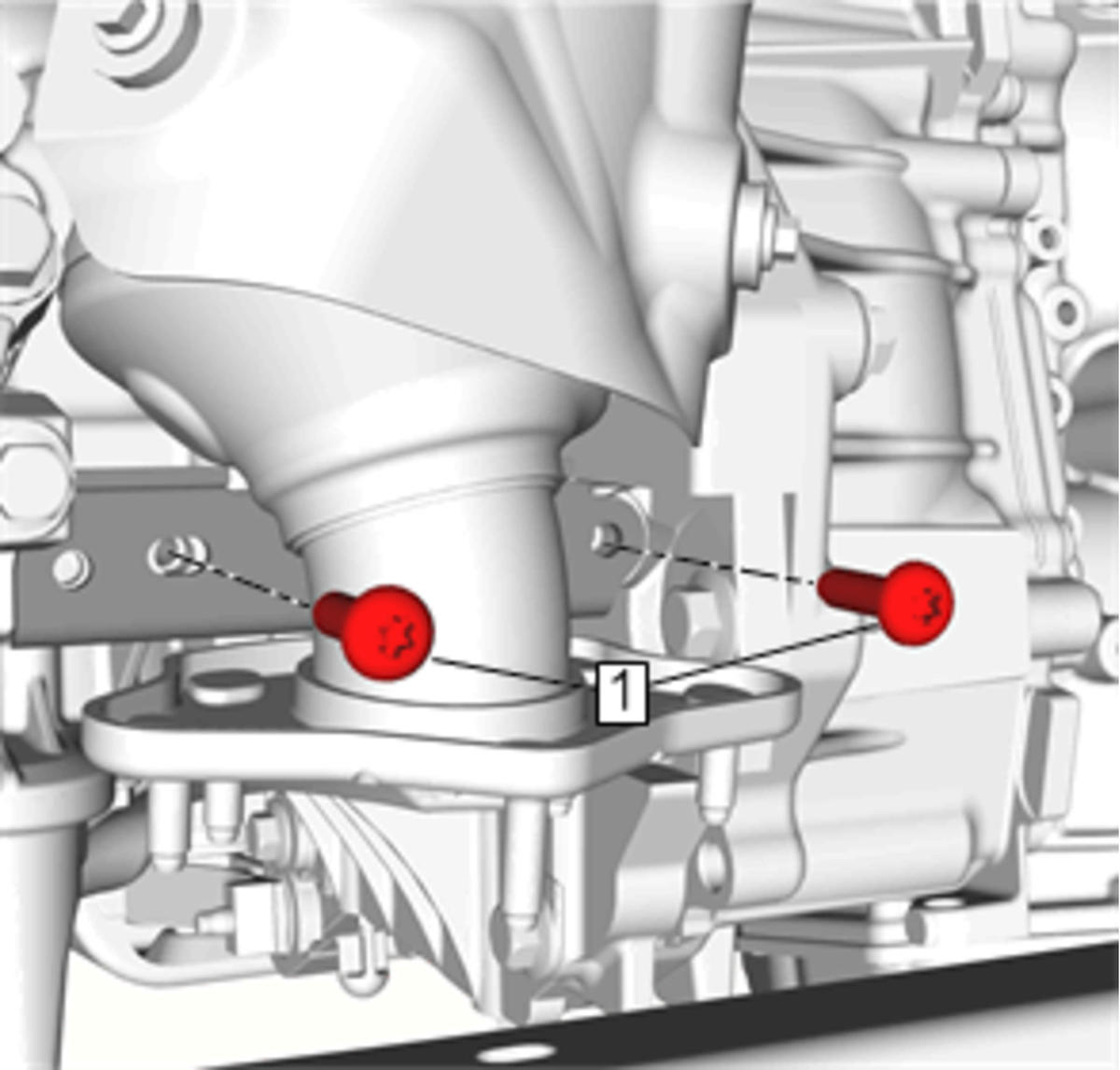

  2. Exhaust Front Bracket Screw (1) - Install and tighten [2x] 22 N.m (16 lb ft)
    Fig 2: Exhaust Front Bracket Screw
    GM4748858Courtesy of GENERAL MOTORS COMPANY
  3. Catalytic Converter Brace - Install - Catalytic Converter Brace Replacement
  4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
