Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

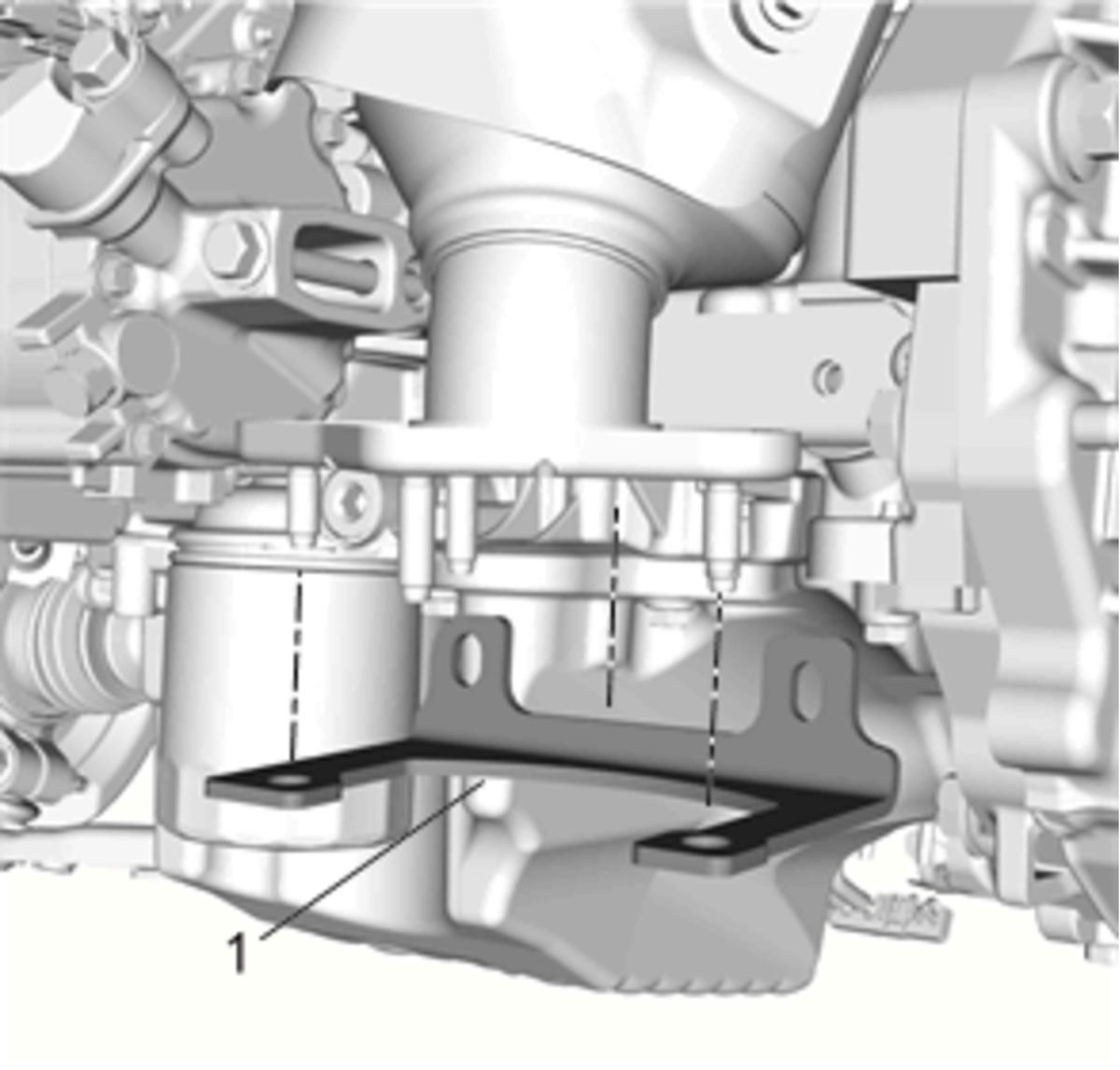

- Catalytic Converter Brace (2) - Install

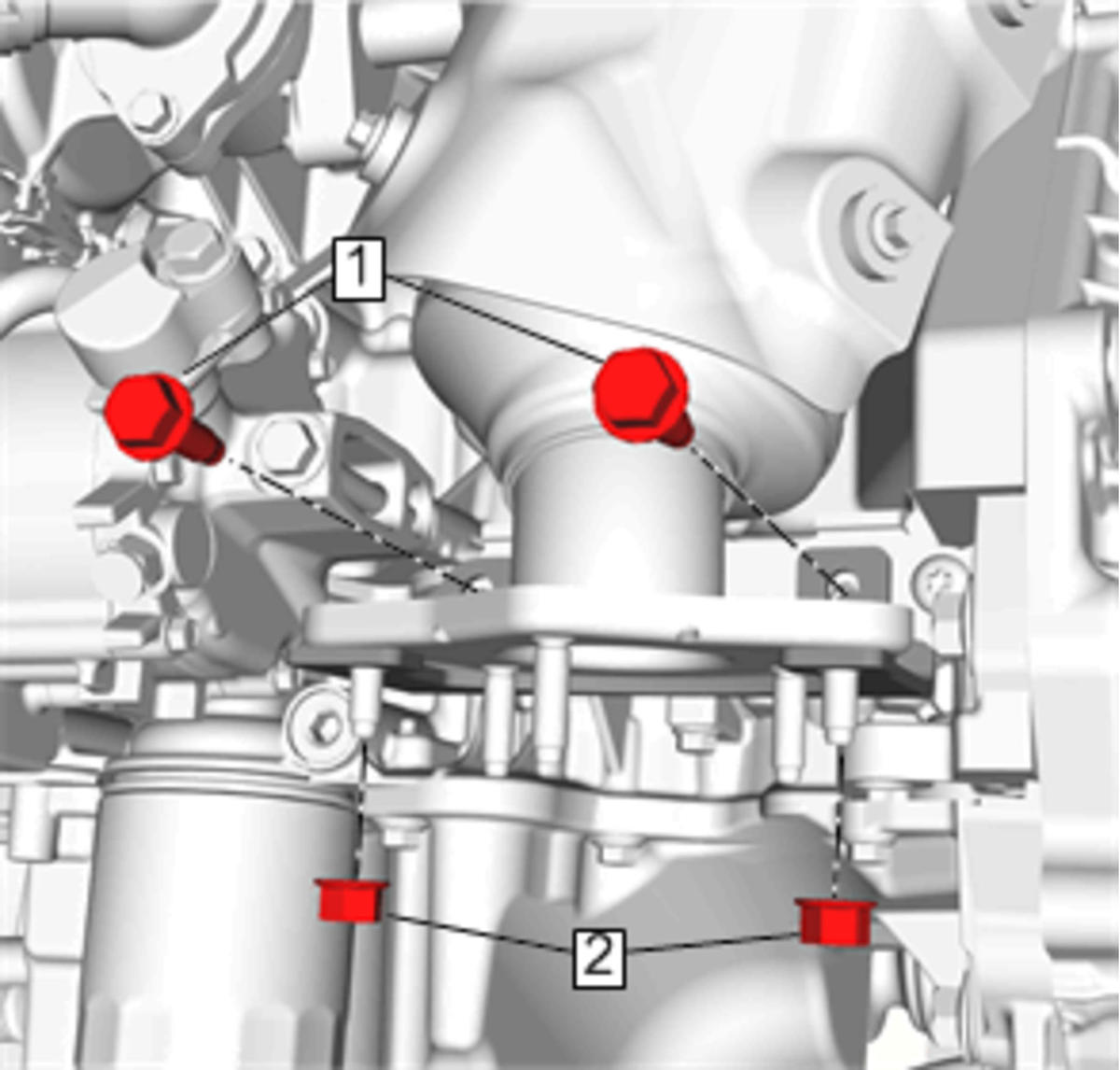

- Catalytic Converter Brace Nut (2) - Install and tighten [2x] 22 N.m (16 lb ft)
- Catalytic Converter Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Exhaust Muffler - Install - Exhaust Muffler Replacement (L5Q) Exhaust Muffler Replacement (LV7)
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle
