Exhaust Rear Muffler

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

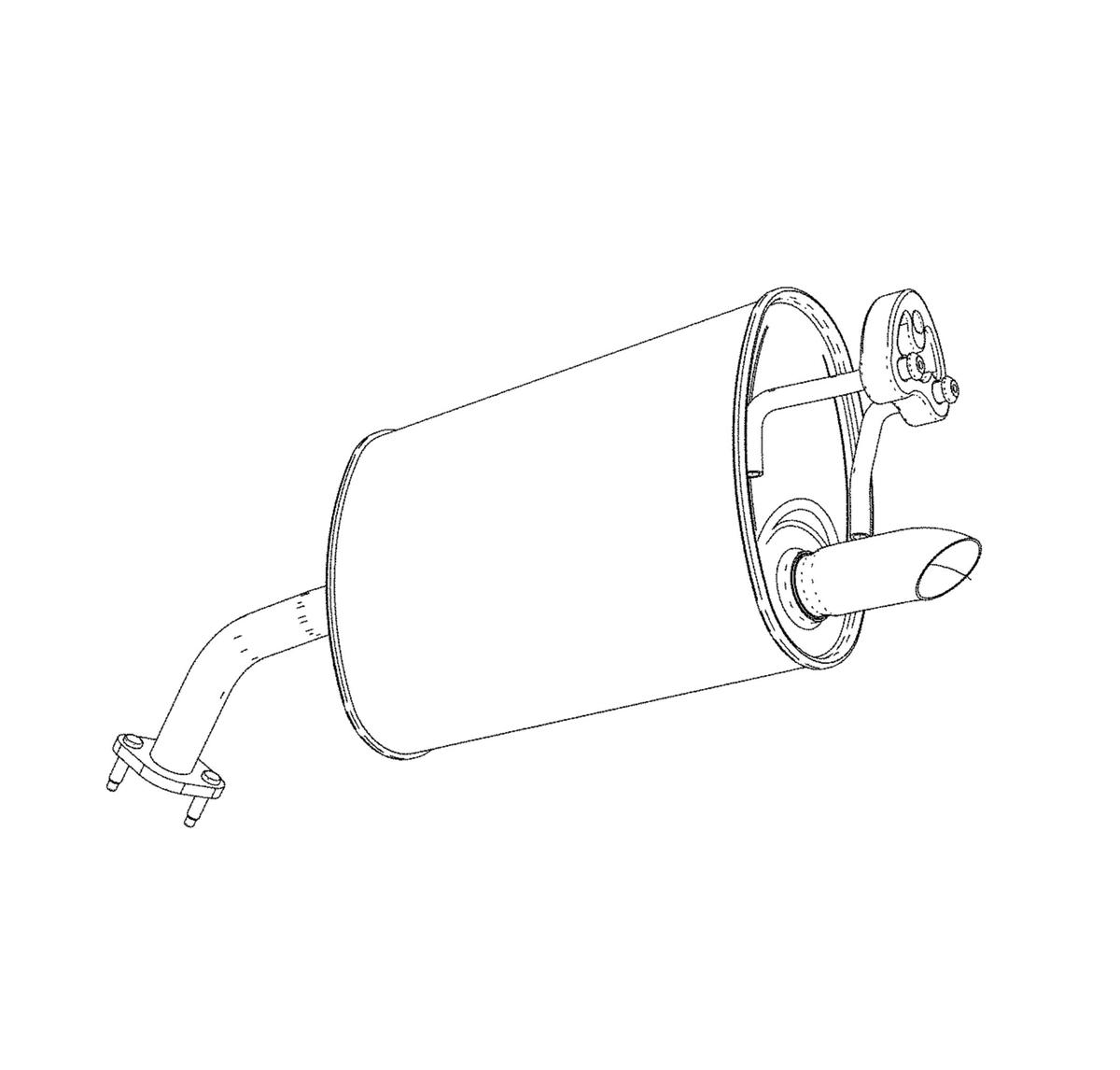

Fig 1: Exhaust Rear Muffler
GM2308895Courtesy of GENERAL MOTORS COMPANY

The rear muffler is to reduce broad band engine exhaust noise. It is comprised of a series of perforated tubes and baffles to break up the sound waves and reflect them. It is made of stainless steel to protect the front muffler from corrosion.
