Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the junction block base (2) to the inner wheelhouse stud.

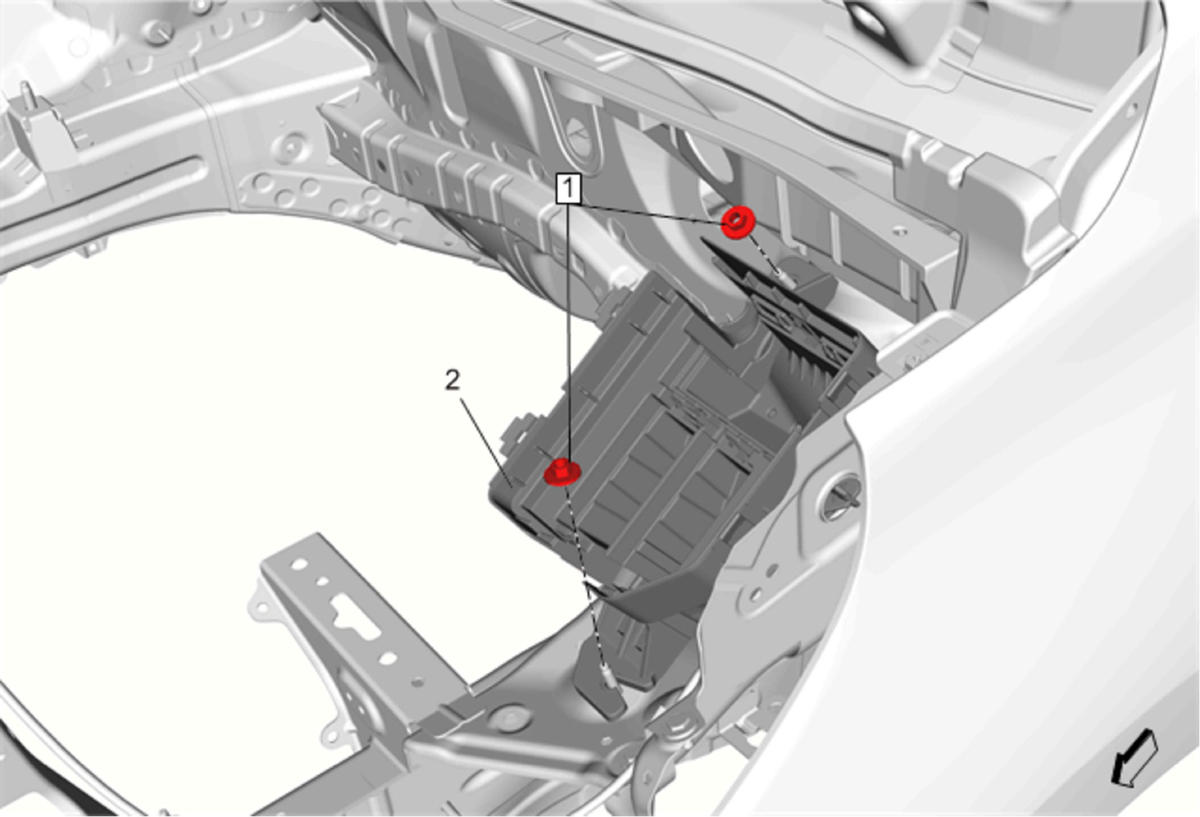

    Fig 1: Junction Block Nuts And Junction Block Base
    GM4059588Courtesy of GENERAL MOTORS COMPANY
  2. Install the junction block base nut (1) and tighten to 9 N.m (80 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the junction block (2) to the base.

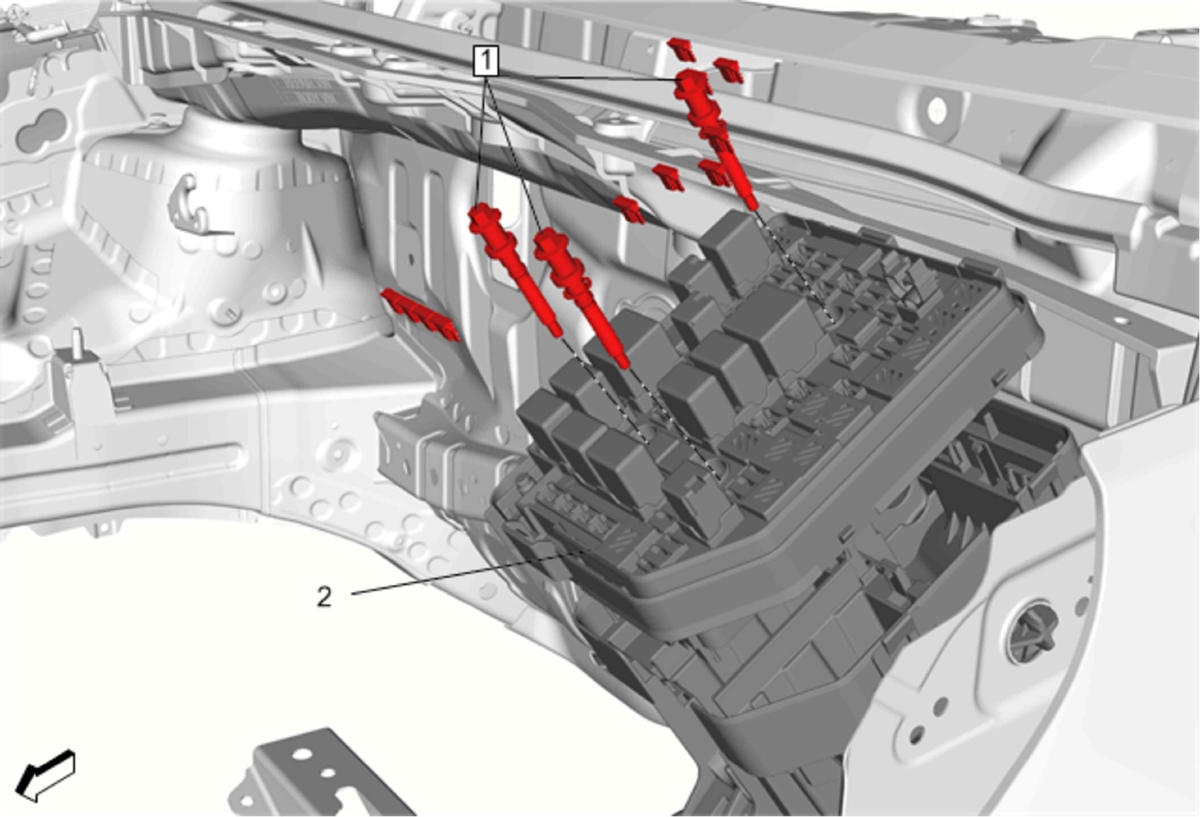

    Fig 2: Junction Block Bolts And Junction Block
    GM4059587Courtesy of GENERAL MOTORS COMPANY
  4. Install the junction block bolts (1) and tighten to 9 N.m (80 lb in).
  5. Position the positive battery cable to the junction block.

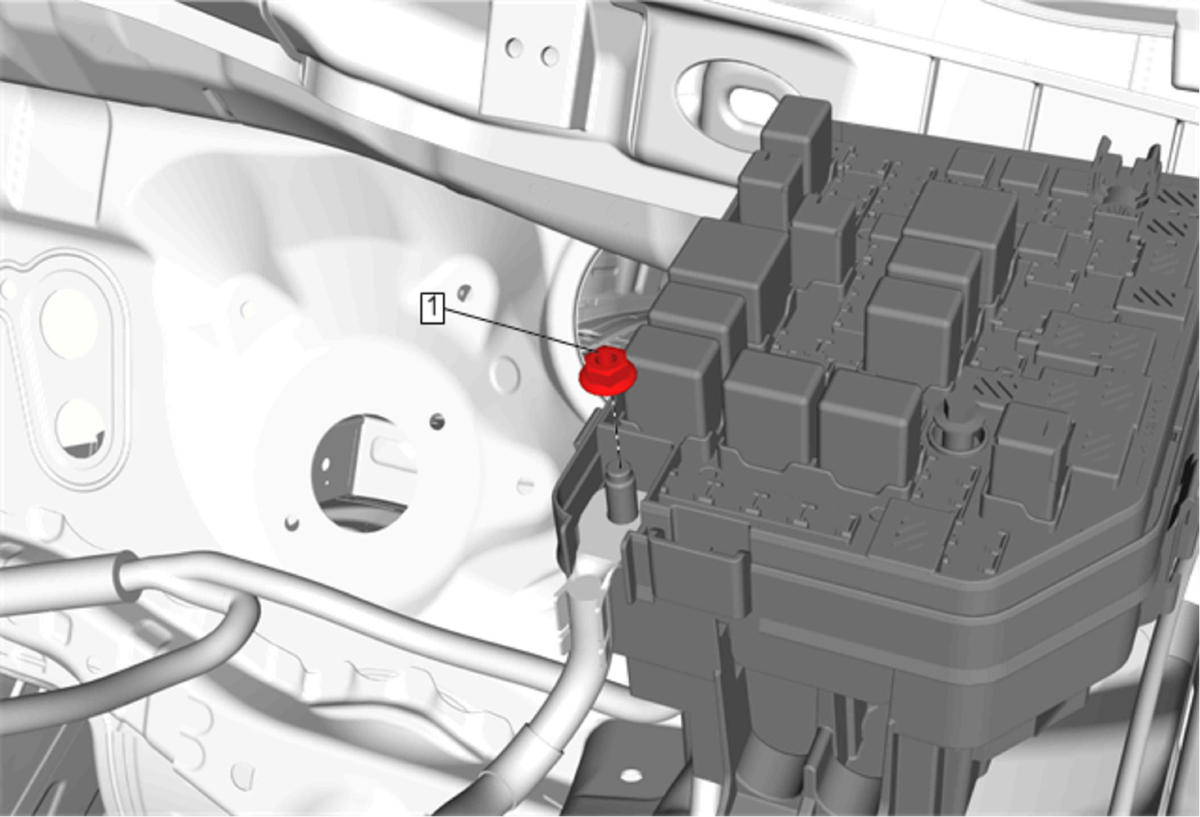

    Fig 3: Positive Battery Cable Nut
    GM4059585Courtesy of GENERAL MOTORS COMPANY
  6. Install the positive battery cable nut (1) and tighten to 5 N.m (44 lb in).
  7. Install the junction block cover (1).

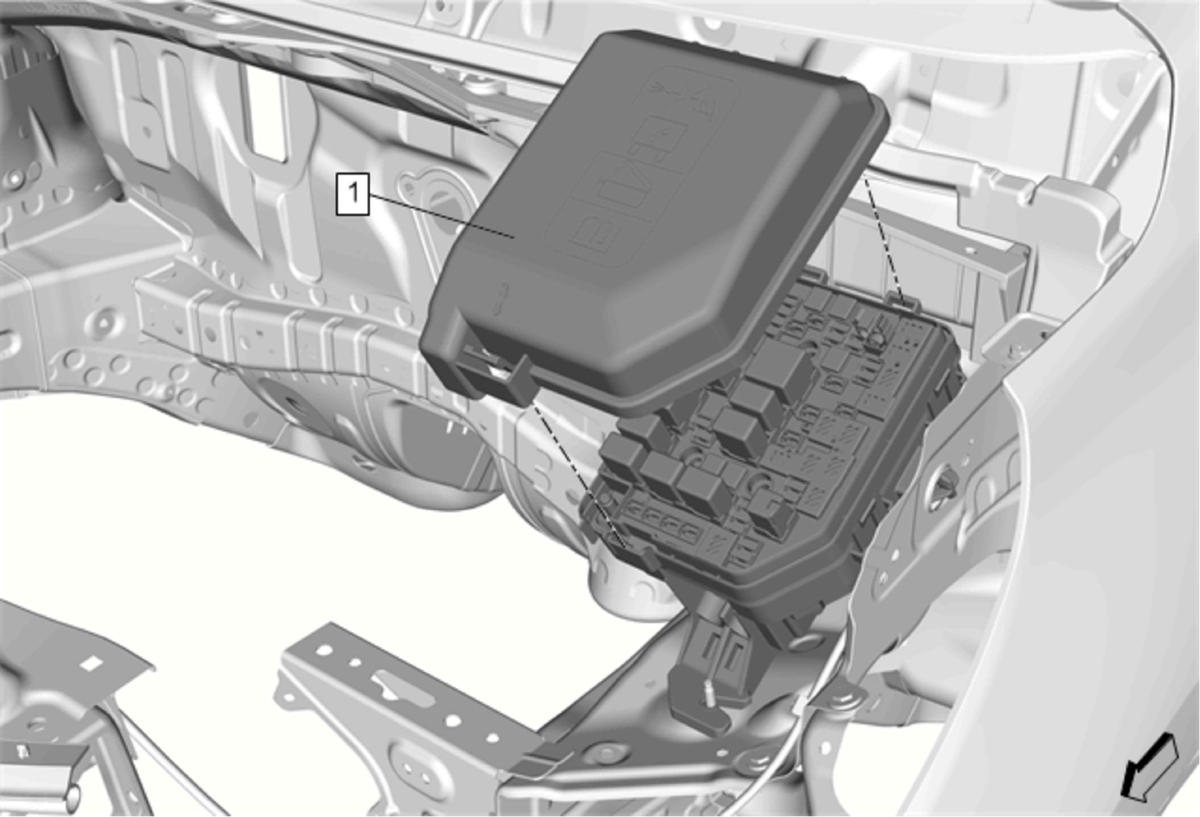

    Fig 4: Junction Block Cover
    GM4059584Courtesy of GENERAL MOTORS COMPANY
  8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
