Section 36 (Engine Controls And Fuel - 1.4L (LV7) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Power, Ground, Serial Data and MIL (L5Q/LV7)
Power, Ground, Serial Data and MIL (L5Q/LV7)
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

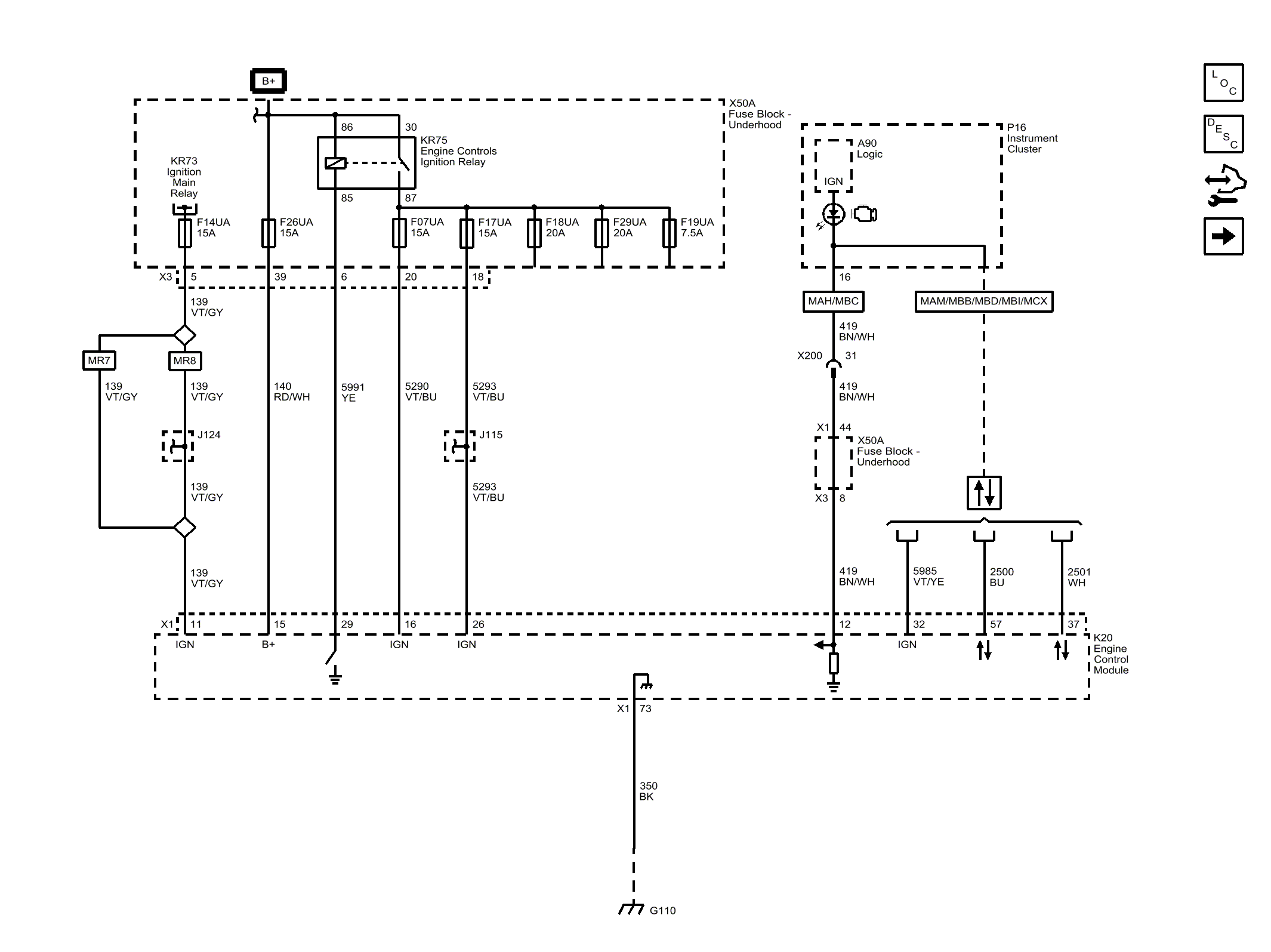

Fig 1: Power, Ground, Serial Data and MIL (L5Q/LV7)
Courtesy of GENERAL MOTORS COMPANY
