5V1, 5V2 and Low Reference Bus (L5Q/LV7) (1 of 2)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

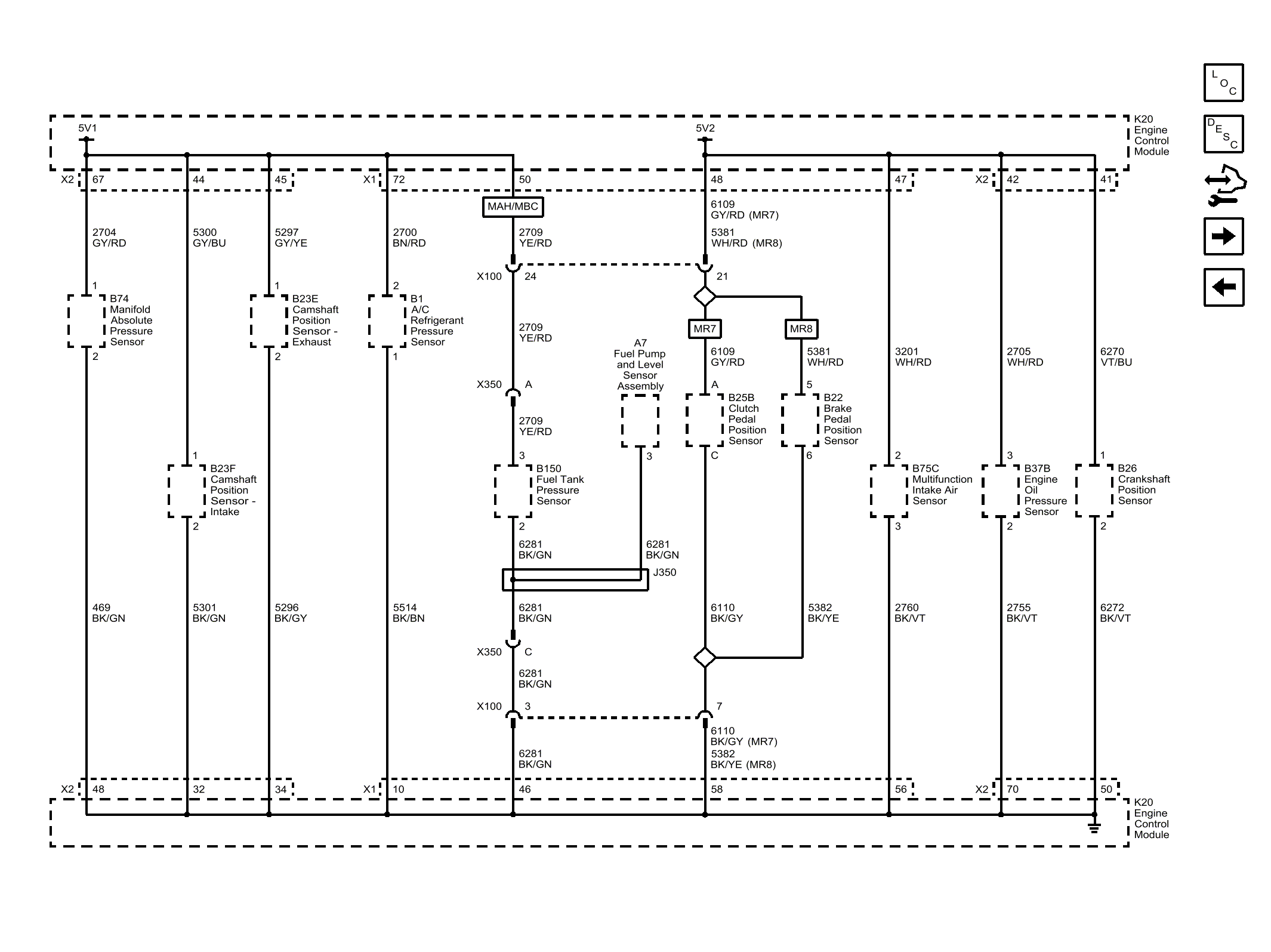

Fig 1: 5V1, 5V2 and Low Reference Bus (L5Q/LV7) (1 of 2)
GM4322524Courtesy of GENERAL MOTORS COMPANY
