Sunroof Window Motor Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

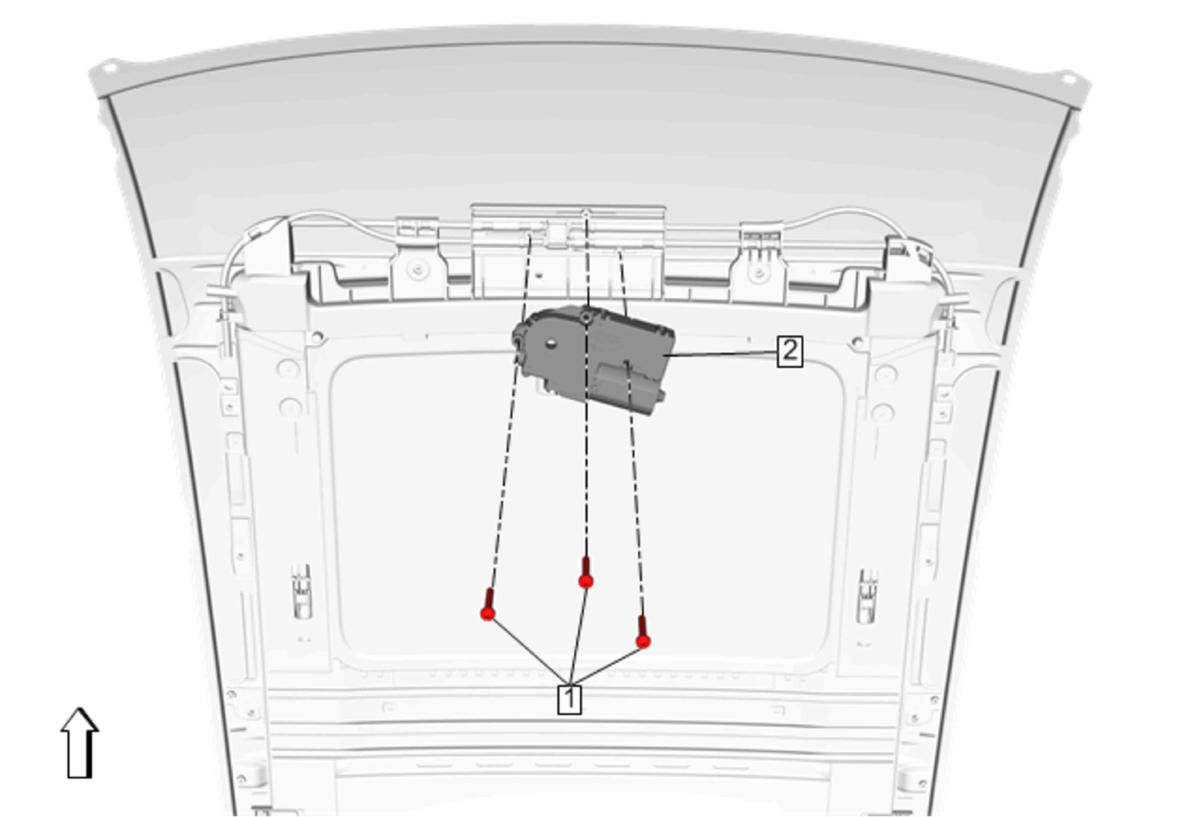

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the headliner. Refer to Headlining Trim Panel Replacement |
|
| 1 | Sunroof Window Motor Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Procedure Disconnect the electrical connector. Tighten 6 N.m (53 lb in) |
| 2 | Sunroof Window Motor Procedure After repairs or replacement, the sunroof motor needs to be initialization/teach process. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
NOTE:
Verify the operation of the sunroof motor before installing the roof console.
|
