Sunroof Switch Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

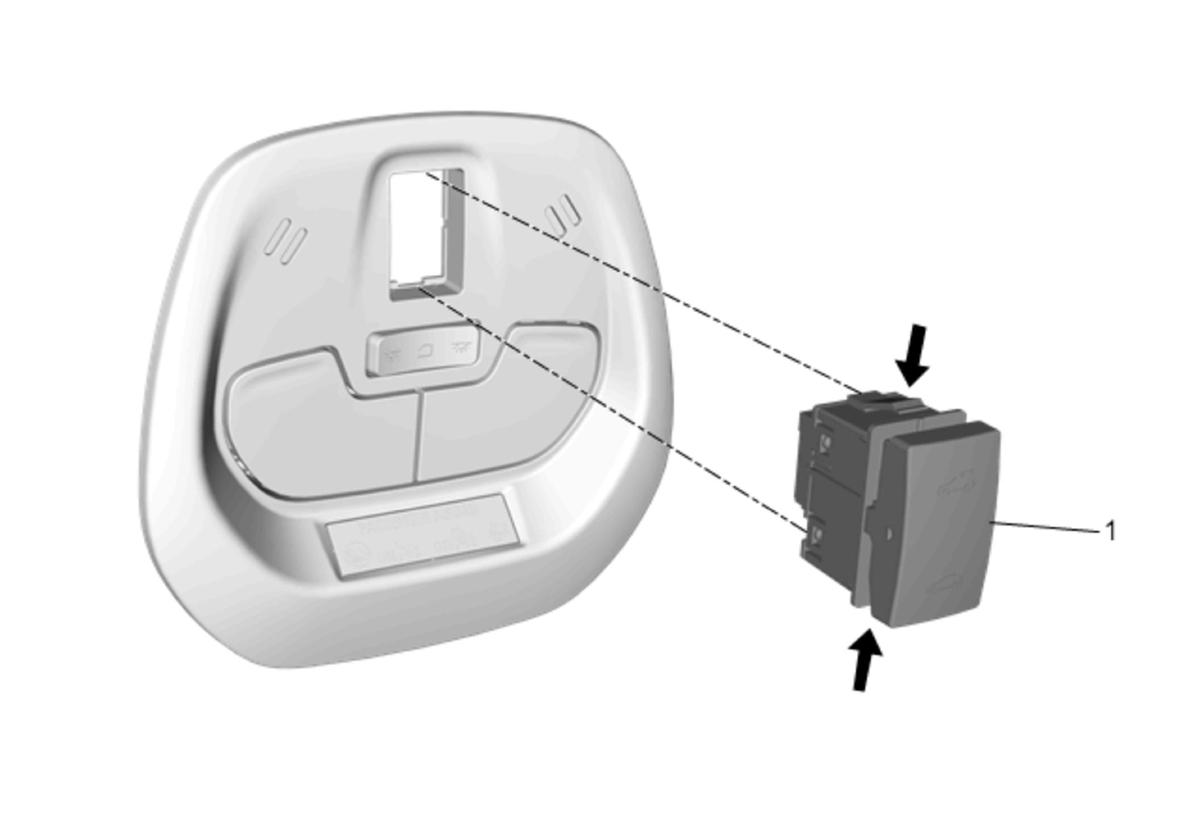

Fig 1: Sunroof Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center reading and courtesy lamp. Refer to Center Reading and Courtesy Lamp Replacement.
1	Sunroof Switch Procedure Disconnect electrical connector. Depress tabs to release switch.

Callout

Component Name

Preliminary Procedures
Remove the center reading and courtesy lamp. Refer to Center Reading and Courtesy Lamp Replacement.

Sunroof Switch

Procedure

Disconnect electrical connector.
Depress tabs to release switch.
