Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

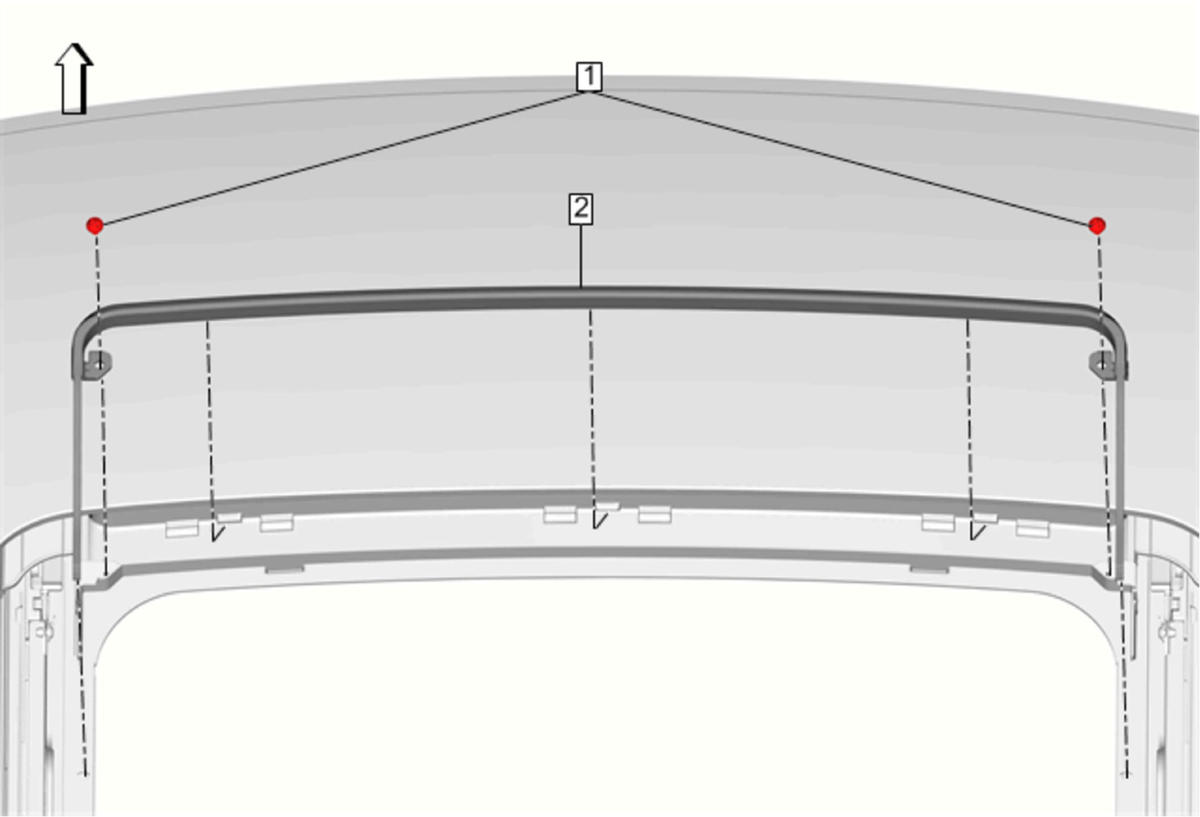

Fig 1: Sunroof Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Air Deflector Screw (Qty : 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Sunroof Air Deflector Procedure Open the sunroof window and sunshade to the full rear position. Use a suitable tool, unhook the front edge of the sunroof air deflector from the sunroof frame retainers. Unhook the wind bottom rod and wind deflector spring from the frame.

Callout

Component Name

Sunroof Air Deflector Screw (Qty : 2)

CAUTION: Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)

Sunroof Air Deflector

Procedure

Open the sunroof window and sunshade to the full rear position.
Use a suitable tool, unhook the front edge of the sunroof air deflector from the sunroof frame retainers.
Unhook the wind bottom rod and wind deflector spring from the frame.
